Jeep Wrangler U Joint Replacement: Step-by-Step Guide

The Jeep Wrangler is famous for its strength, off-road ability, and classic look. But even tough vehicles like the Wrangler have parts that wear out over time.

One small but important part is the U joint (universal joint). This part connects the driveshaft to the axles, letting them move smoothly while the suspension flexes.

When a U joint fails, you might hear clunking sounds, feel vibration, or even lose control of your Jeep. Replacing a U joint is a project many owners can tackle themselves with the right tools, a clear process, and some patience.

What Is A U Joint And Why Does It Matter?

The U joint is a cross-shaped part with needle bearings at each end. It allows the driveshaft to transfer power at different angles, which is crucial for a Wrangler’s suspension travel. Without a working U joint, your Jeep cannot move power from the transmission to the wheels reliably.

A worn U joint can cause:

• Vibration at certain speeds
• Clunking noises when shifting from drive to reverse
• Grease leaks near the driveshaft
• Driveshaft failure if ignored

For off-roaders, a failed U joint can leave you stranded far from help. Regular inspection and timely replacement are critical.

Signs Your Jeep Wrangler Needs A U Joint Replacement

Catching U joint problems early saves money and prevents bigger damage. Here are the most common warning signs:

1. Clunking Sound

You might notice a metallic clunk when you shift gears or move from a stop. This is the U joint moving with too much play.

2. Vibration While Driving

A bad U joint often causes vibration, especially at higher speeds. It feels like an out-of-balance tire, but does not go away after a tire rotation.

3. Visible Rust Or Grease

If you see rust around the U joint or notice grease leaking, the seals may be failing. Lack of lubrication is a fast track to failure.

4. Movement In The Driveshaft

When parked, try wiggling the driveshaft by hand. Any movement at the U joint (other than normal rotation) signals wear.

5. Squeaking Noise

A dry U joint often squeaks, especially at low speeds or when first starting out.

Ignoring these signs can lead to a broken driveshaft, which means a much bigger repair bill and possible damage to your transfer case or axles.

Tools And Parts Needed For Jeep Wrangler U Joint Replacement

Replacing a U joint is a hands-on job. Before you start, make sure you have these tools and parts ready:

Tools

• Socket set (including deep sockets)
• Wrenches
• Needle-nose pliers
• Hammer and punch
• U joint press tool or large C-clamp
• Flathead screwdriver
• Grease gun (if using greaseable U joints)
• Safety glasses and gloves
• Jack and jack stands
• Torque wrench

Parts

• Replacement U joint(s) – check your Wrangler’s year and model for the right size
• New snap rings or C-clips (usually included with new U joints)
• High-quality grease

A tip many beginners miss: Buy two U joints, even if only one is bad. The other will likely fail soon, and it’s more efficient to replace both at once.

Step-by-step Guide: How To Replace A Jeep Wrangler U Joint

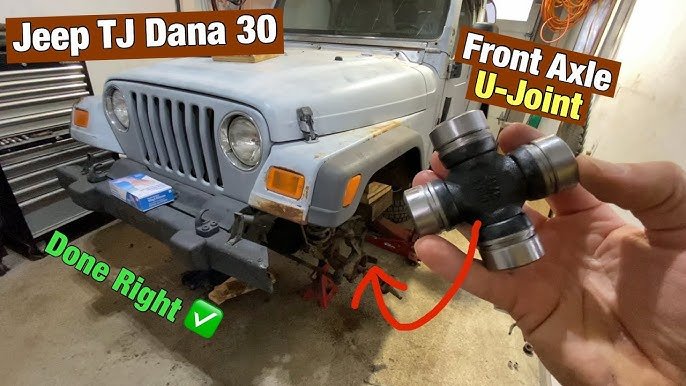

The following steps cover the most common U joint replacement on a Jeep Wrangler’s driveshaft. The process is similar for front axle U joints, but some details differ.

1. Prepare Your Jeep

• Park on a flat surface and engage the parking brake.
• Place wheel chocks behind the tires.
• Use a jack to lift the Jeep if needed, and always support it with jack stands.

2. Remove The Driveshaft

• Mark the driveshaft and flange with chalk or a marker. This keeps the driveshaft balanced when you re-install it.
• Use a socket or wrench to remove the bolts holding the driveshaft to the yoke.
• Carefully slide the driveshaft out. It may drop fluid, so have a catch pan ready.

3. Remove The Old U Joint

• Remove the snap rings or C-clips from the U joint caps using pliers.
• Use a U joint press tool, large socket and hammer, or a C-clamp to press out the U joint. Go slowly to avoid damaging the driveshaft yoke.
• Remove all four caps and set aside the old U joint.

4. Install The New U Joint

• Clean the yoke ends and check for cracks or wear.
• Insert the new U joint in place, making sure the needle bearings stay inside the caps.
• Press the new caps into the yoke using the press tool or C-clamp.
• Install new snap rings or clips to lock the caps in place.

5. Reinstall The Driveshaft

• Align the marks you made earlier.
• Bolt the driveshaft back into position. Tighten bolts to the specified torque using a torque wrench (usually around 80-90 ft-lbs for yoke bolts, but check your Jeep’s manual).
• Grease the new U joint if it has a grease fitting.

6. Test Drive And Inspect

• Lower the Jeep and remove jack stands.
• Drive at low speed, listen for any unusual noises, and check for vibration.
• After a short drive, inspect the U joint for any movement or leaks.

Insight: Many beginners forget to mark the driveshaft before removal. This can cause vibration if the driveshaft is not reinstalled in the exact same orientation. Also, never reuse the old snap rings—they can break and cause U joint failure.

Table: Common U Joint Types For Jeep Wrangler

Here’s a quick comparison of popular U joint types used in Wrangler models:

Choose a greaseable U joint if you do a lot of water crossings or mudding. Greaseable types last longer in harsh environments.

How Often Should You Replace Jeep Wrangler U Joints?

There’s no set mileage for U joint replacement, as it depends on driving style and conditions. Most Jeep owners report U joints lasting between 60,000 and 100,000 miles under normal use. Heavy off-roading, water crossings, or large tires can shorten this life. Check your U joints every oil change if you use your Jeep hard.

Tip: If you hear any new noises or feel vibration, inspect the U joints immediately. Early replacement is always cheaper than waiting for a breakdown.

Cost Of Jeep Wrangler U Joint Replacement

U joint replacement is affordable if you do it yourself. Here’s a quick look at the costs:

You can save $100 or more per joint by doing the work yourself. But if you don’t have the right tools or are not comfortable, a professional is a smart choice.

Common Mistakes When Replacing Jeep Wrangler U Joints

Many DIYers make errors that can lead to early failure or extra work. Avoid these common mistakes:

• Not cleaning the yoke properly before installing the new U joint. Dirt or old grease can cause poor fit.
• Using a hammer only to pound out the U joint. This can bend the yoke. Always use a press or C-clamp if possible.
• Mixing up the orientation of the driveshaft. Always mark the shaft and yoke before removal.
• Over-tightening U joint bolts. This can damage the threads or warp parts. Use a torque wrench.
• Failing to grease a greaseable U joint after installation. Dry bearings wear out quickly.

Insight: If your Jeep sees a lot of water, mud, or snow, check the U joints more often. Water can wash grease out quickly, leading to rust and fast failure.

Choosing The Right Replacement U Joint

With many brands and types available, picking the best U joint for your Wrangler matters. Consider these factors:

1. Material

Chromoly steel U joints are stronger than basic steel and are best for lifted or heavily used Jeeps.

2. Greaseable Vs. Non-greaseable

Greaseable types allow you to add grease and flush out dirt, but have a tiny hole that can be a weak point under severe stress. Non-greaseable types are sealed and sometimes last longer in daily driving.

3. Brand Reputation

Stick with known brands like Spicer, Moog, or Dana. Cheap, no-name U joints may fail quickly.

4. Fitment

Check your Wrangler’s year, model, and driveshaft style. A TJ, JK, or JL may use different U joints. Many online guides or your local parts store can help.

5. Warranty

Some brands offer lifetime warranties. This can save money if you plan to keep your Jeep for years.

Table: Comparison Of Popular U Joint Brands

Below is a quick brand comparison for Jeep Wrangler U joints:

Safety Tips And Final Checks

Replacing a U joint is not hard, but safety comes first:

• Always use jack stands—never trust only a jack.
• Wear safety glasses when removing and installing U joints.
• Double-check your work before driving. A loose driveshaft can be dangerous.

After installation, check for leaks, odd noises, or vibration. If you feel anything unusual, recheck your work. If in doubt, ask a mechanic to inspect it.

Where To Find More Help

If you’re new to car work, many Wrangler forums and YouTube channels offer step-by-step guides with photos and videos. The factory service manual for your Jeep is also a great resource. For detailed specs and more background on U joints, the Wikipedia Universal Joint page gives a deep technical dive.
