Getting the perfect beam from your Jeep Wrangler headlights is more than a detail—it’s about safety, visibility, and driving confidence. Over time, headlights can get misaligned because of rough roads, minor bumps, or even after replacing bulbs.
If your Wrangler’s headlights aren’t aimed properly, you could blind oncoming drivers or struggle to see the road. Many drivers don’t realize how simple it can be to adjust headlights themselves, saving both time and money.
This guide covers everything you need to know to adjust your Jeep Wrangler headlights like a pro and ensure your night drives are safer and more comfortable.
Why Headlight Adjustment Matters
Proper headlight alignment isn’t just about seeing better—it’s also about not dazzling others. If the beams are too high, you risk blinding other drivers. If they’re too low, your own visibility suffers, especially on dark, unlit roads. Misaligned headlights can also lead to failed vehicle inspections in some states. In fact, the National Highway Traffic Safety Administration (NHTSA) notes that poor lighting plays a role in many nighttime accidents. Keeping your Jeep’s headlights aimed correctly is a small task with a big impact.
Tools And Preparation
Before you start, gather a few simple tools and set up your workspace:
- Phillips or flathead screwdriver (depending on your Wrangler’s model year)
- Tape measure
- Masking tape
- Level surface (garage floor or flat driveway)
- Blank wall (at least 25 feet from your Jeep)
- Owner’s manual (for reference)
Make sure your Wrangler’s tires are properly inflated, and there’s an average load inside—meaning your usual cargo and a half-full fuel tank. This ensures the Jeep sits at its normal ride height, giving you an accurate adjustment.
Jeep Wrangler Headlight Types And Adjustment Mechanisms
Different Jeep Wrangler generations use different headlight designs and adjustment mechanisms. Here’s a quick comparison:
| Model | Headlight Type | Adjustment Method |
|---|---|---|
| JK (2007–2018) | Halogen/LED | Manual screws (vertical/horizontal) |
| JL (2018+) | Halogen/LED | Manual screws (vertical only) |
| TJ (1997–2006) | Sealed beam | Manual screws (vertical/horizontal) |
Non-obvious insight: Many aftermarket headlights for Wranglers (especially LEDs) have different adjustment screws or may require adapters. Always check the instructions that came with your specific headlights.
Step-by-step Headlight Adjustment Guide
Adjusting your Jeep’s headlights takes about 30–45 minutes. Here’s how to do it:
1. Find A Suitable Adjustment Spot
- Park your Jeep on a flat surface facing a blank wall or garage door.
- The wall should be at least 25 feet from the front of your headlights.
- Make sure the Jeep is loaded as it would be during normal driving.
2. Mark The Headlight Centers
- Turn on your low beams.
- Use masking tape to mark the horizontal and vertical center of each beam on the wall. The brightest part of the beam (“hot spot”) should be your center point.

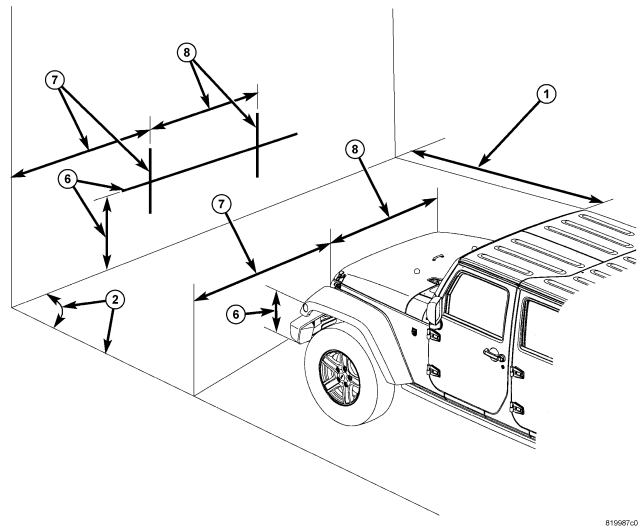

3. Measure And Mark Adjustment Lines
- Measure from the ground to the center of your headlight on the Jeep. Mark this height on the wall for both lights using masking tape.
- Measure 25 feet straight back from the wall and park the Jeep at that distance.
- Mark a horizontal line on the wall 2–3 inches below the headlight center marks—this is your target line.
Tip: For most Wranglers, the top edge of the low beam should rest on or just below this line.

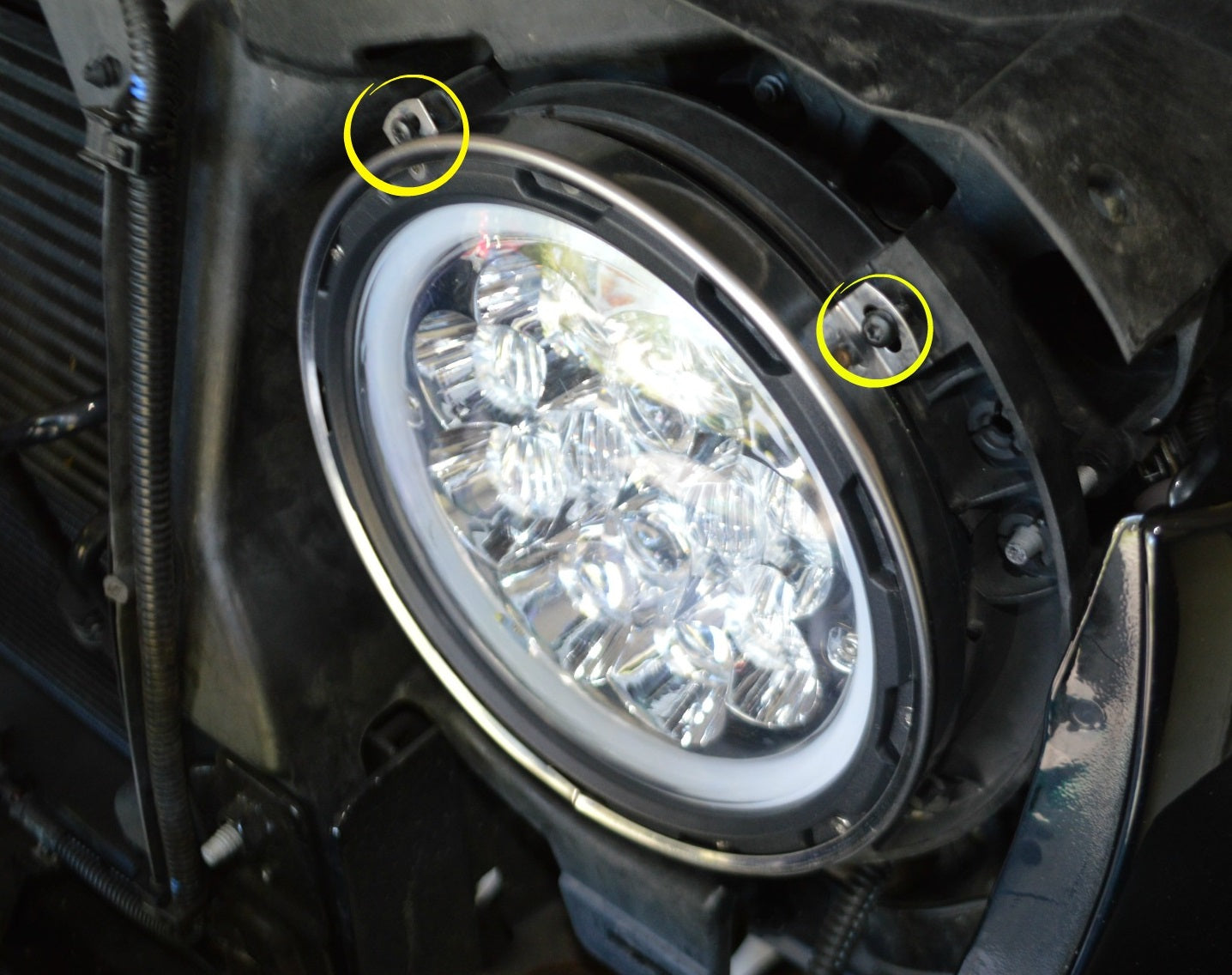

4. Locate The Adjustment Screws
- Open the hood and look behind each headlight.
- For JK and JL models, you’ll usually find vertical adjustment screws on top or to the side of the headlight housing. Some TJs have both vertical and horizontal screws.
- Insert your screwdriver into the adjustment screw slot.
5. Adjust The Beams
- Turn the screw clockwise to raise the beam, or counterclockwise to lower it.
- Adjust until the top edge of the brightest part of the beam is level with your marked line.
- For models with horizontal adjustment, align the beam so the hot spot is directly in front of the headlight (not pointing left or right).
6. Double-check Both Lights
- Make sure both headlights are even and not crossing over each other.
- Sit in the driver’s seat and check the wall to confirm alignment.
- Test with both low and high beams to ensure good coverage.
Practical tip: Recheck your adjustments after a short test drive, especially if you often drive with extra gear or passengers.
Common Mistakes And How To Avoid Them
Many Jeep owners unknowingly make small errors that can lead to poor headlight performance. Here’s what to watch for:
- Not using a level surface: Even a slight slope can throw off your measurements by several inches at 25 feet.
- Adjusting with an empty Jeep: A fully loaded Jeep sits lower, changing your headlight aim. Always adjust with a normal load.
- Ignoring aftermarket upgrades: LED or HID upgrades may have a different beam pattern and adjustment points.
- Forgetting to check both beams: High and low beams should be checked, as some headlight assemblies move both together.
- Over-tightening adjustment screws: This can break plastic parts or strip screws, making future adjustments harder.
Non-obvious insight: Headlight aim can shift over time due to suspension changes, tire upgrades, or even after a tire rotation or alignment. If you notice your lighting seems “off,” it’s worth checking alignment again.
Real-world Example: Before And After
To show how much difference adjustment makes, here’s a simple comparison:
| Before Adjustment | After Adjustment |
|---|---|
| – Dark spots on road – Light shines up into trees – Oncoming drivers flash their lights |
– Even road illumination – Light pattern stays below other drivers’ windshields – No complaints or flashing from others |
Many owners report feeling more confident on winding back roads and during rain after adjusting their headlights.
When To Adjust Your Jeep Wrangler Headlights
You don’t need to adjust your headlights every week, but there are times when a check makes sense:
- After replacing headlight bulbs or the entire assembly
- After a lift kit installation or significant suspension work
- After changing tire size (bigger tires can tilt your Jeep)
- If you get flashed by oncoming traffic often
- After an accident, even a minor fender-bender
A quick adjustment check can make a big difference in safety and comfort.
Upgrading Vs. Adjusting: What Really Matters?
Many Jeep owners upgrade to brighter LED or HID headlights, but even the best lights won’t help if they’re aimed wrong. Here’s a quick comparison of the effect of adjustment versus upgrading:
| Action | Impact on Visibility | Cost |
|---|---|---|
| Proper Adjustment | High (safe, legal beam) | $0 (DIY) |
| Upgrade to LEDs without adjusting | Medium/Low (scatter, glare) | $100–$500+ |
| Upgrade and adjust | Very High (maximum clarity) | $100–$500+ |
Key takeaway: Adjust first, upgrade second. Most owners are surprised how much factory headlights improve after a proper alignment.
Legal Requirements And Safety
Most states have specific regulations about headlight height and aim. For example, headlights must not shine above a certain height at a set distance. Check your local DMV or inspection requirements to avoid trouble. Misaligned headlights can lead to fines or failed safety checks.
Modern Wranglers (especially 2018+ JL models) have less horizontal adjustment due to DOT safety rules. If your Jeep carries heavy gear often, consider checking alignment every few months.
For more about U.S. headlight aiming laws, see the NHTSA’s official guidelines.
Expert Tips For Better Results
- Use a clean wall and measure carefully: Smudges or uneven surfaces can make marks hard to see.
- Aim for a slight right-side drop: In the U.S., the right (passenger) side beam should dip a bit to avoid blinding traffic and better light road signs.
- Don’t skip the test drive: Road bumps or different loads can change the aim. Always recheck after driving.
- Record your marks: Keep a note or photo of your adjustment marks for future reference.
- Consider professional help: If you’re unsure, many shops can check and adjust headlights quickly, often for a small fee.
Frequently Asked Questions
<!– wp:rank-math/faq-block {"questions":[{"id":"faq-question-5baf020c27f5","title":"How Often Should I Check My Jeep Wrangler’s Headlight Alignment?","content":"Check alignment at least once a year, or any time you replace bulbs, change suspension or tires, or notice poor night visibility. After off-roading or a fender bender, it’s smart to double-check.
“,”visible”:true},{“id”:”faq-question-40a7acdcfaa1″,”title”:”Can I Adjust My Headlights If I Have Aftermarket Led Or Hid Lights?”,”content”:”Yes, but adjustment screws and patterns may differ. Always follow the instructions from the light manufacturer and re-aim your beams after any upgrade.
“,”visible”:true},{“id”:”faq-question-a7fd9a9a23d6″,”title”:”What Distance Should I Park From The Wall For Accurate Adjustment?”,”content”:”The standard is 25 feet. This provides a realistic beam pattern and matches most U. S. legal requirements for headlight aim.
“,”visible”:true},{“id”:”faq-question-cbbe621ca0b1″,”title”:”Why Do My Headlights Still Seem Dim After Adjustment?”,”content”:”Dimming can be caused by dirty lenses, aging bulbs, or electrical issues. Clean your headlight covers, check bulb life, and inspect wiring if adjustment doesn’t help.
“,”visible”:true},{“id”:”faq-question-d60df22ed0c9″,”title”:”Is Professional Headlight Alignment Better Than Diy?”,”content”:”Professional shops use special tools for precise adjustment, but most Jeep owners can get excellent results at home. If you’re unsure, a shop visit can give peace of mind.
Getting your Jeep Wrangler headlights perfectly aimed isn’t just a small detail—it’s a major step toward safer, more enjoyable driving. With a few tools, some patience, and the right method, you can take control of your night vision and drive with more confidence wherever the road takes you.
“,”visible”:true}]} –>How Often Should I Check My Jeep Wrangler’s Headlight Alignment?
Check alignment at least once a year, or any time you replace bulbs, change suspension or tires, or notice poor night visibility. After off-roading or a fender bender, it’s smart to double-check.
Can I Adjust My Headlights If I Have Aftermarket Led Or Hid Lights?
Yes, but adjustment screws and patterns may differ. Always follow the instructions from the light manufacturer and re-aim your beams after any upgrade.
What Distance Should I Park From The Wall For Accurate Adjustment?
The standard is 25 feet. This provides a realistic beam pattern and matches most U. S. legal requirements for headlight aim.
Why Do My Headlights Still Seem Dim After Adjustment?
Dimming can be caused by dirty lenses, aging bulbs, or electrical issues. Clean your headlight covers, check bulb life, and inspect wiring if adjustment doesn’t help.
Is Professional Headlight Alignment Better Than Diy?
Professional shops use special tools for precise adjustment, but most Jeep owners can get excellent results at home. If you’re unsure, a shop visit can give peace of mind.
Getting your Jeep Wrangler headlights perfectly aimed isn’t just a small detail—it’s a major step toward safer, more enjoyable driving. With a few tools, some patience, and the right method, you can take control of your night vision and drive with more confidence wherever the road takes you.
