If you own a Jeep TJ (1997–2006), understanding the tail light wiring diagram can help you fix electrical issues, upgrade to LED lights, or simply keep your rig street legal. Many Jeep owners are surprised by how often tail light problems are caused by simple wiring issues, not faulty lights.
This guide breaks down the Jeep TJ tail light wiring diagram in clear language, so you can confidently handle wiring repairs and upgrades.
Why The Jeep Tj Tail Light Wiring Matters
Tail lights are a key safety feature. They signal your intentions to other drivers, especially at night or in bad weather. In the Jeep TJ, the tail light wiring controls not only the tail lights, but also the brake lights, turn signals, and reverse lights. A wiring problem in this system can cause lights to flicker, not work at all, or even blow fuses.
Many Jeep owners try to fix tail light problems by swapping bulbs, but the root cause is often a loose connection, corroded socket, or wrong wiring after a modification. Knowing the wiring diagram helps you trace and fix these issues quickly.
Jeep Tj Tail Light Wiring Diagram Overview
The Jeep TJ uses a simple 5-wire system at the tail light connector:
- Tail/Running Light (Black/Yellow)
- Left Turn/Brake (Light Green/Red – driver side)
- Right Turn/Brake (Brown/Red – passenger side)
- Reverse Light (White/Black)
- Ground (Black)
Here’s a visual comparison of the main wire colors and their functions:
| Wire Color | Function | Location |
|---|---|---|
| Black/Yellow | Tail/Running Light | Both Sides |
| Light Green/Red | Left Turn/Brake | Driver Side |
| Brown/Red | Right Turn/Brake | Passenger Side |
| White/Black | Reverse Light | Both Sides |
| Black | Ground | Both Sides |
Each tail light assembly has its own connector, but the wire colors are usually the same on both sides. Always check your Jeep’s year and wiring colors, since some export models may be different.
Step-by-step: How To Read And Use The Diagram
Fixing or upgrading tail lights starts with knowing where each wire goes. Here are the basic steps:
- Disconnect the battery before working on wiring to avoid shorts.
- Remove the tail light assembly by unscrewing the lens and unplugging the connector.
- Identify each wire using the color codes above. You can use a multimeter to confirm each wire’s function.
- For repairs, look for broken wires, corroded sockets, or melted insulation.
- For upgrades (like LED tail lights), match the new light wires to the Jeep’s wiring by function, not just color.
If you mix up the turn signal and brake wires, the lights will not work correctly. Always double-check the wiring before finishing the job.
Common Jeep Tj Tail Light Wiring Problems
Even with a simple system, the Jeep TJ tail lights can develop issues. These are the most frequent problems:
- Flickering or dim lights: Often caused by a bad ground connection. Check the black ground wire for rust or loose bolts.
- No tail lights: A blown fuse, broken Black/Yellow wire, or a failed switch can be the cause.
- Turn signal not working: Usually a bad connection at the Light Green/Red (driver) or Brown/Red (passenger) wire.
- Reverse lights out: Broken White/Black wire or a faulty reverse switch.
Here’s a quick comparison of symptoms and likely causes:
| Problem | Possible Cause | Quick Fix |
|---|---|---|
| Flickering tail light | Bad ground wire | Clean ground, tighten bolt |
| No brake light | Broken turn/brake wire | Repair or replace wire |
| Reverse light stays on | Shorted wire | Check for melted insulation |
A non-obvious insight: The Jeep TJ’s tail light ground often corrodes where it bolts to the body. Cleaning this connection solves many problems. Also, after-market LED tail lights sometimes need resistors to function with the original wiring, or the turn signals may blink too fast.

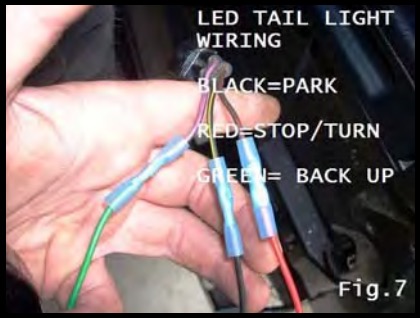

Upgrading To Led Tail Lights
Many Jeep TJ owners want to switch to LED tail lights for brighter light and longer life. Here’s what you need to know:
- LEDs draw less power, which can confuse the Jeep’s flasher relay and cause fast-blink signals.
- You may need to install load resistors or an LED-compatible relay.
- Always match each LED wire to the correct Jeep wire by function.
- If your new lights have extra wires (like for a side marker), connect only the ones you need.
Connecting LEDs incorrectly can blow fuses or damage the lights. Double-check wiring and test each function before putting the lens back.
Practical Tips For Diy Wiring
- Use a multimeter to test for power and ground before replacing bulbs.
- Solder connections and use heat-shrink tubing for best durability.
- Always check the fuse before chasing wiring problems.
- Label wires with tape during upgrades, so you don’t forget which is which.
- If you tow a trailer, use a proper wiring harness made for the Jeep TJ.
A common mistake is using household electrical connectors. Always use automotive-grade parts for weather resistance.
Jeep Tj Tail Light Wiring: Real-world Example
Suppose your left tail light is out, but the right works fine. You check the bulb—no problem. A multimeter shows no voltage at the socket. You trace the Light Green/Red wire and find it broken near the frame. Repairing this wire restores the brake and turn signal function.
This kind of problem is common after off-road use or rust.
Reliable Wiring Diagram Sources
To avoid confusion, always use wiring diagrams from trusted sources. The official Jeep service manual is best. If you need a reference, the JeepForum community offers many diagrams and advice from experienced Jeep owners.
Frequently Asked Questions
<!– wp:rank-math/faq-block {"questions":[{"id":"faq-question-be03ebf28615","title":"How Do I Find The Tail Light Ground On A Jeep Tj?","content":"The tail light ground wire is usually black and bolts to the Jeep’s body near the tail light housing. Look for a screw or bolt with a wire attached to bare metal. Clean off any rust for a better connection.
“,”visible”:true},{“id”:”faq-question-035619fe8a10″,”title”:”What Fuse Controls The Jeep Tj Tail Lights?”,”content”:”The tail light fuse is in the fuse box behind the glove box. Check the owner’s manual for the exact location, but it’s usually a 15-amp fuse labeled “TAIL” or “PARK.”
“,”visible”:true},{“id”:”faq-question-fac603d4b80c”,”title”:”Can I Wire Aftermarket Tail Lights To My Jeep Tj?”,”content”:”Yes, but match each function wire (tail, turn, brake, reverse, ground) from the new light to the correct Jeep wire. Some aftermarket lights use different color codes, so check the instructions.
“,”visible”:true},{“id”:”faq-question-7ee6e3c54dd0″,”title”:”Why Do My New Led Tail Lights Blink Too Fast?”,”content”:”LED lights draw less power, which can make the flasher relay think a bulb is out. You’ll need to add load resistors or replace the relay with an LED-compatible model.
“,”visible”:true},{“id”:”faq-question-9bfc429edd7d”,”title”:”Is It Safe To Repair Tail Light Wires With Electrical Tape?”,”content”:”Electrical tape is a temporary fix. For long-term reliability, solder the wire and cover it with heat-shrink tubing or use waterproof crimp connectors.
A clear wiring diagram and careful matching of wire colors will make your Jeep TJ’s tail lights reliable and bright—whether you’re keeping things stock or going for a custom look.
“,”visible”:true}]} –>How Do I Find The Tail Light Ground On A Jeep Tj?
The tail light ground wire is usually black and bolts to the Jeep’s body near the tail light housing. Look for a screw or bolt with a wire attached to bare metal. Clean off any rust for a better connection.
What Fuse Controls The Jeep Tj Tail Lights?
The tail light fuse is in the fuse box behind the glove box. Check the owner’s manual for the exact location, but it’s usually a 15-amp fuse labeled “TAIL” or “PARK.”
Can I Wire Aftermarket Tail Lights To My Jeep Tj?
Yes, but match each function wire (tail, turn, brake, reverse, ground) from the new light to the correct Jeep wire. Some aftermarket lights use different color codes, so check the instructions.
Why Do My New Led Tail Lights Blink Too Fast?
LED lights draw less power, which can make the flasher relay think a bulb is out. You’ll need to add load resistors or replace the relay with an LED-compatible model.
Is It Safe To Repair Tail Light Wires With Electrical Tape?
Electrical tape is a temporary fix. For long-term reliability, solder the wire and cover it with heat-shrink tubing or use waterproof crimp connectors.
A clear wiring diagram and careful matching of wire colors will make your Jeep TJ’s tail lights reliable and bright—whether you’re keeping things stock or going for a custom look.
