If your Jeep JK is starting to overheat, make a whining noise, or leak coolant, the water pump could be failing. The water pump is critical for cooling your engine, and a faulty one can leave you stranded.
Replacing the water pump on a Jeep JK (2007–2018 Wrangler models) isn’t as complicated as it sounds, but a clear guide helps avoid mistakes. This article will walk you through symptoms, tools, step-by-step replacement, costs, and pro tips, so you can keep your Jeep running strong.
Signs Your Jeep Jk Water Pump Needs Replacement
A bad water pump usually gives you warnings before it fails completely. Look for these common symptoms:
- Coolant leaks under the engine, often near the front.
- High engine temperature or overheating, especially during slow driving.
- Whining or grinding noises from the engine area.
- Visible wobble in the water pump pulley.
- Low coolant level with no obvious leaks elsewhere.
Ignoring these signs can damage your engine. Always check for these issues if your Jeep’s temperature gauge rises unexpectedly.
Tools And Parts You’ll Need
Before starting, gather these essential items:
- New water pump (make sure it fits your Jeep JK’s year and engine)
- Fresh coolant (check your manual for type and amount)
- Socket wrench set (metric)
- Screwdrivers
- Drain pan
- Gasket scraper or razor blade
- Torque wrench
- Shop towels or rags
Optional but helpful:
- RTV silicone gasket sealer
- Gloves and safety glasses
Using the correct tools saves time and prevents damage to the new pump or engine parts.
Jeep Jk Water Pump Replacement: Step-by-step
Replacing the water pump on a Jeep JK is straightforward if you follow these steps closely.
1. Let The Engine Cool
Never open the cooling system when hot. Wait until everything is cool to the touch.
2. Drain The Coolant
Place a drain pan under the radiator. Open the radiator drain plug or remove the lower hose to let coolant flow out.
3. Remove Engine Cover And Belt
Take off the plastic engine cover (if present). Use a socket wrench to rotate the tensioner and slip the serpentine belt off the water pump pulley.
4. Disconnect Hoses And Remove Bolts
Loosen the hose clamps and pull off the hoses from the water pump. Remove the bolts securing the pump to the engine. Keep track of bolt locations—they may be different lengths.
5. Remove Old Water Pump
Gently pry the water pump off. Scrape off any old gasket material from the engine block—be careful not to scratch the surface.
6. Install New Water Pump
Place the new gasket (and RTV sealant if required) on the pump. Position the new pump and hand-tighten the bolts. Use a torque wrench to tighten bolts to your Jeep’s spec (usually around 20 ft-lbs).
7. Reconnect Hoses And Belt
Attach hoses and tighten clamps. Reinstall the serpentine belt, following the belt routing diagram under your hood.
8. Refill Coolant And Bleed System
Fill with new coolant. Start the engine and let it run with the radiator cap off to let air escape. Top off coolant as needed.
9. Check For Leaks And Test Drive
Look for leaks and listen for strange noises. Take a short drive, then recheck the coolant level.
Water Pump Replacement: Time And Difficulty
Most DIYers can complete this job in 2–3 hours. First-timers may take longer, especially if bolts are corroded or access is tight.
Cost Comparison: Diy Vs. Professional
How much does it cost to replace a Jeep JK water pump? Here’s a simple comparison:
| Replacement Method | Parts Cost | Labor Cost | Total Estimated Cost |
|---|---|---|---|
| DIY | $60–$120 | $0 | $60–$120 |
| Professional Shop | $90–$180 | $200–$350 | $290–$530 |
DIY saves money but requires patience and some mechanical skill. A shop will be faster and offer a warranty.

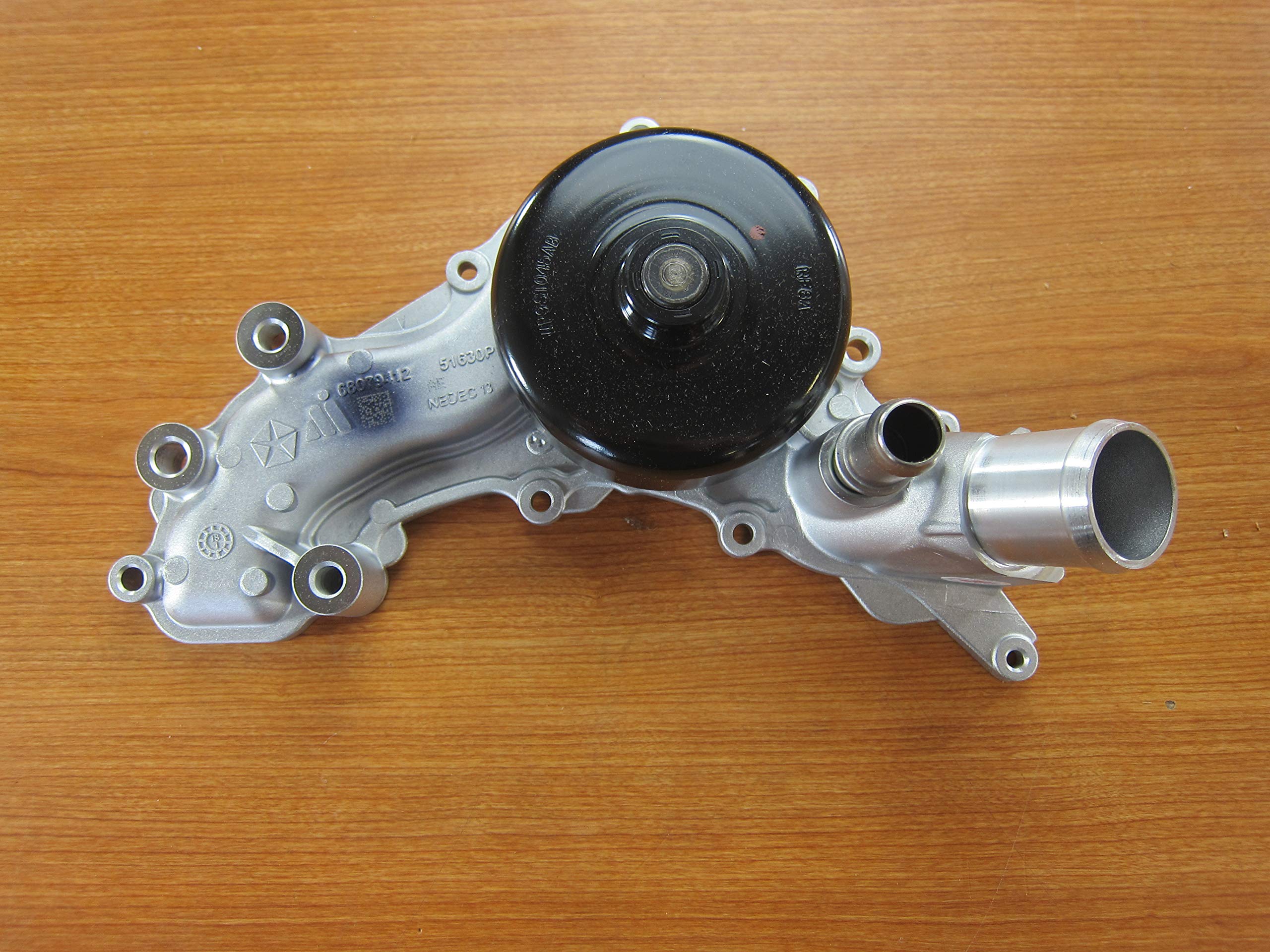

Choosing The Right Water Pump For Your Jeep Jk
Not all water pumps are equal. Here’s what to consider before you buy:
| Factor | Why It Matters |
|---|---|
| Engine Compatibility | Ensure the pump fits your specific Jeep JK year and engine size (3.6L or 3.8L V6) |
| Gasket Included | Some pumps come with a gasket, others don’t—missing gasket means extra trip to the store |
| Warranty | Longer warranty means better protection if the part fails early |
| Brand Reputation | Trusted brands usually offer better quality and fit |
Pro tip: Compare reviews and buy from a reputable retailer to avoid poor-quality aftermarket parts.
Common Mistakes To Avoid
Many first-time DIYers run into the same problems. Here’s how to steer clear:
- Forgetting to torque bolts: Overtightened bolts can crack the pump; undertightened ones cause leaks.
- Skipping gasket cleaning: Even a tiny bit of old gasket can cause leaks.
- Mixing coolant types: Always use the coolant recommended for your Jeep.
- Not bleeding air: Air pockets in the cooling system can lead to overheating.
- Ignoring other worn parts: Check the serpentine belt and tensioner while you’re there.
Real-world Example
A Jeep JK owner noticed coolant puddles after parking and a rising temperature gauge during summer. Replacing the water pump fixed the leak, stopped overheating, and the engine ran quieter. They also replaced the serpentine belt, preventing a future breakdown.
Extra Tips For Long Water Pump Life
- Use distilled water when mixing coolant to prevent mineral deposits.
- Check belt tension every oil change.
- Monitor coolant level monthly, especially after off-road trips.
- Listen for new noises after repairs.
- Replace the thermostat if your Jeep has over 100,000 miles—it’s inexpensive insurance against overheating.
When To Seek Professional Help
If you’re uncomfortable working with engine cooling parts, or if you lack the right tools, it’s smart to let a trusted mechanic handle the job. Water pump failure on the trail or highway can cause major engine damage, so don’t take chances if you’re unsure.
For more details and official Jeep service specifications, visit the Mopar official site.
Frequently Asked Questions
<!– wp:rank-math/faq-block {"questions":[{"id":"faq-question-9d01999663d2","title":"How Long Does A Jeep Jk Water Pump Usually Last?","content":"A Jeep JK water pump can last 60,000 to 100,000 miles. If you use quality coolant and replace worn belts, it may last longer.
“,”visible”:true},{“id”:”faq-question-49ad2cbcbd01″,”title”:”Can I Drive My Jeep Jk With A Leaking Water Pump?”,”content”:”It’s risky. Even a small leak can quickly turn into an overheat situation, possibly damaging your engine. Replace the pump as soon as possible.
“,”visible”:true},{“id”:”faq-question-a86ee8a8e168″,”title”:”What Coolant Type Is Best For The Jeep Jk?”,”content”:”Use HOAT (Hybrid Organic Acid Technology) coolant, which is usually orange or yellow. Never mix different coolant types.
“,”visible”:true},{“id”:”faq-question-37d7481f43d0″,”title”:”Do I Need To Replace The Thermostat With The Water Pump?”,”content”:”It’s not required, but it’s a good idea if your Jeep has over 100,000 miles or if you suspect heat issues. Thermostats are inexpensive and easy to replace during water pump service.
“,”visible”:true},{“id”:”faq-question-b58a359ae0a0″,”title”:”Is A Jeep Jk Water Pump Replacement A Good Diy Project?”,”content”:”Yes, for someone with basic tools and mechanical skills. If you follow instructions and take your time, it’s a manageable job and a great way to learn about your Jeep.
Replacing your Jeep JK’s water pump keeps your engine healthy and gives you confidence for the road ahead. With the right parts, tools, and care, you can tackle this project and keep your Jeep running strong for years.
“,”visible”:true}]} –>How Long Does A Jeep Jk Water Pump Usually Last?
A Jeep JK water pump can last 60,000 to 100,000 miles. If you use quality coolant and replace worn belts, it may last longer.
Can I Drive My Jeep Jk With A Leaking Water Pump?
It’s risky. Even a small leak can quickly turn into an overheat situation, possibly damaging your engine. Replace the pump as soon as possible.
What Coolant Type Is Best For The Jeep Jk?
Use HOAT (Hybrid Organic Acid Technology) coolant, which is usually orange or yellow. Never mix different coolant types.
Do I Need To Replace The Thermostat With The Water Pump?
It’s not required, but it’s a good idea if your Jeep has over 100,000 miles or if you suspect heat issues. Thermostats are inexpensive and easy to replace during water pump service.
Is A Jeep Jk Water Pump Replacement A Good Diy Project?
Yes, for someone with basic tools and mechanical skills. If you follow instructions and take your time, it’s a manageable job and a great way to learn about your Jeep.
Replacing your Jeep JK’s water pump keeps your engine healthy and gives you confidence for the road ahead. With the right parts, tools, and care, you can tackle this project and keep your Jeep running strong for years.
