The Jeep Grand Cherokee is known for its powerful engine, off-road skills, and advanced electronics. Like many modern vehicles, it relies on a network of fuses to protect electrical components.
Understanding the fuse box layout is important for every owner. If a light, radio, or window stops working, a blown fuse is often the cause.
This guide will help you locate, identify, and replace the right fuses quickly and safely.
Jeep Grand Cherokee Fuse Box Basics
Most models of the Jeep Grand Cherokee have two main fuse boxes: one under the hood (engine compartment) and one inside the cabin. Each box contains fuses for specific systems, such as headlights, air conditioning, and power windows.
- Under-hood fuse box: Handles engine and high-power systems.
- Interior fuse box: Protects cabin electronics like the radio or seat heaters.
Knowing which box to check saves time and prevents mistakes.
Common Fuse Box Locations
Finding the fuse boxes is the first step. Here’s where to look:
Engine Compartment
Open the hood and look for a black rectangular box near the battery. It usually has a snap-on cover with a diagram inside. This box is also called the Power Distribution Center (PDC).
Cabin/interior
Look below the dashboard on the driver’s side. You may need to remove a small panel or open a door to see the fuse box. Some Grand Cherokee models place the cabin fuse box in the passenger footwell.
Typical Fuse Box Layouts

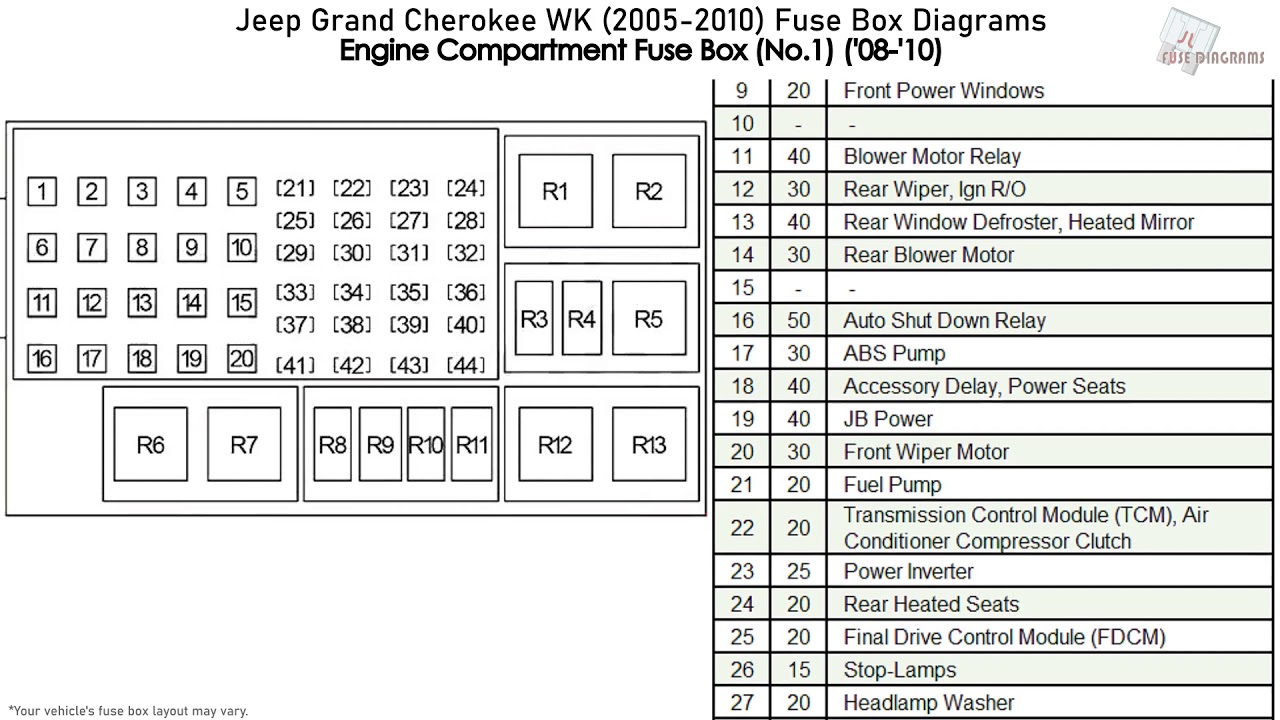

Fuse layouts vary by year and trim. However, most Jeep Grand Cherokees follow a similar pattern. Here’s a simple example for a 2014-2026 model:
| Fuse Number | Amperage | Protected Component |
|---|---|---|
| F20 | 20A | Power Outlets (Front/Rear) |
| F30 | 10A | Sunroof |
| F43 | 15A | Heated Mirrors |
| F52 | 15A | Audio System |

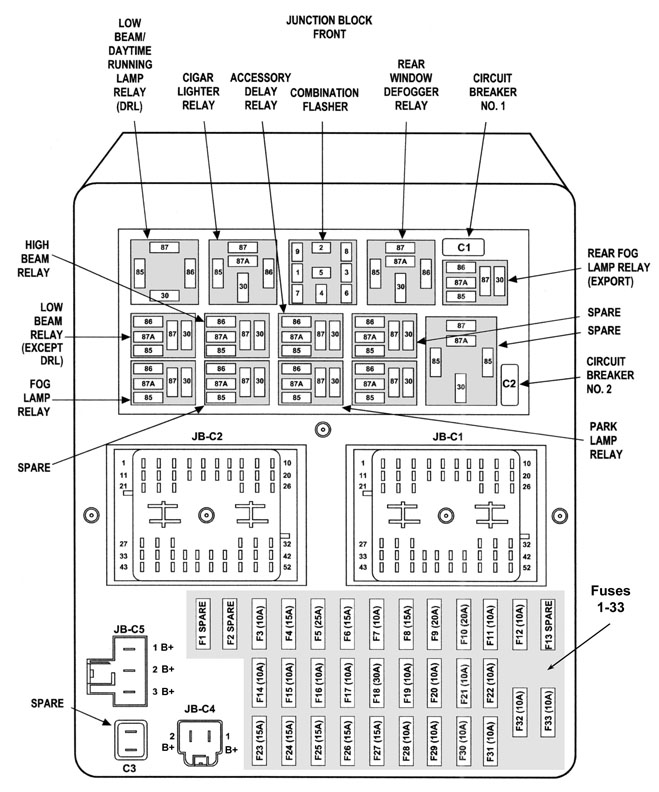

The cover diagram is your main reference. Always double-check your owner’s manual, as layouts can change between years.
How To Check And Replace A Fuse
- Turn off the vehicle and remove the key.
- Locate the correct fuse box for your problem (see sections above).
- Open the cover and use the diagram to find the target fuse.
- Pull out the fuse with a plastic puller or needle-nose pliers.
- Inspect the fuse: A blown fuse has a broken metal strip inside.
- Replace with the same amperage (e.g., replace a 15A fuse with another 15A fuse).
- Test the system (e.g., turn on the radio) before closing the box.
Tip: If the new fuse blows immediately, there may be a deeper electrical problem. Seek professional help.
Fuse Types Used In The Grand Cherokee
The Jeep Grand Cherokee uses several fuse types:
- Mini blade fuses: Most common in modern models.
- J-case fuses: For higher amperage circuits, often in the engine bay.
- Micro2 fuses: In some newer versions.
Here’s a quick look at their differences:
| Fuse Type | Shape | Typical Use |
|---|---|---|
| Mini Blade | Small, rectangular | Lights, radio |
| J-case | Boxy, tall | Fan, ABS, large loads |
| Micro2 | Very slim | Newer electronics |
Non-obvious insight: J-case fuses cannot be replaced with mini fuses or vice versa. Mixing types can damage the electrical system.
Important Circuits And Their Fuses
Many owners focus on a few key systems. Here’s where to check if these features stop working:
- Power windows: Usually F30 or F43 under the hood.
- Radio/audio: F52 in most recent models.
- Headlights: Often high-amperage fuses (F90+).
- Air conditioning: Look for labels like A/C or HVAC.
Another insight: Sometimes, a single fuse controls multiple features. For example, one fuse might power both the sunroof and the dome lights. If both stop working, check their shared fuse first.
https://www.youtube.com/watch?v=6NvKCKzYpDA
What To Do If A Problem Persists
If you replace a fuse and the new one blows again, do not keep replacing it. This can be a sign of:
- A short circuit
- Water intrusion
- Faulty wiring
Persistent issues need an experienced mechanic. Continuing to swap fuses can cause more damage or even fire.
Comparing Different Grand Cherokee Years
Fuse box layouts change slightly with each new model. Here’s a brief comparison:
| Model Year | Main Fuse Box Location | Number of Fuses |
|---|---|---|
| 2011-2013 | Engine bay, left side | 50-60 |
| 2014-2026 | Engine bay, near battery | 65-70 |
| 2026+ | Engine bay & footwell | 70+ |
Always refer to your specific year’s manual or the diagram in the fuse box cover.
Safety Tips And Common Mistakes
- Never replace a fuse with one that has a higher amperage. This risks fire.
- Always turn off the car before touching fuses.
- Keep spare fuses and a puller tool in your glove box.
- Don’t ignore repeated fuse failures—find the root cause.
Non-obvious tip: When buying used Jeep Grand Cherokees, inspect the fuse box for missing or mismatched fuses. It may signal past electrical issues.
Where To Find More Information
For the most accurate details, check your owner’s manual. Jeep’s official website also provides diagrams for recent models: Mopar Jeep Resources.
