Towing a Jeep Wrangler with an automatic transmission is a task that needs careful planning. Many Jeep owners want to tow their vehicle behind a motorhome or truck, but doing it incorrectly can cause expensive damage. The process is not as simple as hooking up and pulling.
You need to know the right steps, tools, and safety tips. If you get it wrong, you could ruin the transmission or other parts. This guide shows you how to tow a Jeep Wrangler automatic safely and efficiently, whether you’re a beginner or have some experience.
Know Your Jeep Wrangler Automatic
Before you begin, check which model you own. Not every Jeep Wrangler automatic can be flat towed (also called “dinghy towing”). Most 4×4 Wranglers with a transfer case are suitable, but newer models or 2WD versions often require extra steps or equipment.

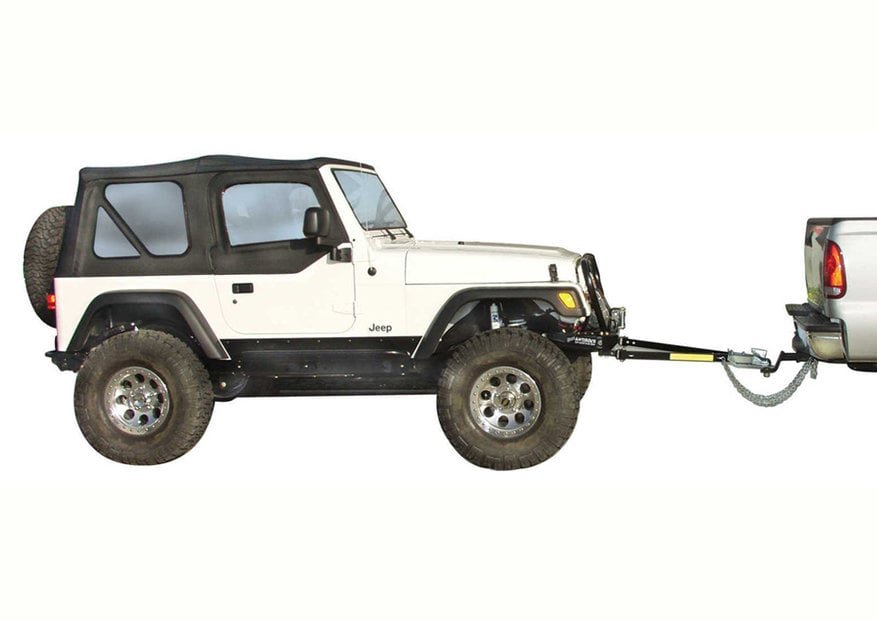

Why is flat towing special? With flat towing, all four wheels are on the ground. This method is popular for RV owners, but only specific vehicles can handle it. The Jeep Wrangler’s transfer case lets you disconnect the wheels from the transmission, avoiding damage.
Here’s a quick comparison of Jeep Wrangler towing options:
| Model Year | Flat Tow (All 4 Wheels) | Dolly (Front Wheels) | Trailer (All Wheels) |
|---|---|---|---|
| 2010-2024 Wrangler 4×4 | Yes | Yes | Yes |
| 2010-2024 Wrangler 2WD | No | Yes | Yes |
| Older Wranglers (pre-2010) | Check manual | Yes | Yes |
Always check your owner’s manual to see if your Jeep Wrangler automatic transmission can be flat towed. If not, you must use a dolly or trailer.
Equipment You Need
To tow your Jeep Wrangler automatic, gather these items:
- Tow bar: Connects the Jeep to the towing vehicle.
- Base plate kit: Attaches the tow bar to your Jeep.
- Safety chains: Backup in case the tow bar fails.
- Wiring harness: Links brake and turn signals.
- Brake system: Required by law in many states for safety.
- Wheel chocks: Prevent rolling during setup.
Here’s a comparison of common towing equipment:
| Equipment | Cost Range | Purpose |
|---|---|---|
| Tow Bar | $200-$900 | Connects vehicles |
| Base Plate Kit | $300-$500 | Mounts to Jeep |
| Safety Chains | $30-$60 | Backup safety |
| Brake System | $500-$1200 | Stops Jeep |
| Wiring Harness | $40-$120 | Lights & signals |
Step-by-step Towing Instructions
Follow these steps to tow your Jeep Wrangler automatic transmission safely:
1. Prepare The Jeep
- Park on a flat surface.
- Set the parking brake.
- Attach wheel chocks.
2. Set The Transmission And Transfer Case
- Put the transmission in Park (P).
- Set the transfer case to Neutral (N). This is vital. It disconnects the wheels from the transmission.
- Release the parking brake.
Tip: Setting the transfer case to Neutral is the most important step. Forgetting this can destroy your transmission.

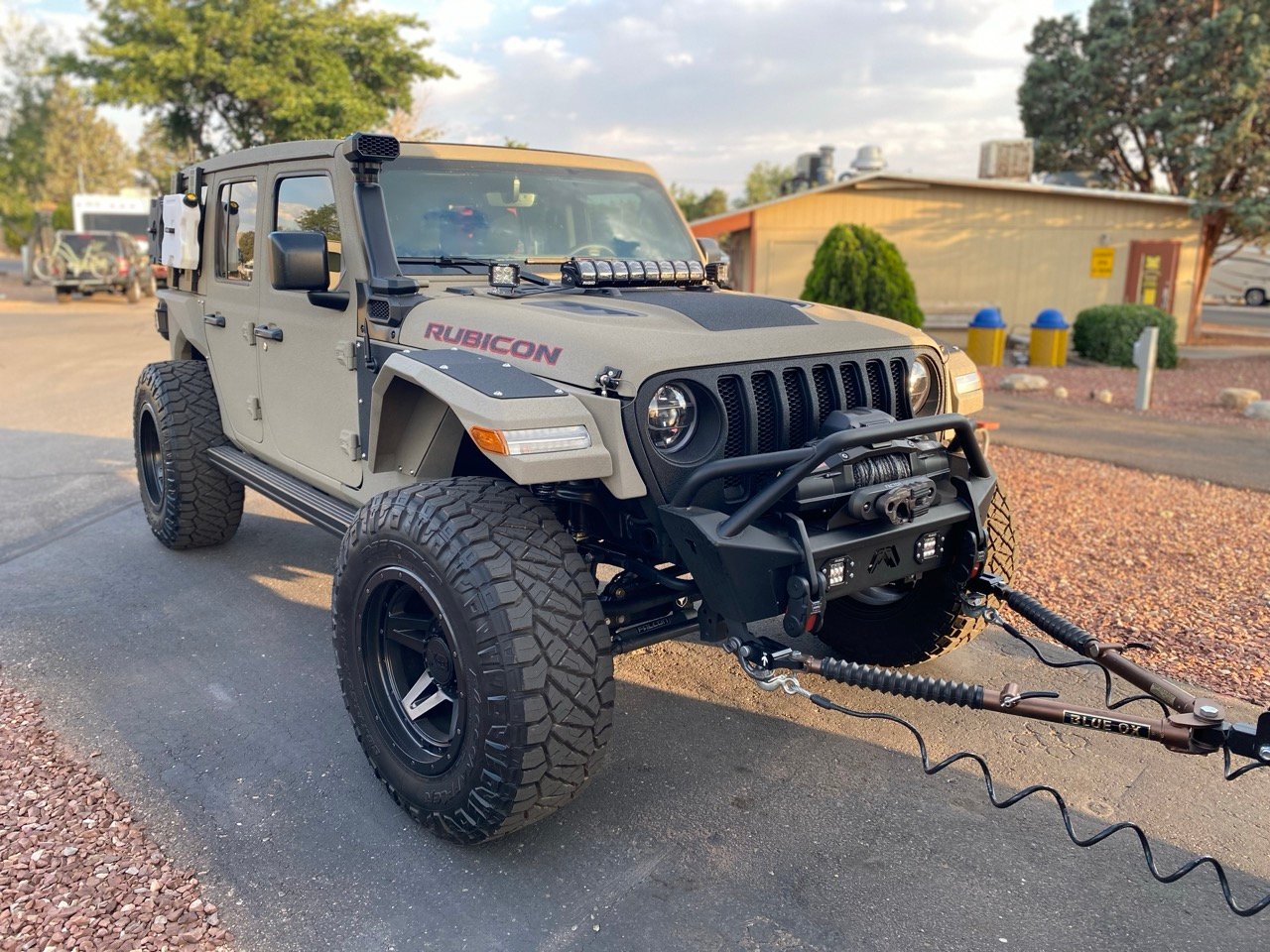

3. Attach Tow Bar And Safety Chains
- Secure the tow bar to the base plate.
- Attach safety chains between vehicles. Cross them under the tow bar.
- Check that all connections are tight.
4. Connect Wiring Harness
- Plug in the wiring harness for brake lights and turn signals.
- Test all lights before starting your trip.
5. Set Up Brake System
- Install a supplemental brake system if required by law or for safety.
- Check its operation.
6. Final Check
- Remove wheel chocks.
- Walk around the Jeep and towing vehicle.
- Double-check all connections and settings.
Mistake to avoid: Many beginners forget to check the wiring or brake system, leading to accidents or tickets.
Safety Tips For Towing
- Check tire pressure: All tires must be properly inflated.
- Inspect tow bar and base plate: Look for cracks or loose bolts.
- Drive slowly: Stay under 65 mph for stability.
- Avoid sharp turns: Sudden movements can stress the tow bar.
- Stop regularly: Every 50 miles, check all connections.
Here’s a table with recommended towing speeds and distances:
| Road Type | Max Speed | Check Interval |
|---|---|---|
| Highway | 65 mph | Every 50 miles |
| City | 35 mph | Every 20 miles |
| Mountain | 45 mph | Every 30 miles |
Common Mistakes To Avoid
- Leaving transfer case in gear: Always set to Neutral.
- Skipping brake system: Many states require it. It makes towing safer.
- Loose safety chains: Can cause damage if tow bar fails.
- Not checking lights: Other drivers need to see your signals.
- Ignoring weight limits: Never exceed the towing vehicle’s capacity.
Non-obvious insight: If your Jeep is still under warranty, improper towing can void it. Always follow manufacturer instructions.
Real-world Example
A Jeep owner tried to tow his 2018 Wrangler with the transfer case in 4WD instead of Neutral. After 100 miles, the transmission overheated and failed. The repair cost was over $4,000. This shows how a small mistake can lead to big expenses.
Another tip: If you tow often, invest in a high-quality brake system. It will protect your Jeep and towing vehicle.
Frequently Asked Questions
Can I Flat Tow A Jeep Wrangler Automatic Transmission?
Yes, most Jeep Wrangler 4×4 models with a transfer case can be flat towed. Always check your owner’s manual.
What Happens If I Forget To Set The Transfer Case To Neutral?
Your transmission can suffer severe damage. Always put the transfer case in Neutral before towing.
Is A Brake System Required For Towing?
Many states require a supplemental brake system. It improves safety and reduces wear on your towing vehicle.
Can I Use A Dolly Or Trailer Instead Of Flat Towing?
Yes. If your Jeep is not flat-towable, use a dolly (for front wheels) or a full trailer. This avoids transmission damage.
Where Can I Find Official Towing Guidelines For Jeep Wranglers?
For official instructions, visit the Jeep website or check your manual. You can also see guidelines at Jeep Official Site.
Towing your Jeep Wrangler automatic transmission can be safe and easy if you follow the right steps. Always check your manual, use the correct equipment, and double-check your setup. Avoid shortcuts, and make safety your top priority. With proper preparation, you’ll enjoy smooth travels and protect your Jeep for years to come.
