Switching your Jeep Wrangler into 4L (Four-Low) is more than just a button press—it’s about knowing when and how to use it for the best off-road performance and vehicle safety. Many Wrangler owners are unsure about the right way to engage 4L, or they worry about damaging their transmission. This guide walks you through the correct steps, common mistakes, and expert tips, so you can confidently handle rough terrain. Whether you’re new to off-roading or just want to protect your investment, you’ll find clear, practical advice right here.
Understanding 4l In Jeep Wrangler
The 4L (Four-Low) mode is designed for slow, controlled driving on difficult surfaces like mud, sand, snow, and rocks. In this mode, power is sent evenly to all four wheels, but at a lower gear ratio. This gives your Jeep maximum torque at low speeds, making it easier to crawl over obstacles or move through deep mud.
Switching to 4L is different from 4H (Four-High), which is better for slippery but faster driving, like snowy roads or loose gravel. Many drivers confuse these modes, so here’s a quick comparison:
| Mode | Best For | Speed Range |
|---|---|---|
| 2H | Normal roads | All speeds |
| 4H | Slippery roads | Up to 55 mph |
| 4L | Off-road obstacles | Under 25 mph |
Understanding when to use each mode will help you avoid mechanical issues and get the best performance from your Jeep Wrangler.
When Should You Use 4l?
4L is not for everyday driving. Use it only when you need extra torque at very low speeds. Here are some situations where 4L is essential:
- Rock crawling: Climbing over large rocks or uneven surfaces.
- Deep mud or snow: When 4H is not enough to keep your wheels turning.
- Steep inclines or declines: Going up or down very sharp hills.
- Sand dunes: For slow, powerful movement through loose sand.
If you use 4L on dry pavement, you risk damaging your transfer case and drivetrain. Always make sure the surface is slippery or loose.
How To Switch To 4l Jeep Wrangler
Switching to 4L is simple if you follow the right steps. For most Wrangler models (JK, JL, Gladiator), the process is similar, but always check your owner’s manual for exact instructions.

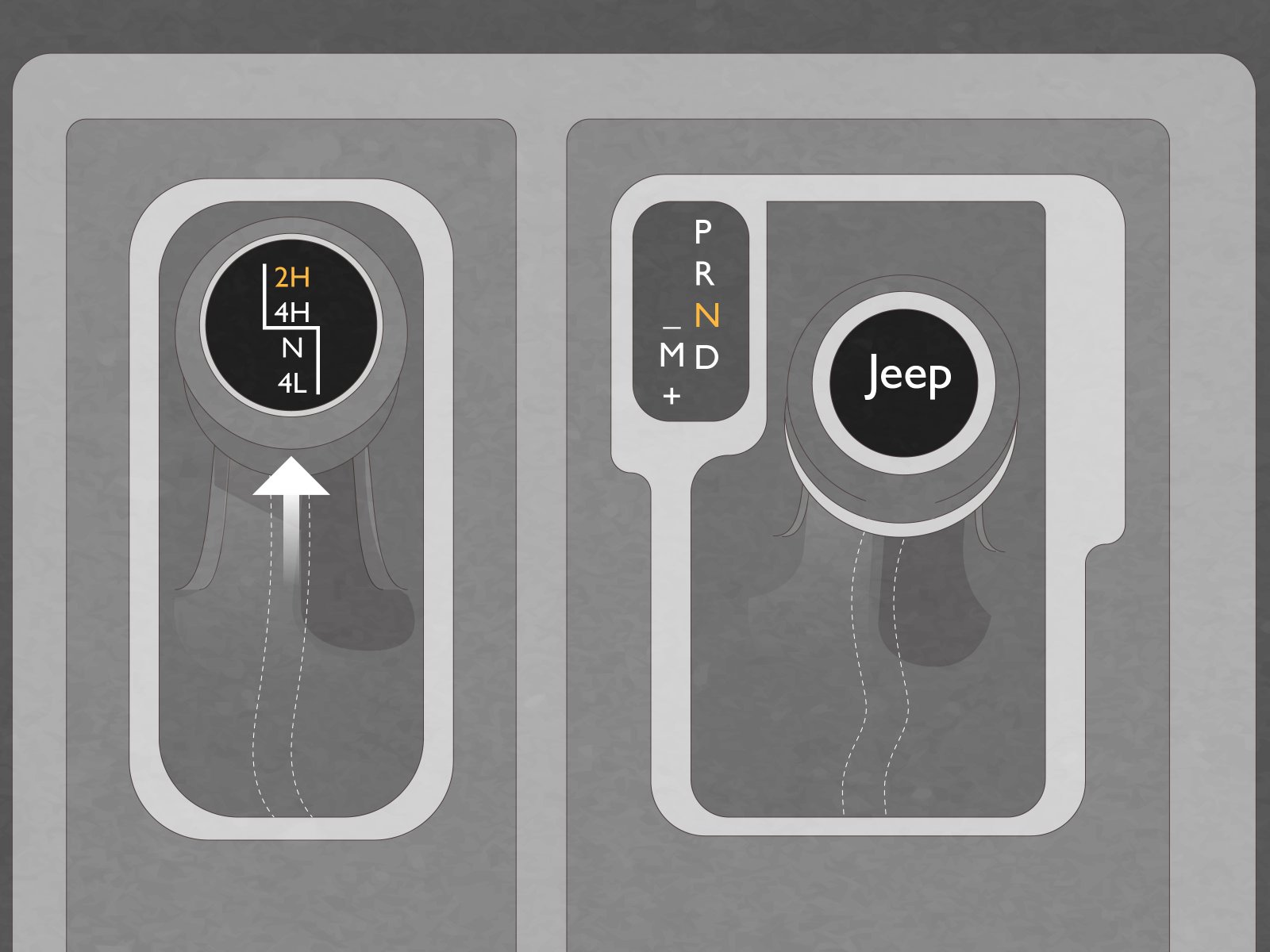

Steps To Engage 4l
- Stop your vehicle completely. Do not try to shift into 4L while moving.
- Shift the transmission into Neutral (N). This step is critical. Some drivers forget this and hear grinding noises or can’t shift at all.
- Firmly pull the transfer case lever (or use the electronic switch in newer models) from 2H or 4H straight down to 4L.
- Wait for the 4L indicator light on the dashboard to turn on. This confirms you’re in 4L.
- Shift back into Drive (D) or first gear if you have a manual transmission.
You’re now ready to tackle tough terrain with maximum control and torque.
Example: Engaging 4l In A 2020 Jeep Wrangler
Let’s say you’re on a rocky trail and need more power at low speed. You stop, put the automatic transmission in Neutral, and pull the lever from 4H to 4L. The “4L” light comes on—now you’re set to move forward slowly and carefully.
Common Mistakes And How To Avoid Them
Switching to 4L seems easy, but many drivers make costly errors. Here’s what to watch out for:
- Shifting while moving: Always stop before switching to 4L. Shifting while rolling can damage the transfer case.
- Forgetting Neutral: The transmission must be in Neutral (not Park or Drive) for the shift to work.
- Using 4L on hard pavement: Only use 4L on loose or slippery surfaces. On dry pavement, you risk drivetrain damage.
- Ignoring the indicator light: If the light doesn’t come on, you’re not in 4L. Try shifting again.
- Turning sharply in 4L: This can cause “driveline bind,” making the steering stiff and possibly harming your axles.
Even experienced off-roaders sometimes forget these basics. Don’t rush the process—give your Wrangler a moment to fully engage 4L.
Tips For Smooth 4l Operation
Small details make a big difference in off-road performance:
- Practice in a safe area: Try switching to 4L in an empty parking lot or dirt road before you need it in the wild.
- Listen for sounds: A small “clunk” is normal, but grinding or harsh noises mean you need to repeat the process.
- Don’t force the lever: If it doesn’t shift easily, wiggle the transmission between Drive and Neutral, then try again.
- Know your Wrangler: Older models use a manual lever; newer ones may have electronic switches. Each feels different.
One hidden tip: If your Jeep is “stuck” and won’t shift into 4L, sometimes rolling forward or backward a few inches while in Neutral helps align the gears. Most manuals don’t mention this, but it often solves stubborn shifting issues.
4l Vs. 4h: Which Should You Choose?
Many drivers wonder when to use 4L versus 4H. Here’s a quick reference:
| Situation | Recommended Mode |
|---|---|
| Wet or icy roads | 4H |
| Deep snow, mud, rocks | 4L |
| Highway speeds | 2H |
| Steep hills (slow) | 4L |
If you’re unsure, start in 4H and switch to 4L only when you need more control and power at low speeds.
Maintaining Your 4wd System
Switching to 4L puts extra strain on your Jeep’s transfer case and drivetrain. Regular checks are essential:
- Check transfer case fluid every 30,000 miles (or as your manual says).
- Listen for unusual noises when shifting between modes.
- Test 4L before trips: Don’t wait until you’re stuck to find out it doesn’t work.
Routine maintenance keeps your 4WD system reliable and prevents expensive repairs. For more technical details, visit the official Jeep 4×4 Guide.
Frequently Asked Questions
How Fast Can I Drive In 4l?
You should keep your speed under 25 mph in 4L. This mode is meant for slow, careful driving over obstacles, not for speed.
Can I Shift To 4l While Moving?
No. Always bring your Jeep Wrangler to a complete stop and put the transmission in Neutral before switching to 4L.
What Happens If I Use 4l On Dry Pavement?
Using 4L on dry, hard surfaces can cause drivetrain binding and damage your transfer case. Only use 4L on loose, slippery terrain.
Why Won’t My Jeep Shift Into 4l?
Common reasons include the transmission not being in Neutral, trying to shift while moving, or mechanical problems. Sometimes, rocking the Jeep slightly while in Neutral helps engage 4L.
Is 4l The Same As Locking The Differentials?
No. 4L splits power to all wheels at a low gear ratio, but doesn’t lock the front and rear axles together. Locking differentials is a separate feature for even tougher conditions.
Switching your Jeep Wrangler to 4L is a simple process, but doing it correctly protects your vehicle and gives you the best performance off-road. Practice the steps, avoid common mistakes, and always use 4L only when the terrain truly demands it. With this knowledge, you’re ready for any adventure the trail brings.
