Replacing the windshield washer nozzle on your Jeep Patriot can seem small, but it makes a big difference in daily driving. Clear vision means safer trips, and a clogged or broken nozzle can leave your windshield dirty even after using the washer fluid. This guide walks you through replacing the nozzle, including tools, steps, and tips for a hassle-free fix.
Why Replace The Windshield Washer Nozzle?
A faulty washer nozzle means streaks, poor cleaning, or sometimes no spray at all. Most Jeep Patriots use plastic nozzles that can clog, crack, or break over time. Signs you need a new nozzle include:
- Washer fluid spraying in the wrong direction
- Weak spray or no spray at all
- Visible cracks or damage on the nozzle
A working nozzle helps keep your windshield clean in rain, snow, or when dust builds up.
Tools And Materials You Need
Before starting, gather these items for a smooth replacement:

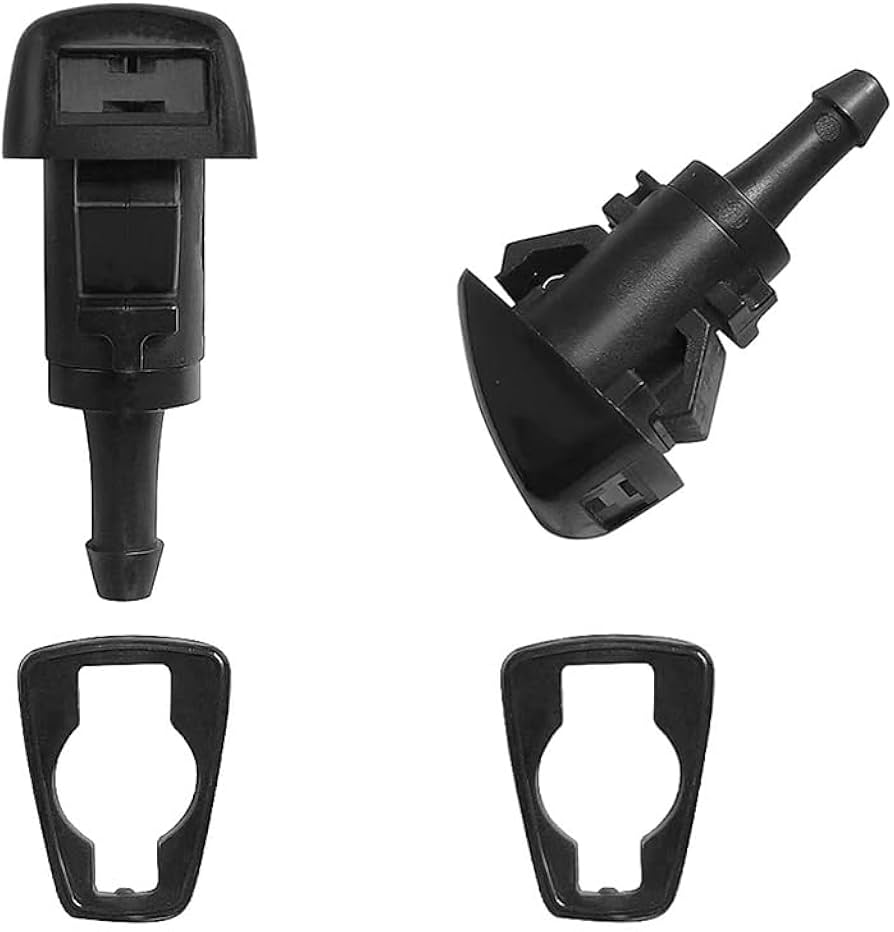

- Replacement washer nozzle (make sure it fits your Jeep Patriot’s model year)
- Flathead screwdriver or plastic trim tool
- Needle-nose pliers (optional)
- Small wrench or socket set (if required)
- Washer fluid (to test after installation)
Some Jeep Patriots use a snap-in nozzle, while others need a wrench. Check your owner’s manual or the new nozzle for exact details.
Step-by-step Replacement Guide
Changing a washer nozzle is usually quick—about 10–20 minutes. Follow these steps for best results.
1. Locate The Washer Nozzle
The washer nozzles sit on top of the hood near the windshield. Open the hood to access the underside where the nozzle connects to the washer hose.
2. Remove The Washer Hose
Gently pull the washer hose off the nozzle’s connector. If it’s stuck, use needle-nose pliers. Be careful not to damage the hose—washer hoses can be brittle with age.
3. Release The Old Nozzle
For most Jeep Patriots, the nozzle clips into the hood.
- Use a flathead screwdriver or trim tool to press the plastic tabs holding the nozzle.
- Push up gently from below while pulling the nozzle out from the top.
If your model uses a bolt, remove it with a small wrench.
4. Install The New Nozzle
Line up the new nozzle with the hole in the hood. Push it in until you hear a click or feel it lock in place. For bolt-on types, secure with the original hardware.
5. Reattach The Washer Hose
Push the washer hose onto the new nozzle’s connector. Make sure it fits snugly so there are no leaks.
6. Test The System
Close the hood. Fill the washer fluid reservoir if needed. Turn on the windshield washer from inside the car and watch the spray pattern. Adjust the nozzle direction if needed—most have a small ball joint you can move with a pin.
Common Mistakes To Avoid
Many first-timers make these mistakes:
- Breaking the washer hose: Pull gently and use tools if needed.
- Forcing the nozzle: If it feels stuck, check for extra clips or screws.
- Not checking fitment: Always buy a nozzle for your exact Jeep Patriot year.
Snap-in Vs Bolt-on Nozzles
Jeep Patriots use both snap-in and bolt-on washer nozzles depending on model year. Here’s a quick comparison:
| Type | How to Remove | Tools Needed | Years Used |
|---|---|---|---|
| Snap-In | Press tabs, push out | Flathead screwdriver | Most 2007–2015 |
| Bolt-On | Remove bolt, pull out | Small wrench/socket | Some late models |
Check your Jeep’s build year to avoid buying the wrong part.
How To Adjust The Washer Nozzle
After installing a new nozzle, you might need to adjust the spray direction. Here’s how:
- Use a sewing pin or safety pin.
- Insert into the nozzle hole gently.
- Move the ball joint up, down, left, or right to aim the spray.
Spray test after each adjustment. Don’t use too much force—plastic nozzles can crack.
When To Replace Both Nozzles

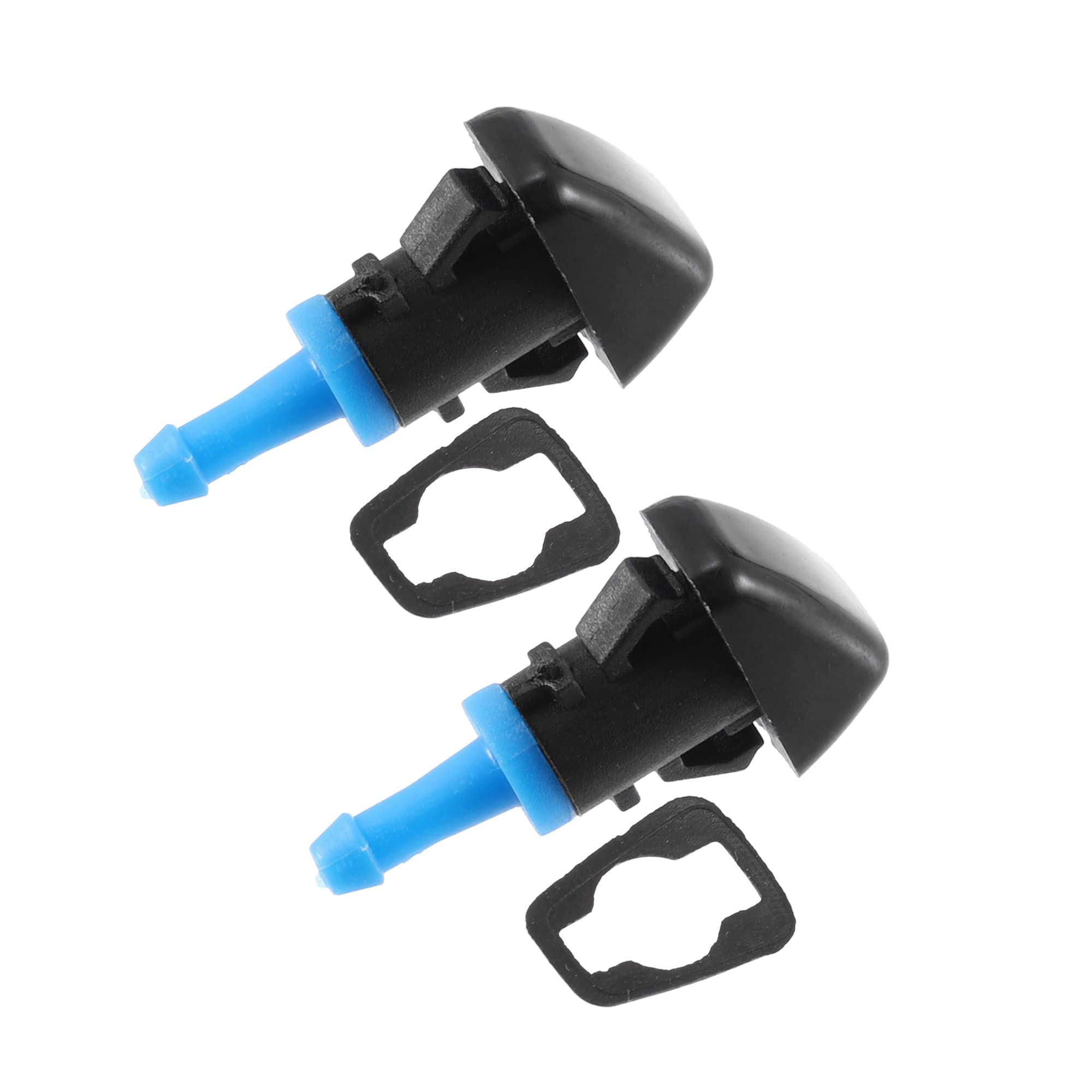

Even if only one nozzle is clogged, it’s smart to replace both at once. This keeps spray patterns matched. Nozzles are usually sold in pairs and cost $10–$30. Mismatched nozzles can leave one side of your windshield dirty.
Cost And Time Comparison
Here’s what you can expect for time and money:
| Option | Cost (Parts) | Labor (Shop) | Time Needed |
|---|---|---|---|
| DIY Replacement | $10–$30 | Free | 10–20 minutes |
| Mechanic Shop | $10–$30 | $50–$100 | 1 hour |
Doing it yourself saves money and is simple if you follow the steps.
Two Key Insights Most Miss
- Clogged nozzles can sometimes be cleaned: Use a sewing needle to clear the jet before replacing. But, if the spray is weak or the plastic is cracked, replacement is best.
- Washer fluid leaks may be hose-related: If a new nozzle does not fix the spray, check the hose for cracks or leaks.
Real-world Example
Many Jeep Patriot owners report the passenger side nozzle fails first due to more sun exposure. If you notice one side is always weaker, start there but plan to replace both soon.
For more on car maintenance, see the official Wikipedia article on windshield washer fluid.
Frequently Asked Questions
How Do I Know If My Jeep Patriot’s Washer Nozzle Is Bad?
If the spray pattern is weak, uneven, or the washer fluid doesn’t reach the windshield, your nozzle may be clogged or broken. Physical cracks or leaks also mean it’s time to replace.
Can I Clean A Clogged Washer Nozzle Instead Of Replacing It?
Yes, sometimes dirt or wax blocks the jet. Use a thin pin to carefully clean the nozzle. If cleaning does not restore proper spray, replace the nozzle.
Are All Jeep Patriot Washer Nozzles The Same?
No, there are two main types: snap-in and bolt-on. Always check your Patriot’s model year and compare the old nozzle to the new one before installing.
Do I Need To Drain The Washer Fluid Before Replacing The Nozzle?
No, you don’t need to drain the reservoir. Just be ready for a few drops of fluid when you disconnect the hose.
How Can I Make Sure The New Nozzle Aims Correctly?
After installation, use a pin to adjust the nozzle direction. Test the spray and repeat until it covers the windshield area evenly.
Replacing a Jeep Patriot’s windshield washer nozzle is a simple DIY job that improves safety and driving comfort. With the right tools and steps, you’ll have clear vision on the road in minutes.
