Changing a tail light on a Jeep Wrangler might look tricky, but it’s a task most owners can handle with basic tools and a little patience. Replacing a broken or burnt-out tail light is not only about safety—it keeps your Jeep legal and visible on the road.
In this guide, you’ll learn how to change a Jeep Wrangler tail light step by step, with clear advice, common pitfalls, and practical tips to help both beginners and experienced DIYers.
Tools And Parts Needed
Before you start, gather the right tools and parts. This saves time and avoids frustration.
- Phillips screwdriver (or Torx T15 for some models)
- Replacement tail light assembly or bulb
- Gloves (optional, but help keep bulbs clean)
- Small flathead screwdriver (for prying connectors)
- Owner’s manual (for specific details)
Not all Jeep Wranglers use the same tail light bulbs. Check your owner’s manual for the correct bulb type. Most post-2007 Wranglers use a 3157 or 7443 bulb, but always verify first.
Jeep Wrangler Tail Light Types
Wrangler tail lights come in different styles, and knowing your model year helps you buy the right part.
| Model Year | Tail Light Type | Bulb Type |
|---|---|---|
| 2007-2017 (JK) | Standard Halogen | 3157 |
| 2018-2023 (JL) | LED (optional) | 7443 or LED module |
| Older (TJ/YJ) | Halogen | 1157 |
Insight: Some aftermarket tail lights use built-in LEDs, so you must replace the whole assembly, not just the bulb.
Step-by-step Instructions
Now, let’s walk through the process for a typical Jeep Wrangler tail light replacement.
1. Turn Off The Ignition
For safety, always turn off your Jeep and remove the keys. This prevents electrical shock and avoids damage to the lighting circuit.
2. Open The Tailgate
On most Wranglers, you’ll need the tailgate open to access the screws that hold the tail light in place.
3. Remove The Tail Light Screws
Locate the two or four screws on the outside edge of the tail light. Use the correct screwdriver (Phillips or Torx). Keep the screws safe—they are often unique to Jeep tail lights.
Tip: If screws are rusty or stuck, spray a little WD-40 and let it sit for a few minutes.
4. Pull Out The Tail Light Assembly
Gently pull the entire tail light housing straight out from the body. It may take a little wiggling, but avoid using force.
5. Disconnect The Wiring Harness
Find the electrical connector at the back of the tail light. Press the release tab and pull it apart. If it’s stuck, use a flathead screwdriver for extra leverage.

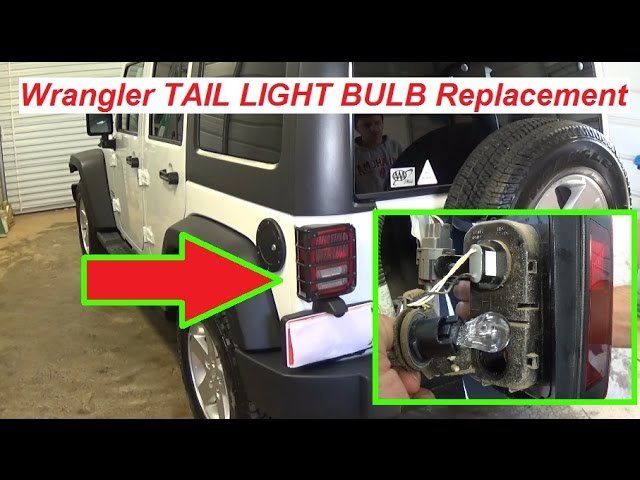

6. Replace The Bulb (if Needed)
If you’re only changing a bulb, twist the bulb socket counterclockwise and pull it out. Remove the old bulb and insert the new one, making sure not to touch the glass with bare fingers—oils can shorten bulb life.
7. Install The New Tail Light Or Bulb
Reverse the process:
- Connect the wiring harness to the new assembly.
- Insert the tail light housing back into the Jeep’s body.
- Secure it with screws.
8. Test The Tail Light
Before you finish, turn on the Jeep and check the new tail light. Test brake lights, turn signals, and reverse lights to ensure everything works.
9. Final Steps
Once confirmed, close the tailgate and clean up your tools. Dispose of the old bulb properly—many auto parts stores recycle them.
Wrangler Tail Light Replacement: Cost Comparison
Here’s a quick look at what you might spend, depending on your approach.
| Method | Parts Cost (Approx.) | Labor Cost | Total |
|---|---|---|---|
| DIY Bulb Only | $5-$15 | $0 | $5-$15 |
| DIY Full Assembly | $50-$150 | $0 | $50-$150 |
| Shop Replacement | $50-$150 | $50-$100 | $100-$250 |
Tip: Aftermarket LED assemblies can cost more but last longer and use less power.
Common Mistakes And How To Avoid Them
- Forcing the housing: Jeep tail lights fit tightly, but forcing can crack plastic or damage clips. Always wiggle gently.
- Buying the wrong part: Double-check your Jeep’s model year and tail light type before shopping.
- Not testing before finishing: Always test all light functions before reassembling. It’s easier to fix a missed connection before everything is back in place.
- Touching bulbs with bare hands: Skin oils can create hot spots on halogen bulbs, leading to premature failure.
- Over-tightening screws: Tighten screws enough to hold the assembly firmly, but don’t strip the threads.
Non-obvious insight: On Wranglers with LED tail lights, a blown fuse or bad wiring can mimic a bad bulb. If a new bulb doesn’t solve the problem, check your fuses and wiring harness.
When To Replace The Entire Tail Light Assembly
If your tail light is cracked, fogged, or full of water, it’s safer to replace the whole assembly, not just the bulb. Water can cause electrical shorts and corrosion, leading to further issues. Also, many newer Wranglers use LED modules that cannot be replaced separately. In these cases, buy a complete tail light assembly for your specific model.
Practical tip: Aftermarket assemblies often have a different look or brightness. If you’re only replacing one side, try to match the style for a balanced appearance.
Extra Tips For A Smooth Job
- Bring a flashlight for better visibility inside the tail light area.
- Take photos before disconnecting wires to help you remember the layout.
- If you have a trailer wiring harness, check that it’s not interfering with the tail light connection.
For more technical details and wiring diagrams, visit the official Jeep Maintenance page.
Frequently Asked Questions
How Long Does It Take To Change A Jeep Wrangler Tail Light?
Most people can replace a tail light or bulb in 15-30 minutes. If you’re new to car repairs, allow a bit more time to avoid mistakes.
Can I Upgrade My Wrangler’s Tail Lights To Leds?
Yes, many owners upgrade to LED tail lights for better brightness and longevity. Make sure the new lights are compatible with your Wrangler’s wiring.
What If The New Tail Light Still Doesn’t Work?
If the new light doesn’t function, check the fuse box, wiring harness, and connections. Sometimes, a blown fuse or corroded connector is the real issue.
Do I Need To Disconnect The Battery Before Replacing The Tail Light?
It’s not required for bulb changes, but disconnecting the battery can add safety if you’re replacing the whole assembly or working with wiring.
Are Aftermarket Tail Lights Legal?
Aftermarket tail lights are legal if they are DOT-approved and meet brightness and color standards. Check your local laws before installation.
Changing your Jeep Wrangler’s tail light is a manageable job that improves safety and keeps you on the right side of the law. With the right tools and these practical steps, you can confidently handle this repair and get back on the road quickly.
