Jeep Cherokee owners often consider swapping wheels for better looks, performance, or to replace damaged rims. But not every wheel fits every Cherokee. Mixing the wrong wheels can cause problems like poor handling, rubbing, or even damage to your vehicle.
Understanding which wheels interchange with the Jeep Cherokee can save you time, money, and frustration. This guide explains everything you need to know, including fitment basics, compatible models, and key tips most people miss.
Understanding Wheel Fitment Basics
Before searching for new wheels, it’s important to know the main fitment factors. The bolt pattern, center bore, offset, and wheel size determine whether a wheel will fit your Jeep Cherokee.
- Bolt pattern refers to the number of lug holes and the diameter of the circle they form. For example, many Cherokees use a 5×114.3mm pattern (5 lugs, 114.3mm apart).
- Center bore is the hole in the middle of the wheel that centers it on the hub.
- Offset is the distance from the wheel’s mounting surface to the centerline.
- Wheel size includes both diameter and width, usually written as 17×7.5 (17-inch diameter, 7.5-inch width).
If any of these do not match, the wheel may not fit safely or perform well.
Jeep Cherokee Wheel Compatibility By Generation
Different generations of the Jeep Cherokee have different wheel requirements. Here’s what you need to know about the main Cherokee models.
Xj Cherokee (1984–2001)
The XJ Cherokee is known for its simple, rugged design. Its wheel specs are:
- Bolt pattern: 5×114.3mm (also called 5×4.5”)
- Center bore: 71.5mm
- Offset: +31mm (factory range: +24 to +32mm)
- Stock size: 15×7 inches
Many older Jeep and Ford wheels share this pattern, making swaps easier.
Kj Cherokee (liberty, 2002–2007)
In the US, the KJ was called the Liberty. Specs:
- Bolt pattern: 5×114.3mm
- Center bore: 71.5mm
- Offset: +31 to +38mm
- Stock size: 16×7 or 17×7 inches
Wheels from other mid-2000s Jeeps may fit, but offset differences matter.

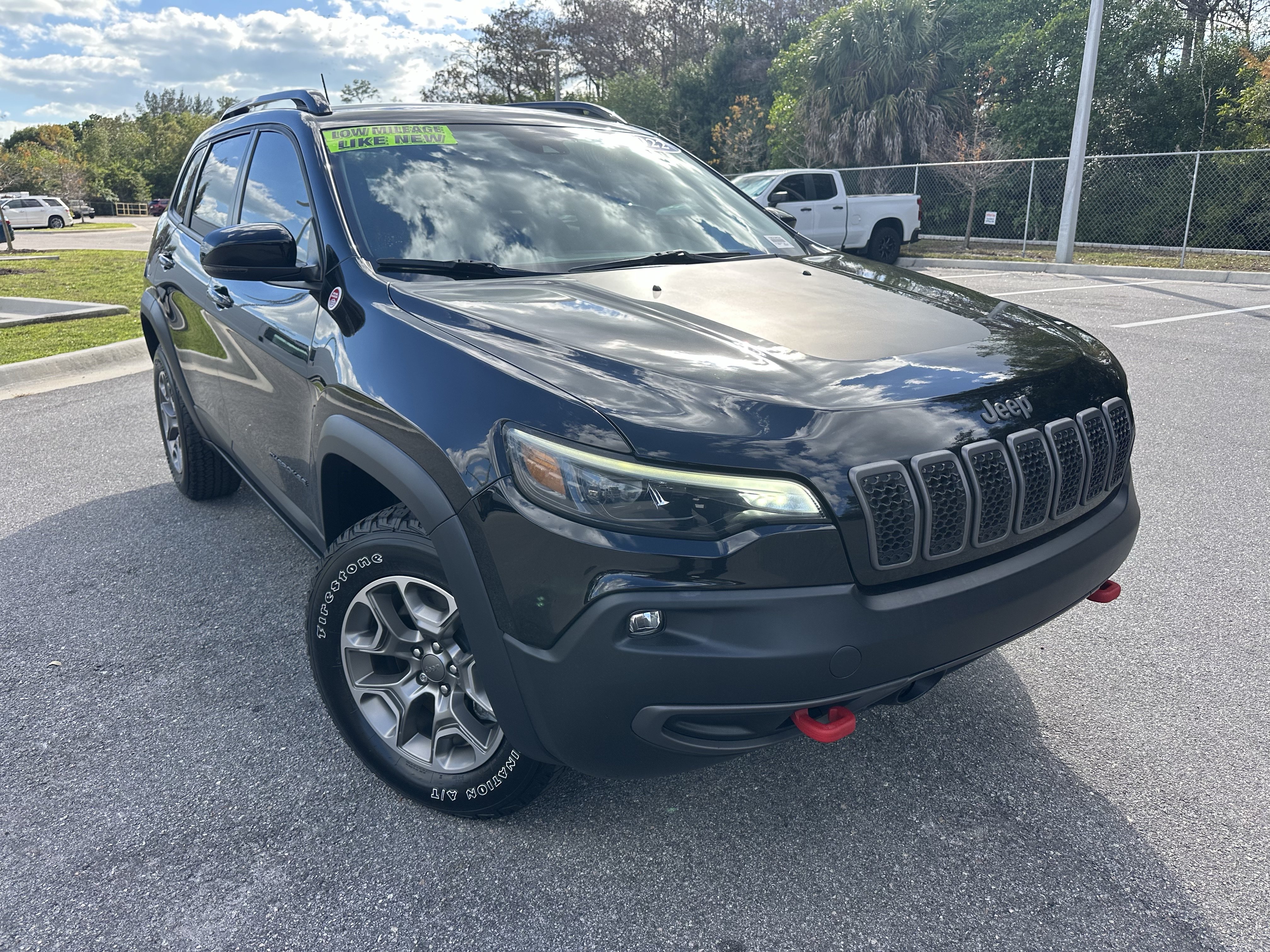

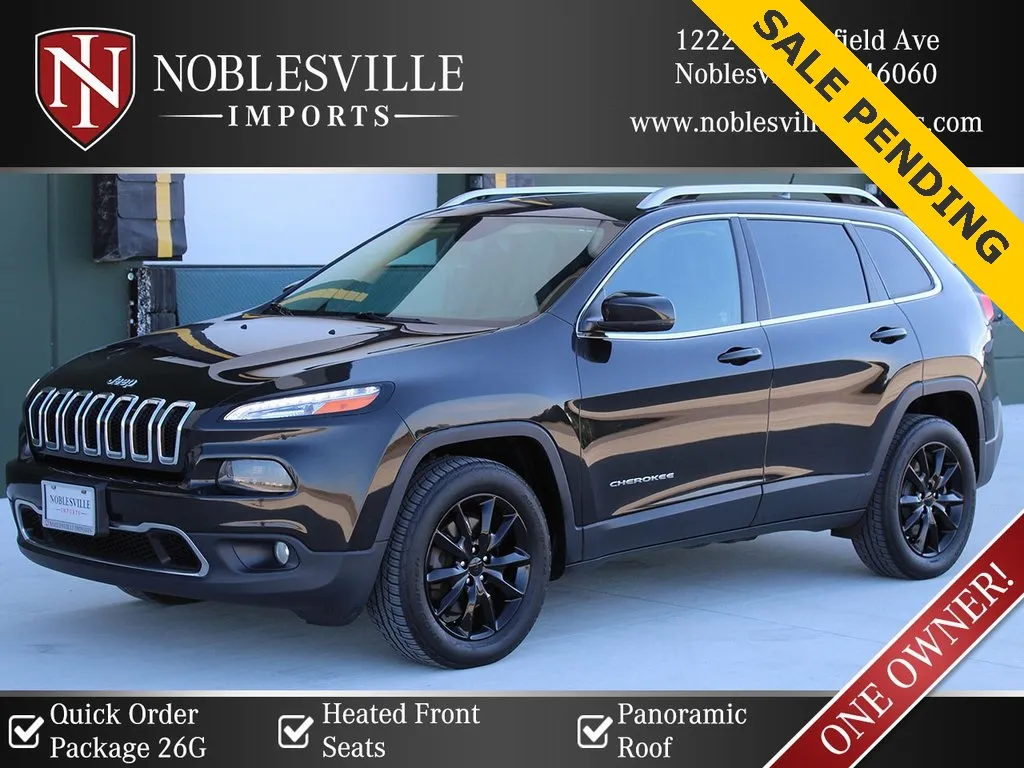

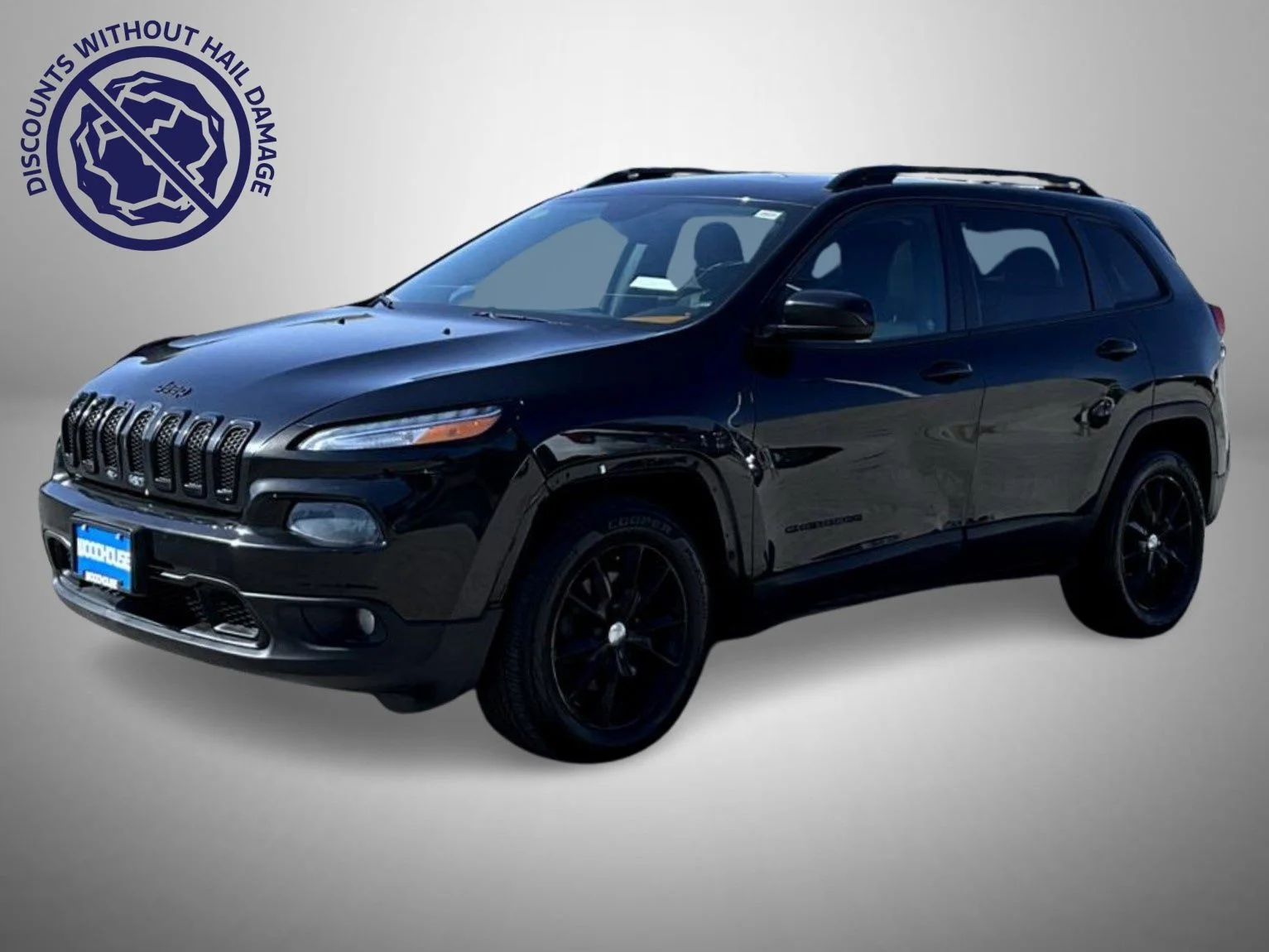

Kl Cherokee (2014–present)
The modern KL Cherokee uses a different setup:
- Bolt pattern: 5x110mm
- Center bore: 65.1mm
- Offset: +41mm
- Stock size: 17×7 or 18×7.5 inches
This unique pattern limits direct swaps from other Jeep models.
What Wheels Interchange With Jeep Cherokee?
Some wheels from other vehicles can fit your Cherokee, but always check the specs. Below is a comparison of some common swaps.
| Donor Model | Years | Bolt Pattern | Center Bore | Offset | Fits Cherokee? |
|---|---|---|---|---|---|
| Jeep Grand Cherokee | 1999–2010 | 5x127mm | 71.5mm | +50mm | No (bolt pattern mismatch) |
| Jeep Wrangler TJ | 1997–2006 | 5×114.3mm | 71.5mm | +25mm | Yes (XJ/KJ) |
| Ford Ranger | 1990–2012 | 5×114.3mm | 70.3mm | +12 to +25mm | Possible (check offset) |
| Dodge Journey | 2009–2020 | 5x127mm | 71.5mm | +40mm | No (bolt pattern mismatch) |
For modern KL Cherokees, wheels from Fiat 500X and Jeep Compass (post-2017) may fit due to the same 5x110mm pattern.
Important Things To Check Before Swapping
Many people focus only on the bolt pattern, but two other details often cause problems:
- Center bore size: If the donor wheel’s center bore is smaller than your hub, the wheel won’t fit at all. If it’s larger, you’ll need hub-centric rings to avoid vibration.
- Offset: The wrong offset can push the wheel too far in or out. This may cause rubbing or strange handling. Always compare the offset to your stock wheels.
Here’s a quick comparison of common offset changes and their effects:
| Offset Change | Effect on Vehicle |
|---|---|
| Lower offset (e.g., +20mm vs +35mm) | Wheel sticks out more, may rub fenders |
| Higher offset (e.g., +45mm vs +35mm) | Wheel tucks in, may rub suspension |
Factory Wheels That Interchange Easily
Some Jeep models share wheel specs, making swaps simple.
- Jeep Wrangler TJ and YJ (1987–2006): Their wheels usually fit XJ and KJ Cherokees.
- Jeep Liberty (2002–2007): Swaps with XJ and some KJ models.
- Pre-2017 Jeep Compass/Patriot: Early models share the 5×114.3mm pattern.
For the KL Cherokee, only newer Compass and Fiat 500X wheels are a match.
Tips For A Smooth Wheel Swap
- Always test fit a wheel before buying a full set.
- Ask for a road force balance after installation to reduce vibration.
- Use the right lug nuts—Jeep wheels often need a specific type.
- If buying used wheels, check for bends, cracks, or corrosion.
Many owners forget to reset their tire pressure monitoring system (TPMS) after swapping wheels. This can cause warning lights or inaccurate readings.
Common Mistakes When Swapping Wheels
- Ignoring center bore size leads to shaky rides.
- Overlooking offset causes rubbing or unsafe handling.
- Not checking brake caliper clearance can make some wheels impossible to mount.
- Assuming all Jeep wheels are interchangeable—many are not, due to bolt pattern changes in recent years.
For more technical details, the Wikipedia wheel sizing page is a helpful resource.
Frequently Asked Questions
Can I Use Wheels From A Jeep Grand Cherokee On My Cherokee?
No, most Grand Cherokees use a 5x127mm bolt pattern, while the Cherokee usually uses 5×114.3mm or 5x110mm (for KL). The bolt holes won’t line up.
Do I Need Hub-centric Rings When Swapping Wheels?
If the replacement wheel’s center bore is larger than your Cherokee’s hub, you’ll need hub-centric rings for a proper fit and to avoid vibration.
Will Ford Mustang Wheels Fit My Jeep Cherokee?
Some older Mustangs (pre-2014) use the 5×114.3mm pattern, but the offset and center bore may differ. Always check all specs before swapping.
Can I Use Aftermarket Wheels Designed For Another Jeep Model?
Only if the bolt pattern, center bore, offset, and size match your Cherokee’s requirements. Some minor differences can be fixed, but major ones cannot.
What Is The Best Size Wheel For Off-roading With A Cherokee?
For off-roading, a smaller diameter wheel (15 or 16 inches) with a larger tire sidewall helps absorb bumps and protects the rim. Make sure the wheel clears your Cherokee’s brakes.
Choosing wheels for your Jeep Cherokee is more than just matching the number of lug nuts. With the right fitment knowledge, you can upgrade your wheels safely and confidently.
Always double-check specifications before buying and avoid common mistakes. Your Cherokee’s ride, handling, and looks depend on the right wheels so take the time to get it right.
