Jeep’s fuel-saving stop/start system automatically shuts off the engine when you brake to a stop. However, the abrupt shutdowns and quick restarts place heavy demands on electrical components.
If the system enters battery protection mode, it disables stop/start functions to prevent battery drain. But the constant warning lights and lack of auto stopover waste gas and reduce mileage.
Determining what triggered the “Stop/Start Not Ready Battery Protection Mode” and making necessary repairs will get your Jeep’s stop/start working again. Restored automatic shutdowns at traffic lights then translated into improved MPG and lower operating costs.
By methodically troubleshooting, you can identify and address the root cause of the “Stop Start not Ready Battery Protection Mode” activation in your Jeep. Resolve electrical system weaknesses, charging issues, or component failures so stop/start resumes operation to maximize efficiency.
Let’s examine what causes this issue in detail and find potential fixes!
Understanding the Stop/Start System & Battery Protection Mode
Jeep’s stop/start system utilizes a beefier starter motor and upgraded battery to handle the increased demands of frequent restart cycles.
Sensors monitor battery charge, temperatures, and vehicle speed to determine when conditions are right for an auto-stop.
The engine restarts in milliseconds when you release the brake pedal.
If certain parameters fall outside optimal ranges, the system enters not ready battery protection mode – disabling stop/start functions to prevent battery drain or damage.
By identifying what triggered this self-preservation measure, you can make corrections so stop/start resumes working.
Signs of a Not Ready Battery Protection Mode
There are a few key indicators that your Jeep has entered the start/stop not ready battery protection mode and disabled the auto-stop function:
- The stop/start indicator light on your gauge cluster will blink continuously instead of displaying solid green 10-15 seconds after the engine starts up.
- You’ll notice the engine fails to automatically shut off when braking to a complete stop at traffic lights or stop signs.

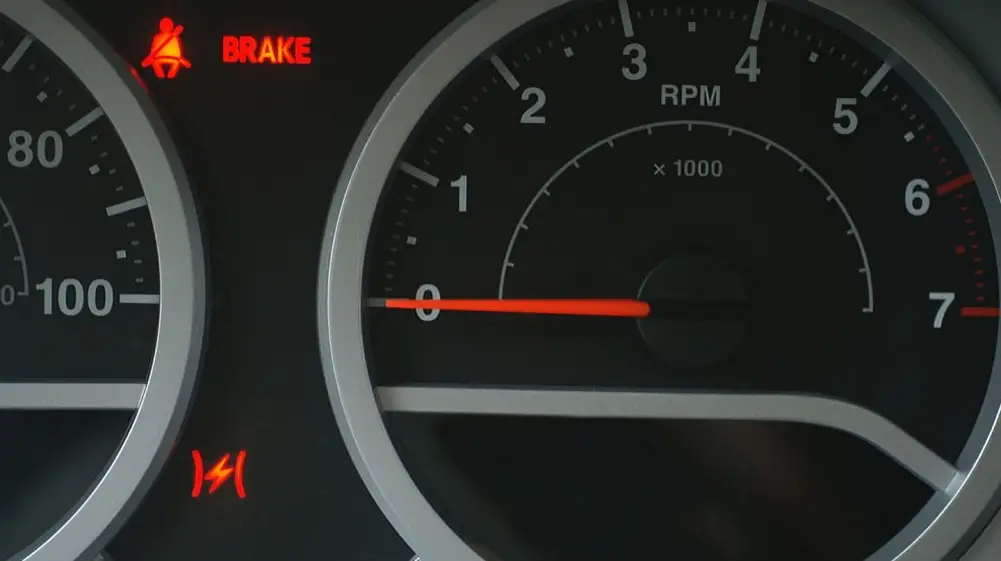

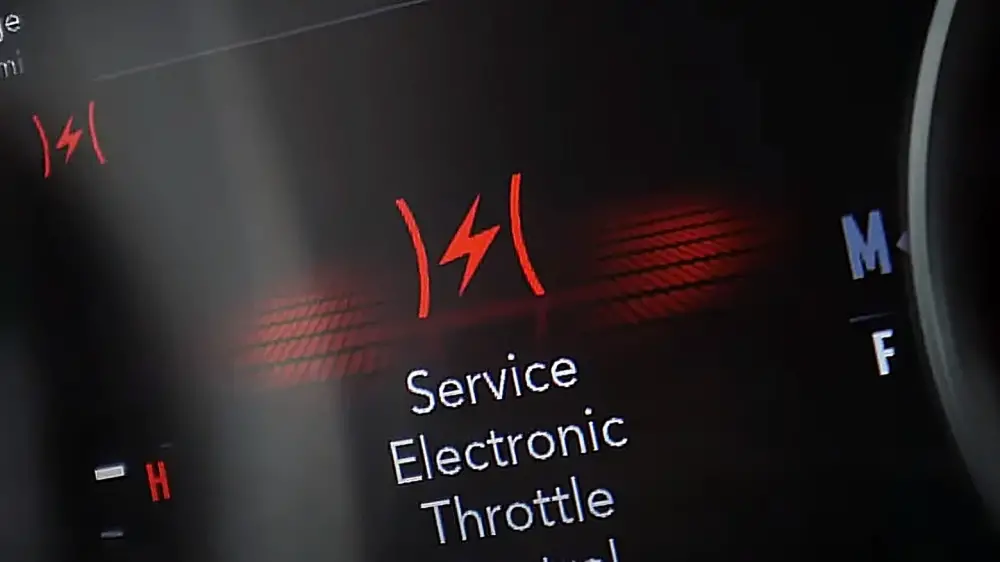

- Warning lights may illuminate on the dash related to battery or charging system faults. Common alerts include the battery light, check engine light or warnings for voltage too high/low.
- The auto stop time displayed on your information cluster screen, which tracks cumulative engine shutdown time for mileage impact, will cease counting higher as the stop/start halts functioning.
- During longer drives, your average fuel consumption reading may suddenly seem higher than normal without the stop/start-induced efficiency gains.
Keeping an eye out for these indicators of a not-ready battery protection mode allows you to spot the problem early.
Then you can troubleshoot what parameter triggered the preservation status so stop/start can be reset. Restoring system functionality maximizes MPG benefits.
Stop/Start Not Ready Battery Protection Mode: 4 Causes & Fixes
There are a few typical culprits for stop/start not ready activation:
1. Faulty Battery
A failing lead-acid battery lacks the robustness for this taxing duty cycle. Age, heat damage, or normal wear can lower cranking amp capacity over time. Electrical shorts also cause premature failure.
Use a multimeter to test cranking and reserve capacity against factory benchmarks. Then, verify charging voltage and output levels meet specifications when the engine is running. This reveals weak batteries or malfunctioning alternators.
If the charging system checks out fine but battery testing reveals reduced cranking amp capacity or low reserve limits, try reconditioning the battery first before replacement.
Fully recharge to 12.8 volts and run manual discharge/charge cycles to see if you can regain performance.
However, if capacities still fall below factory specifications after attempts to revive it, replacement becomes necessary. In that case, swap in a new absorbent glass mat (AGM) battery designed specifically to withstand the frequent restart cycles of stop/start duty.
Seek out a high-quality model rated for at least 7-850 cold cranking amps and 12-volt capacity.
2. Issues with the Charging System
The stop/start system places heavy electrical loads on the battery during restart sequences.
If the alternator can’t maintain a sufficient charge, voltage drops too low triggering battery protection protocols. Causes include a failing alternator, loose connections, or a damaged wiring harness.
Clean and tighten battery cable ends, ground straps, and wiring harness plugs. Check for cracked housings, exposed wires, and corrosion buildup, indicating loose or damaged connections unable to handle high loads.
Loose battery cables, ground straps, and electrical harness plugs that have worked free over time can cause sporadic electrical issues like premature stop/start battery protection mode.
Thoroughly inspect all charging system connectors for any visible corrosion, oxidation, or green buildup indicating decay.
Use a wire brush to clean contact points down to shiny metal. Check for frayed wires, damaged or melted plugs, and loose screw terminals that may be interrupting flows.
Reset all connections firmly and use dielectric grease on their interfaces to prevent moisture and oxygen from penetrating.
What may appear like a battery or alternator failure can sometimes stem from resistors forming in a degraded junction point. Restoring robust connections maintains reliable current and voltage flows.
3. Software Malfunctions
The vehicle computer relies on data from battery and system sensors to decide when conditions are optimal for an auto stop.
If these components get damaged or calibration settings get corrupted, it will default to protection mode needlessly.
Read any diagnostic trouble codes stored in computer memory related to electrical or battery faults. Isolate the affected components and begin diagnosis procedures. Codes provide a useful starting point before testing.
If stored diagnostic trouble codes point to open circuits or voltage dropouts, closely inspect all fuses and relays associated with stop/start charging and control functions.
Use a multimeter to check for continuity across each unit and verify they have not blown. Warning lights accompanied by fuse failures likely indicate short circuits or excessive loads damaging the protective components.
Any blown fuses must get directly replaced with equivalents, while spent relays necessitate replacements matched to output amp loads.
Once any underlying short is repaired, restoring full function to fuses and relays helps ensure uninterrupted voltage to stop/start systems.
4. Other Potential Causes
Extreme ambient temperatures, repeated short drives before the engine fully warms and aggressive driving patterns can also prompt the system to stand down temporarily.
Battery protection aims to prevent damage when demands exceed capacity.
Test drive while closely observing the stop/start system in operation. Note any warning lights, shutdown delays, or failure to auto-restart from stops. Does normal function resume temporarily? Logging behaviors aid troubleshooting.
Bench testing a suspect alternator by directly applying pulley rotational force reveals if internal components still adequately generate charging current.
Monitoring output performance scores against factory amperage specifications at various RPMs validates actual working conditions.
Once the alternator falls below acceptable thresholds due to worn bearings, brush degradation, or demagnetized rotor assemblies, replacement becomes necessary.
Stop by your dealer or reputable auto electric shop and provide year/make/model details so you get an exact-fit OEM-quality replacement alternator with the necessary high output ratings and pulley dimensions.
Once installed, recheck voltages at the battery and main fuse box. Voltages should climb to between 13.8 to 14.2 volts when accelerating engine RPMs.
Preventing Future Activation: A Proactive Approach
Once repairs resolve the underlying trigger, take proactive steps to keep your Jeep’s stop/start working reliably by:
Maintaining Electrical System
Stick to factory-advised charging system inspection intervals. Check belt tension, alternator output, and battery load tests.
Perform voltage drop tests on cables yearly. Address minor issues before cascading failures.
Allowing Proper Warm-Up
In cold weather, drive gently for at least 8-10 minutes before stop/start engages.
Let the engine, battery, and cabin heat up to operating temperature to prevent premature cycling.
Considering Battery Upgrade
If the factory battery lacks the endurance for your usage habits, install a higher-capacity AGM battery designed specifically for stop/start applications.
Seek 800+ cold crank amps and reserve capacity over 150 minutes minimum.
Driving Smoothly
Aggressive acceleration and braking just before stopping can strain the charging system.
Drive steadily with gradual speed changes instead to achieve optimum fuel efficiency. Ease off the pedal well in advance of stops.
Conclusion
When your Jeep’s stop/start system gets stuck in “Stop/Start Not Ready Battery Protection Mode,” it causes annoying warning lights and wastes fuel during idling.
But by diagnosing the underlying electrical or charging issue triggering the preservation status, you can make targeted repairs.
Getting stop/start fully operational again then takes advantage of the automatic shutdowns and restarts to improve fuel efficiency and save money.
Maintain your Jeep’s electrical components properly, allow adequate warm-up time, and drive smoothly to prevent future “Stop/Start Not Ready Battery Protection Mode Jeep” activation.
By keeping the stop/start technology running efficiently, your Jeep will reap the maximum fuel savings benefits.
