Stability control is a system that is quite essential nowadays when it comes to cars. We are not living in the 60s anymore with no technologies to help the driver keep the car on the road in bad weather conditions or at high speeds.
So, what might be the cause of this warning light? Frankly, malfunctions in several key systems can cause this issue to arise. Among the most common culprits are faulty wiring, issues with the yaw and wheel speed sensors, a low battery, and ABS control module malfunctions.
Our experts recommend resetting the Jeep’s computer before proceeding with expensive repairs.
Technology has moved a long way since these times and Jeep is also following this path of creating vehicles that are safe for the driver and also the passengers.
When it comes to safety, electronic stability control is probably a must these days. Each Jeep has it and sometimes unfortunately this system can malfunction.
You will get the “Service Electronic Stability Control Warning” whenever the electronic stability control malfunctions. This is a sign that should not be ignored and this is why we are here to help you out.
First, we are going to learn more about how stability control works, then we are going to cover the meaning behind the service electronic stability control Jeep, as well as the prime causes for this message to appear as well as the fixes.
So without further ado, let’s dive into the article.
What Is ESC And How Does It Work?
For those who don’t know, ESC is the primary safety system in every vehicle out there. This system is known under many names but in Jeeps, it is simply known as the Electronic Stability Control (ESC).
This system works with the help of many different sensors in the car to determine when the vehicle starts to lose traction.
In other words, when the vehicle has wheelspin or is skidding. Having a wheel spin is a red flag for this system.
Whenever this system notices that one of the wheels is spinning and is left without traction, the system will feed power to the other wheels to balance and avoid the vehicle completely losing traction.
All this process happens in a fraction of a second, the sensors immediately notice when a wheel is spinning freely and the car will react.
The ESC system also adjusts the throttle response and reduces the throttle input when it is activated. Thus, preventing wheel spin in the process.

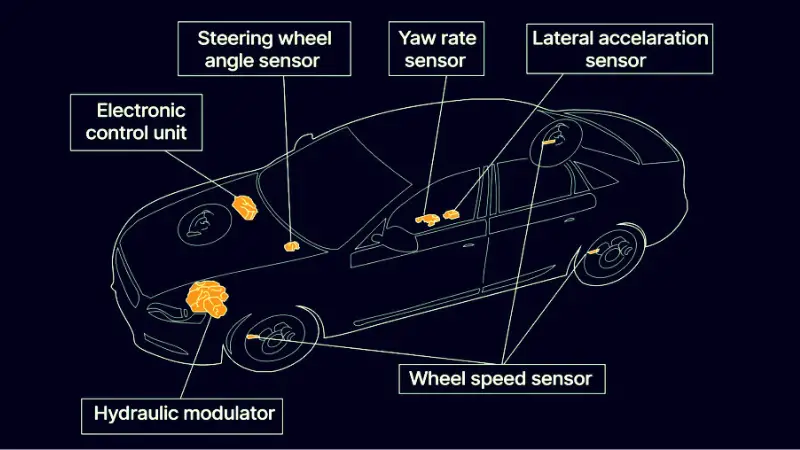

When it comes to the technology behind this system, there are some different systems and sensors that make the ESC system function properly.
The sensors that are integral to this system are the following:
- Yaw sensor (measures the rotation rate of the car)
- Vehicle Speed Sensor (measures speed)
- Wheel Speed Sensors (measure the wheel speed)
- Steering Wheel Angle Sensor (detects the position of the steering wheel)
Also, the ABS plays a huge role in the ESC system and these two systems are closely interconnected and depend on the same sensors.
What Does Service Electronic Stability Control Meaning?
Now let’s take a look at the meaning behind the service ESC Jeep warning. What does this message mean?
The ESC as we noted is the electronic stability control, this system activates once the vehicle starts to lose traction.
So, whenever this loss of traction occurs, it is normal for the ESC to kick in and start flashing. This means that the system is working, quite similarly to the ABS.
But if you notice the service electronic stability control Jeep Cherokee warning on the dash, this means that there is a much bigger problem.
This problem turns off your ESC or makes it malfunction. And you don’t want that happening to you.
This warning means that your ESC system is off or not functioning correctly. This problem has to be uncovered by a diagnostician.
A diagnostician is a man with a computer that can access the OBD2 port and scan the Jeep for codes. Then based on the codes, he can determine what could be wrong with the vehicle and what is causing the Jeep warning light.
Then, he can move on from there and replace the faulty parts. But more on that, we are going elaborate later on.
Also, if you have an OBD2 scanner, you can do this by yourself and scan the Jeep for codes. These tools are fairly inexpensive and can be purchased in online stores like Amazon for a really low price.
Discover the top OBD2 scanners that experts have meticulously tested to help you make an informed decision. Here are our unique recommendations:
It is important to take this problem seriously and focus on solving it before getting in trouble because of the faulty ESC system.
11 Easy Repair Hacks for Service Electronic Stability Control Jeep
Now once we familiarize ourselves with the problem when we have service electronic stability control alerts, we can move on and cover some of the causes for this problem.
Knowing the causes is important if you want to diagnose this problem quickly. Later on, we are also going to learn how this problem is diagnosed as well.
1. Steering Angle Sensor Calibration
One of the most common causes of this problem can be the steering angle sensor. This sensor is located on the steering column and monitors the position of the steering wheel.
Sometimes it happens that we replace the battery and reset everything on the car. If this happens, you might notice the ESC warning.
But this doesn’t always mean that the problem is serious. In some cases, you only have to calibrate the steering wheel sensor.
You can do this by turning on the car and rotating the steering wheel all to the left until it stops and then rotating the steering wheel to the right in the same fashion.
This will calibrate the sensor and the problem will disappear from the cluster. So, we often recommend people do this method before they jump into doing more serious troubleshooting since in many cases, the problem lies in the little things such as this.
Now let’s move to the next cause.

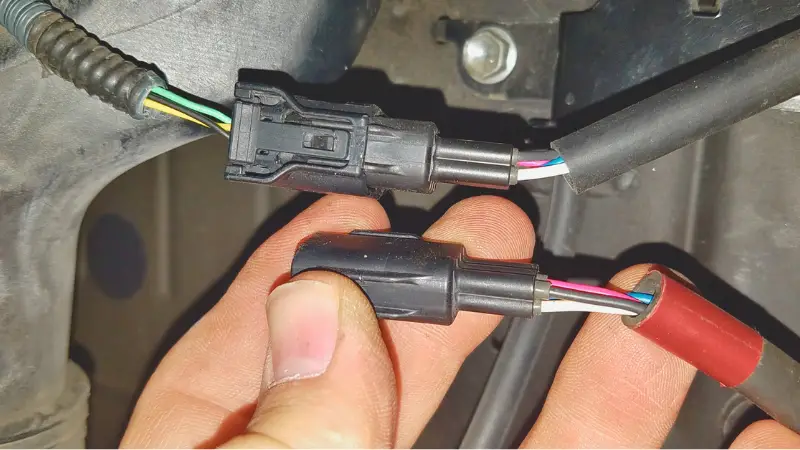

2. Faulty Wheel Speed Sensor
Another very common failure point that can trigger the Jeep warning is the wheel speed sensor.
So, what is a wheel speed sensor? Well, this is a special sensor that is mounted right behind the wheel.
There are four of these sensors on each car since every car has four wheels. These sensors get a reading from a component known as a tone ring.
The tone ring is a ring that has grooves and the sensor reads the input that the ring gives when the wheel is spinning. By doing so it helps the ABS and ESC to function properly.
Sometimes this sensor can fail and cause problems like the service ESC warning.
Also, the ring can fail or end up clogged up with debris and the sensor cannot get a proper reading. In some cases, the wiring of the sensor can malfunction.
These options are all on the table when it comes to the wheel speed sensor. Luckily, replacing one is not that expensive.

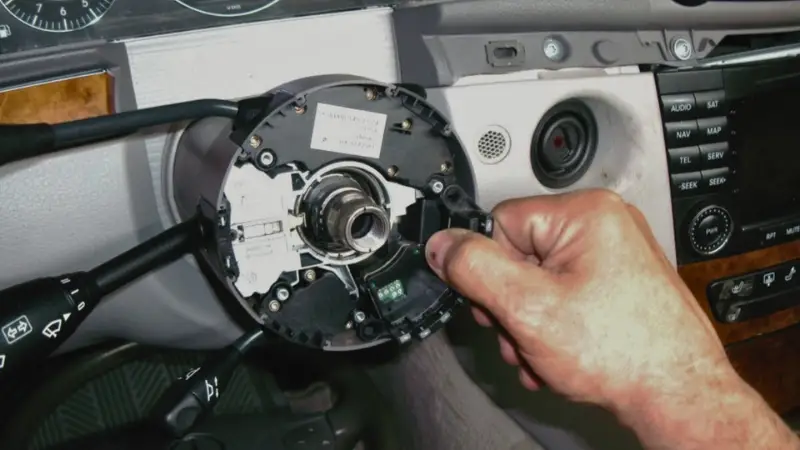

3. Faulty Steering Angle Sensor
Another very common failure point is the steering angle sensor. We noted previously that this sensor should be calibrated to work well.
But it can also fail internally or possibly the wiring of the sensor can fail and cause this problem.
If the sensor does not get a reading, this will alert the computer and the computer will show the warning.
The location of this sensor is on the steering column itself. So, in order to replace it, you will have to remove the steering wheel and then remove the sensor from its position and replace it with a new one.
Then you need to recalibrate the new steering angle sensor and the car’s computer will do its thing. Sorting this problem is somewhat more expensive compared to solving the issue with the wheel sensor that we noted previously.

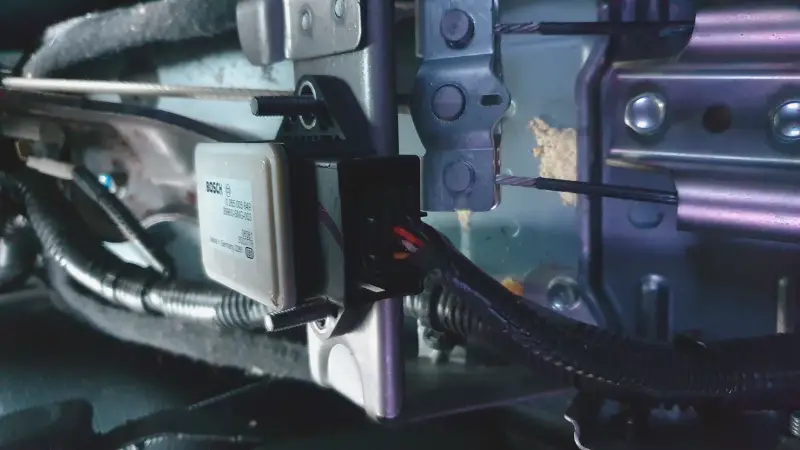

4. Faulty Yaw Sensor
Another very common problem is the yaw sensor. So, what is a yaw sensor, and where is it located?
A yaw sensor is a special sensor that measures the center of gravity of the vehicle. The center of gravity is very important when it comes to the ESC system.
This sensor detects whenever there is something weird going on with the stability of the car. If the car is leaning on one of the sides, this sensor will detect and tell the computer to activate the ESC system.
The yaw sensor is mounted either below the driver’s seat, or below the passenger seat. This sensor lays horizontally and detects abnormalities.
What can happen is that his sensor can fail and trigger the Jeep Wrangler electronic stability control warning light. Replacing it might be the only option and this can be somewhat expensive to do.
A typical yaw sensor can cost up to $600 only for the part and with labor you can end up paying $750.

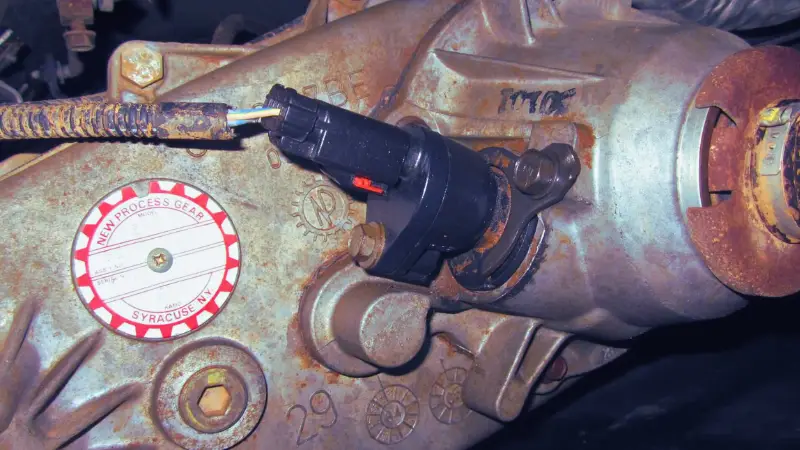

5. Faulty Vehicle Speed Sensor
A faulty vehicle speed sensor can also be a trigger for the warning. So, is this sensor the same as the wheel speed sensor?
Well, not quite. The vehicle speed sensor is a different type of sensor. The vehicle speed sensor as its name implies measures the vehicle’s speed.
The sensor is mounted on the transmission and getting a hold of it can be somewhat problematic because of its location.
This sensor measures speed, helps the car’s odometer function properly, and measures the mileage correctly, and it also affects the work of the ABS and ESC systems.
6. ABS Pump/Relay/Control Module Malfunction
The ABS is the anti-lock brake system that each modern car has. And this system is deeply intertwined with the ESC. They use the same components and sensors to work, like the vehicle speed sensor, wheel speed sensor, etc.
Whenever there is some kind of problem with the ABS, this problem can be carried over to the ESC.
Common problems with the ABS include bad wheel speed sensors. More serious problems can include issues with the ABS pump, ABS control module, ABS motor, as well as relay for the ABS.
Most of these issues are very expensive to fix. But if you want to remove the service electronic stability control Grand Cherokee, you will have to replace these components for everything to work properly.
7. Faulty Wiring
Bad wiring is another very common issue for this warning.
Cars are full of wiring as you probably know, wires go everywhere, and over time they can get damaged. Connectors can rust out on the inside and lose contact. Wires can be damaged by foreign objects or by rodents.
Everything is possible. This is why inspecting the connectors before doing a replacement of a certain part is one of the mandatory things that you should do as an owner.
In many cases, the issue can simply be a poor connection between the sensor and the wiring harness, or the wires that get melted or chewed up.
8. Low Battery
A low battery can also trigger the Jeep warning message. A low battery is a car’s worst enemy.
When you have a rather unhealthy battery and are constantly low on power, you will face strange issues.
Components can malfunction, sensors can get wrong readings, etc. Many things can go wrong. So, checking out the battery’s health is always a good idea.
Also, make sure that the terminals are all in good condition and they don’t have rust around them.
9. Faulty Traction Control System
Think of the Traction Control System (TCS) as your Jeep’s superhero for preventing wheel spin. The Jeep might struggle to manage wheel spin during acceleration when it’s not feeling up to the task.
So, if you’re getting that Service ESC alert, it could be pointing to a hiccup in the Traction Control System. This system is crucial for keeping your wheels grounded and your ride smooth.
10. Faulty ABS Ring or Tone Wheel
Now, imagine the ABS ring and tone wheel as the musical duo that helps your Jeep dance smoothly on the road.
If they’re out of tune or missing a beat due to damage, it can mess with the harmony between the wheel speed sensors and the ESC system.
This disruption in their rhythm might be the reason behind that Service ESC alert, signaling that these components need a check-up to keep your Jeep grooving safely.
11. Blown Off Fuse
And last but not least is the blown-off fuse. Every component in the car has a fuse and fuses have the purpose of blowing to prevent the wiring from catching fire.
So, there could also be a possibility that a fuse has failed and triggered this problem. Just remove the fuse box cover and inspect the fuses and if there are any that have failed, just replace them and this will hopefully solve the problem.
Resolving the Service Electronic Stability Control Warning
Now let’s learn more about the possible fixes for the Jeep warning. How can we fix this problem?
Well, the first thing you probably want to do is to reset the computer. Sometimes the computer can get confused and stuff like this can happen.
So, to do this, you will have to remove the positive terminal and leave the car like that for 30 seconds, then reconnect.
Once you reconnect the positive terminal, check if the warning disappeared. If not, try to recalibrate the steering wheel column sensor. Do a full rotation to the left and a full rotation to the right.
If this doesn’t help, the problem is somewhere in the sensors or the ABS. For this, you will need an OBD2 scanner to scan the car for codes.
Each sensor will give you a different code. Then you can move on from there and replace the sensors or fix the connections if they are broken.
What Does Service Esc Mean?
The ESC system is the electronic stability control. This system prevents wheel spin and skidding. It is a very crucial system that is designed to deliver maximum safety for the driver and passengers.
How To Reset Jeep Electronic Stability Control?
This system can be reset simply by removing the positive terminal from the battery and then putting it back in position. You can also get an OBD2 reader and clear off the codes manually.
Is It Safe To Drive With ESC Warning?
No, it is not safe, this means that the system has malfunctioned and this system has to be fixed as soon as possible because you don’t have the ESC system available.
Conclusion
Overall, the problem with the service electronic stability control warning is a very serious issue.
You should never ignore a problem connected to your Jeep’s safety systems. Since safety systems guarantee our health and well-being.
We might not need them very often but having them properly working in tight situations is crucial. This is why we advise that you learn the common causes that we listed and look to diagnose this problem.
