You’re cruising down the highway when suddenly your Jeep Wrangler sputters and stalls, leaving you stranded. After a few terrifying minutes, it restarts and gets you home.
But now you’re worried – why your Jeep Wrangler dies while driving but restarts?
A Jeep that randomly dies while operating can leave you shaking your head. It’s disruptive, stressful, and downright dangerous, especially at higher speeds.
But don’t panic – with some diligent troubleshooting, you can get to the bottom of the issue and prevent future stall-outs.
The problem typically stems from either an electrical glitch or fuel delivery failure. By methodically examining specific systems and components, you can zero in on the root cause and make necessary repairs. With the right knowledge and diagnostic process, you can get your top-down Wrangler running right.
A Jeep Wrangler randomly dying and restarting is a frustrating and dangerous issue that has many possible causes. Let’s explore the most common culprits and solutions when a Jeep cuts out on the road but can restart.
Jeep Wrangler Dies While Driving but Restarts: 7 Common Causes
Electrical issues like loose battery cables or bad crankshaft position sensors can cause abrupt engine cutoff.
On the fuel side, common culprits include dirty fuel filters, failing fuel pumps, clogged injectors, and problematic throttle position sensors.
Let’s walk through some common causes and their troubleshooting steps.
1. Faulty Crank Position Sensor
The crank position sensor tracks the crankshaft speed and position, sending data to the fuel injection and ignition systems.
If this sensor fails or has compromised wiring connections, the engine may abruptly lose power or stall completely while driving.
After coasting to a stop and sitting for a few minutes, the engine may then restart and resume normal operation – at least temporarily.
To prevent dangerous stall-outs, replace the suspect crank position sensor and inspect sensor wiring for breaks or shorts.
Use an oscilloscope to confirm the new sensor generates accurate speed signals. Proper crank position data keeps ignition and fuel delivery timed correctly.

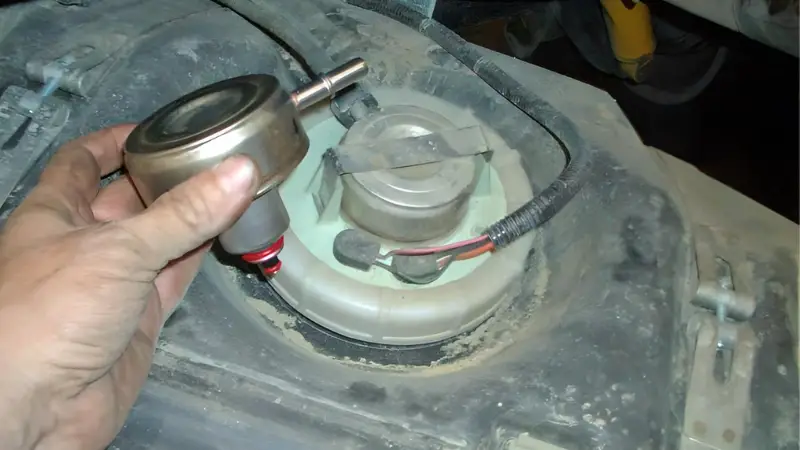

2. Failing Fuel Pump
The electric fuel pump is responsible for drawing gasoline from the tank and delivering pressurized fuel to the injection system at the required volume.
An aging pump may begin to lose pressure capacity and flow intermittently before finally failing outright.
When the pump cuts out momentarily, fuel flow is interrupted and the engine dies. But after sitting, residual fuel pressure may bleed back down and allow the pump to restart, letting the engine fire back up.
To prevent being stranded, swap out the weak pump for a new high-flow OEM replacement unit.

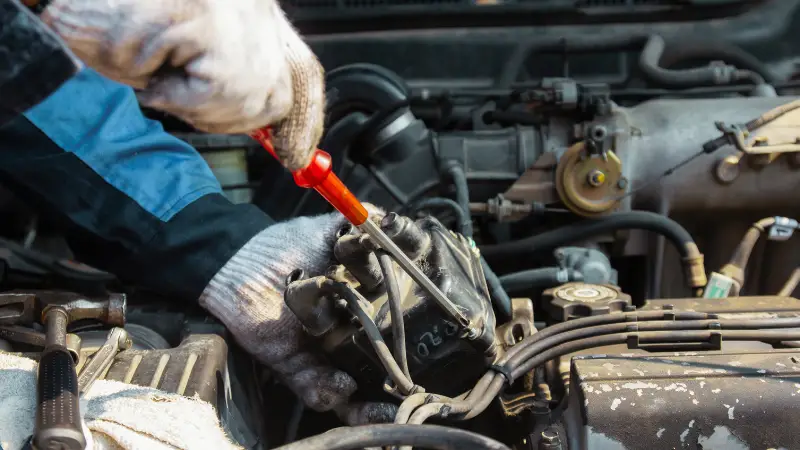

3. Faulty Ignition Coil
The ignition coil transforms 12v DC into thousands of volts needed to jump the spark plug gap and ignite compressed air-fuel mixtures.
Cracked coil insulation and electrical shorts can cause sudden failure. No spark means unburned mixtures, engine stall, and cutoff.
However, once heat dissipates after stall-out and there’s no excessive draw, the coil may function again temporarily on restart.
To prevent dangerous shutdowns, replace old ignition coils and inspect wiring, connectors, and spark plug gaps. Maintain charge delivery to the spark system.
4. Weak Alternator or Battery
The alternator charges the battery while driving to power all electrical components including the fuel pump, sensors, and ignition system.
A failing alternator or degraded battery causes the electrical system voltage to drop.
When systems lack sufficient current, the engine cuts out abruptly. Allowing everything to cool down and reset.
As a result, your Jeep dies while driving but restarts after a few minutes. Diagnose charging issues and replace faulty alternator or aging battery.

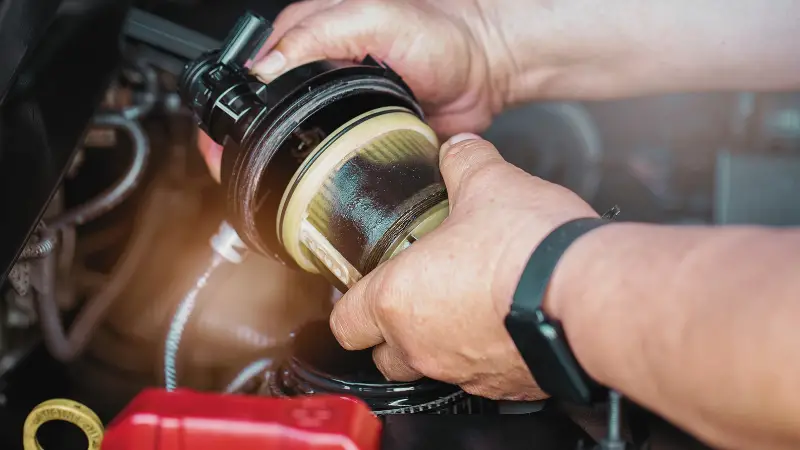

5. Clogged Fuel Filter
The fuel filter is the last line of defense protecting sensitive fuel injectors, pumps, and rails from dirt and contaminants.
Over time, this filter can become clogged with debris, restricting the volume of fuel making it to the high-pressure pump.
Starved of supply, the pump cavitates and causes lean conditions, misfires, and eventual stall-out. The system may self-prime after cooling allowing short-term operation until happening again soon.
Always replace fuel filters per maintenance schedule to ensure unrestricted flow.

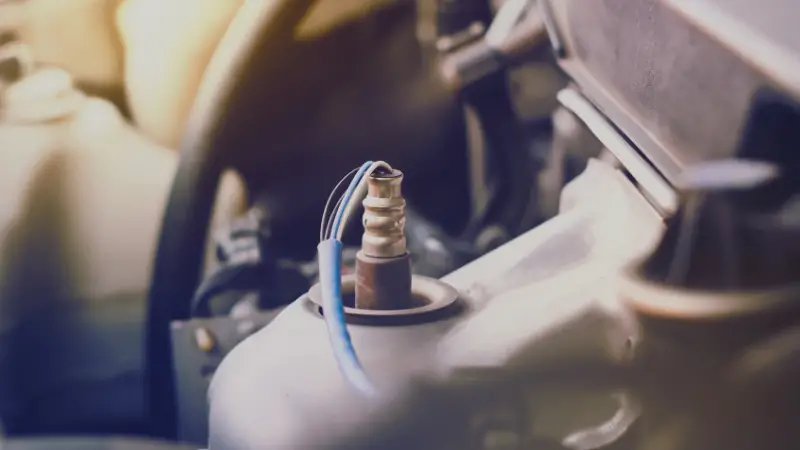

6. Faulty MAF or O2 Sensors
The mass airflow (MAF) and oxygen (O2) sensors provide the engine computer with data on intake air volume and exhaust gas content.
If readings get skewed by faulty sensors, spark, and fuel delivery are no longer properly calibrated.
This leads to temporary lean or rich conditions that cause the engine to cut out abruptly mid-drive.
Upon restart, sensors may reset before failing again. Replace damaged sensors and inspect wiring connectors. Verify calibration post-replacement.

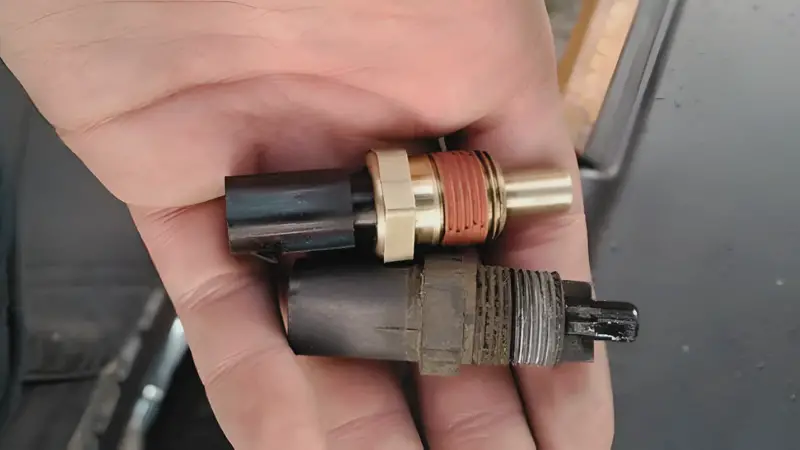

7. Coolant Temperature Sensor Failure
This sensor reports engine coolant temperature data to the computer. The ECU uses this input to adjust aspects like fuel mix and spark timing for cold starts and warm-up cycles.
If the sensor fails, engine operating parameters fall out of spec.
Eventual stall-out is likely as control functions lag actual temperature. The car may restart once temperatures equalize before dying again if unaddressed.
Swap in a replacement coolant temperature sensor matched for your Jeep’s engine.
Preventing Future Stalling Episodes in Your Jeep Wrangler
Once you’ve solved the root cause of your Jeep stalling, it’s crucial to take preventative steps ensuring it doesn’t happen again.
By sticking to a proper maintenance schedule, upgrading components, and carrying emergency gear, you can avoid repeat breakdowns.
1. Follow a Strict Maintenance Schedule
The best way to maximize reliability is closely adhering to factory-recommended service intervals. These include:
- Spark Plugs/Wires: Replace every 30K miles or 2 years. Check plug gaps and wire resistance regularly. Bad plugs can’t properly ignite the fuel, while cracked wires cause misfires.
- Sensors: Test crankshaft, camshaft, and oxygen sensor function every 30k miles. Ensure connections are clean and secure. Faulty sensors provide inaccurate input to engine computers.
- Fuel System: Replace fuel filters every 30-60K miles for optimal flow and pressure. Inspect pump, injectors, and tank for leaks/clogs annually. Clean injectors prevent lean conditions.
In addition to scheduled component swaps, perform complete tune-ups every 12 months or 20,000 miles.
This includes computer diagnostics, ignition timing adjustment, idle speed setting, and sensor calibration. Detailed service records prove vital for spotting problems early.
2. Invest in Quality Fuel and Filtration
Another key prevention element is high-grade fuel and filtration to avoid contaminants that can hinder performance.
Only use Top Tier gas that meets enhanced detergency standards, preventing carbon buildup on valves and rings.
For diesel, treat tanks with anti-algae additives to combat microbial corrosion. Always pair clean fuel with a water-separating filter to remove moisture and particulates down to 4 microns.
Robust filtration and fuel quality reduce deposits while protecting sensitive components.
3. Upgrade Vulnerable Parts
Consider modifying problematic systems with heavy-duty components less prone to failure:
- Battery: Upgrade to an absorbed glass mat (AGM) battery for increased cranking power, extended life, and vibration resistance. Prevent voltage drops.
- Fuel Pump: Install an in-tank pump with 40% higher flow capacity to maintain optimal pressure during acceleration. Maintain reserve capacity.
- Wiring: Replace original harnesses with thicker gauge, shielded wires that resist cracking or loosening of connections.
4. Safety Cutoff Switch
For an added layer of protection, install an aftermarket fuel cutoff switch within the driver’s reach.
If the engine cuts out, quickly toggle the switch to shut off the electric fuel pump while coasting to a safe stop.
This prevents an engine compartment fire in case of a stall at speed. The switch also disables the fuel system in an accident, cutting off potentially dangerous leaks.
5. Carry Emergency Gear
Even reliable Jeeps still benefit from carrying certain gear in case issues arise on the trails:
- Mobile Battery Charger: Quickly restore charge after repeat failed start attempts to get running again.
- Fuel Injector Cleaner: Contains detergents to dissolve deposits if stuck open injectors cause a stall.
- OBD2 Code Scanner: Identify failures of sensors, ignition components, or fuel systems for roadside diagnosis.
- Basic Tools: Spark plug socket, jumper cables, jack stands, and fuel transfer kit enable trail repairs.
By combining vigilant maintenance, fuel treatment, key upgrades, and onboard emergency equipment, you can feel confident your Jeep won’t leave you stranded again.
Pay attention to warning signs, service intervals, and engine needs for lasting reliability. Then hit those winding backroads with peace of mind.
Conclusion
When your Jeep Wrangler dies while driving but restarts, it can be incredibly frustrating and unnerving. But through necessary repairs and component replacements, you can get your Jeep running smoothly once again.
Be proactive about maintenance, upgrade vulnerable parts, and always carry emergency equipment and tools. Follow factory service guidelines religiously, use high-quality fuel, and install preventative components like heavy-duty batteries and upgraded fuel pumps.
Taking a diligent approach dramatically cuts the risk of repeat stall-outs down the road.
Keeping your classic Jeep Wrangler in peak operating condition takes commitment – but pays off hugely in daily driving dependability and off-road peace of mind. Stick to tune-up schedules, upgrade wisely, and keep backup supplies on hand.
