Imagine this – you step into your SUV and turn the key, only to see that Jeep Wrangler all warning lights on! Fear not! In this article, we’ll tell you all about the main causes behind this common issue, as well as how to get rid of it once and for all.
Why Are All the Warning Lights turned on? Well, the most common causes include battery issues, alternator problems, damaged control modules, and terminal corrosion. If you are the proud owner of a Wrangler, make sure to keep an eye out for these problems.
The warning lights are one of the main ways the Jeep communicates with its driver. So, you can understand why knowing why all of them have turned on suddenly can be of importance.
Each light on the dashboard has its level of significance, as well as a message unique to itself. In addition to helping with troubleshooting, today we’ll help you understand the meaning behind each of these lights too.
So, without further ado, let’s get started!
Jeep Wrangler Dashboard Symbols and Meanings
Before diving into what causes the Jeep Wrangler all warning lights on issue, we will first give you an overview of what dashboard warning lights are.
Since it hit showroom floors in 1986, the Wrangler has gone through various changes and improvements. The same goes for the Jeep Wrangler dash warning lights too!
Initially, there were only a handful of lights on the dashboard. But, that number has gone up significantly as the Jeep became more technologically advanced with each generation.
If you observe Jeep Wrangler dashboard lights closely, you’ll see that they come in three main colors – Red, green, and yellow. The significance of each color goes as follows.
- Red – An Issue Needs Urgent Attention
- Green – A System Has Activated
- Yellow – Requires Attention, But Not Immediately
Now, let’s focus our attention on some of the most common JK instrument cluster lights.
1. Electric Power Steering Light
If you spot a Jeep dash light A with an exclamation point next to a steering wheel symbol, there is an issue with the electric power steering system.
Several factors can lead to this warning light such as overheating, hydraulic fluid leaks, or electrical issues.
2. Electronic Throttle Control (ETC) Light
When talking about the Jeep Wrangler all warning lights are on issue, we cannot glance over the ETC warning light. It lights up in red color and has the shape of a lightning bolt.
As you might have already guessed, this light indicates that there is an issue with the ETC system.
A constantly lit ETC light indicates that the system needs to be serviced, but if you notice the ETC Jeep dash lights flashing on and off, you need to pay immediate attention to it.
3. Charging System Light
Alternator failure, broken drive belts, and battery issues among other electrical faults can lead to a red battery symbol lighting up on the dashboard.
When this light is on, it indicates that the vehicle doesn’t have enough power to keep the electrical components functioning properly.

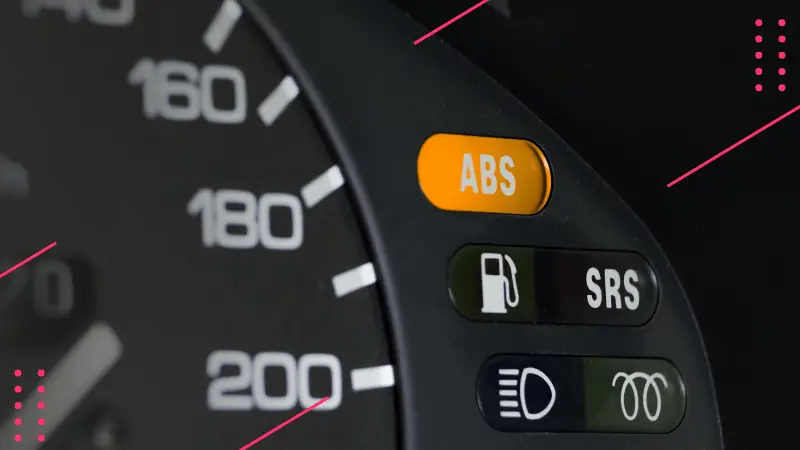

4. ABS Light
So far in our discussion on the Jeep Wrangler, all warning lights are on an issue, we have only looked at red-colored dashboard lights.
Let’s change that by focusing on the ABS warning light, which lights up in yellow.
The Anti-Lock Braking System (ABS) is an important modern safety technology that prevents drivers from losing control by preventing wheel lockups under aggressive braking.
Faulty wheel speed sensors and brake booster issues can cause this warning to light up.
5. Start/Stop Warning Light
Several internal issues can cause the Jeep Wrangler auto start-stop warning light to turn on.
These range from minor problems like an unbuckled driver-side seat belt, freezing temperatures, and a discharged battery to major issues like extreme steering angles.
6. 4H and 4L Warning Lights
As we mentioned earlier, yellow-colored lights don’t necessarily mean that there is something wrong with your Jeep. The 4H and 4L lights are the perfect examples of this.
The 4H Jeep Wrangler lights on the dash when the driver engages its four-wheel drive system in high-range mode.
Similarly, the 4L symbolizes that the transmission is in low-range mode.

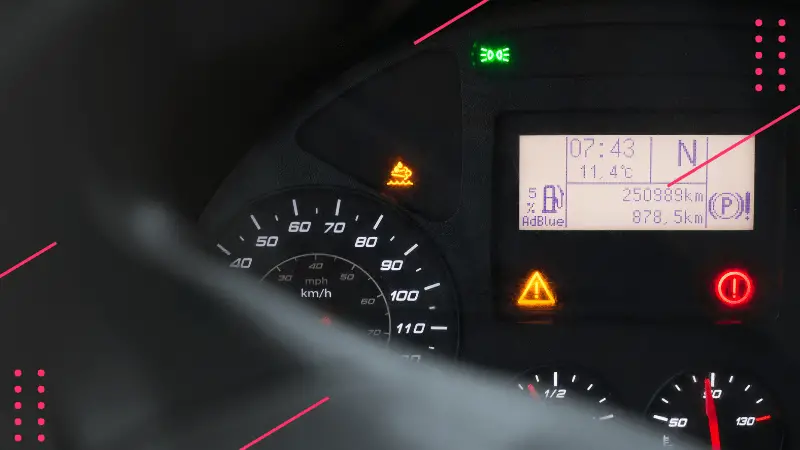

7. AdBlue Warning Light
This dashboard warning light is unique to the models powered by diesel engines. Diesel Wranglers utilize Urea fluid to reduce harmful emissions.
When these levels go low, this warning light will illuminate as an indication.
As soon as you spot this warning, all you have to do is fill the AdBlue tank with the recommended amount of urea. Remember to wait a few moments before firing up the engine.
With that introduction out of the way, let us look into the main causes of Jeep Wrangler dash lights going crazy.
Jeep Wrangler All Warning Lights On: 7 Quick Fixes for Resolving
Pinpointing the source that causes all the warning lights to turn on can be a difficult task, but you can make that process easier with the guidance of our experts.
If the Jeep Wrangler dash lights come on without explanation, here are some systems you should take a look at.
- Battery Issues
- Poor Terminal Connections
- Alternator Issues
- Terminal Corrosion
- Blown Fuses
- Additional Accessories
- Issues With Control Modules
Let us go through these issues one by one and learn how they lead to your Jeep Wrangler dashboard lighting up like a Christmas tree.

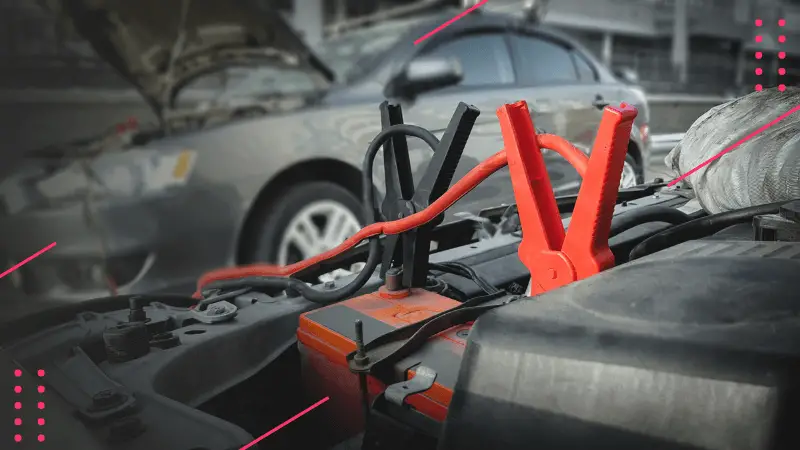

1. Battery Issues
If you know anything about vehicle repairs, you should have seen this one coming from a mile away.
Problems with the battery are the #1 cause of all electrical failures, including turning Jeep Wrangler all warning lights on.
As batteries age, the individual cells inside them tend to go bad. This causes voltage fluctuations that can result in all dashboard warning lights turning on and off out of the blue.
Ideally, replacing the battery every 4 to 5 years is a great way to keep this problem at bay.
However, this is not the only battery-related issue Jeep owners should be wary of. If you live in an area where it rains most of the time or take your Jeep wading through rivers frequently, water accumulation can also make the battery go bad.
In the Wrangler, the main computer plug and the battery compartment are known to accumulate water.
In this case, thoroughly cleaning these components as well as their connectors might be enough to restore your dashboard to working order.
2. Poor Terminal Connections
Issues with the battery terminal connections can also result in Jeep Wrangler dash lights going crazy.
9-out-of-10-times, tightening the terminal connections restores the electricity flow, restoring the dashboard to its original conditions.
A Jenly 10 mm socket is the only tool you need to tighten the battery terminals. Using your wrench, remove the nut that holds the battery terminals in place.
Then, press down the terminal so that it is seated correctly and squeeze the terminal to remove any gaps.
Finally, tighten the nut onto its bolt, and reinstall it properly. On the other hand, you can get rid of terminal issues entirely by investing in a set of adjustable battery terminals.
3. Alternator Issues
Just like the battery, the alternator is another major component of your Jeep’s electrical system.
Alternators fail due to bad voltage regulators, being exposed to extreme temperatures, and internal wear.
In this case, we recommend replacing the alternator to prevent Jeep Wrangler from all warning lights on and other electrical issues down the line.
Alternator replacement for the Wrangler typically carries a repair bill between $437 and $696 on average.
4. Terminal Corrosion
Battery terminals on the Jeep Wrangler are made of metal. And just like any metal surface, the terminals are prone to corrosion.
Corrosion buildup interrupts the electricity flow by causing resistance and can lead to Jeep dash lights flashing on and off, and even turning on abruptly.
Make it a habit to inspect your Jeep’s battery terminals periodically. If you spot any corrosion, clean the battery clamps with a wire brush and spray some WD-40 on them for good measure.
5. Blown Fuses
Just like any other vehicle, the Wrangler has dozens of fuses related to various systems. You will face the Jeep Wrangler with all warning lights on error If a critical fuse has popped out of its socket or blown completely.
In this case, inspect the fuse box under the hood for any improperly seated units. Once you spot the culprit, simply press it down until you hear a “click“
If this doesn’t fix the problem, you have to replace the faulty fuse with a new one. Luckily, Wrangler fuses cost less than $10!
6. Additional Accessories
Jeep owners like to go crazy with aftermarket accessories, and who can blame them?
Although the Lightbars, winches, and flood lights seem cool on the surface, improperly installed accessories are another known cause of Jeep Wrangler dashboard lights turning on without warning.
If you suspect that this is the case, try removing some accessories and see if the issue persists. If the dashboard goes back to normal, you know where the issue lies!
7. Issues With Control Modules
The Totally Integrated Power Module (TIPM), Powertrain Control Module (PCM), and heated seat control module are among the most faulty electrical components in the Jeep Wrangler.
On most occasions, the entire module has to be replaced to remedy the issue. You can easily identify faulty modules by scanning for error codes.
What Are The Best Fixes?
After learning about the most common causes leading to the Jeep Wrangler All Warning Lights On issue, you might be interested in learning the best fixes for it. Don’t sweat it, we’ve got you covered on that front too!
But, be warned! Depending on the root causes, the fixes can either be dirt cheap or astronomically expensive!
The best place to start troubleshooting is the battery. Remove it from the vehicle, and have a mechanic inspect the voltage for you. If it is too low, we recommend swapping it out and getting a new one.
Yet, simply installing a new battery won’t be the be-all and end-all solution unless you take proper care of it. Inspect the terminals for corrosion, and give them good fighting once in a while.
However, if the battery is in good condition, try replacing faulty fuses and control modules. You can also try resetting the onboard computer and see if it gets rid of the issue.
If all else fails, there might be an internal issue with your dashboard. As fixing the dashboard is beyond a beginner-level repair, we recommend taking your SUV to the nearest Jeep dealer and having them do a diagnosis.
Conclusion
Today, we discussed the main causes behind the common Jeep Wrangler All Warning Lights On the problem, as well as the best fixes for it.
If you come across this issue, now you know what to do!
If you know any other causes or fixes, we’d love to hear them in the comments section below!
