Sluggish, jerky shifts. Grinding when selecting certain gears. Complete transmission failures to engage. These frustrating and dangerous symptoms often point to the same root cause in aging Jeep Grand Cherokees – failing shift solenoids.
Over time, these hard-working electro-mechanical valves wear out, get contaminated, or develop electrical faults that prevent smooth gear changes.
Ignoring deteriorating shift quality leads to accelerated transmission wear, breakdowns, and steep repair bills. But a proper solenoid diagnosis and strategic rebuild ended the vicious cycle of Jeep Grand Cherokee shift solenoid problems.
This guide explores the various solenoid failure modes ranging from simple wear to complex hydraulic or sensor issues.
More importantly, you’ll learn accurate Transmission solenoid troubleshooting steps and targeted solutions to rescue your Jeep.
So, without further ado, let’s get into it!

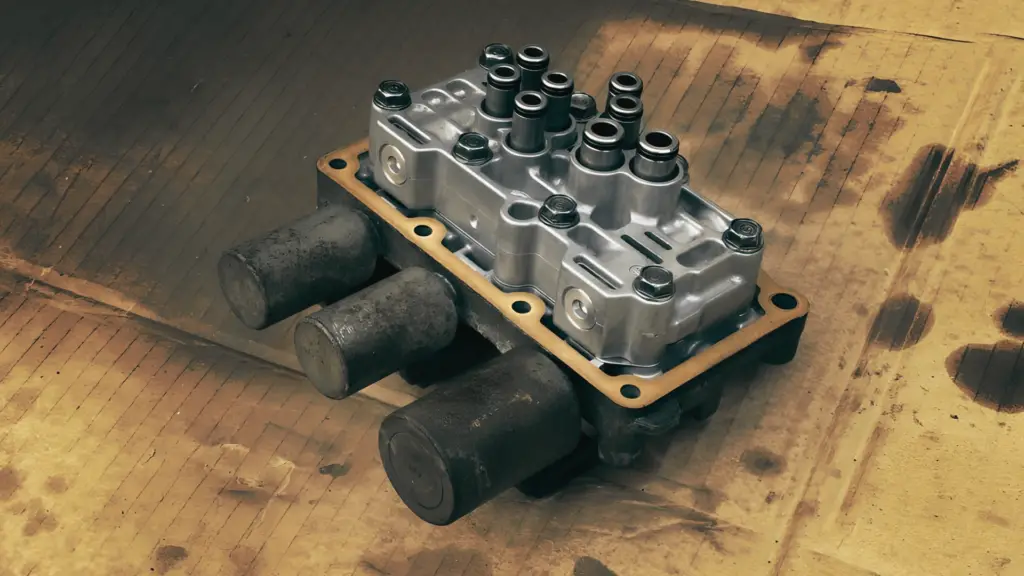

What Are Shift Solenoids and How Do They Work?
Shift solenoids are electro-mechanical valves that direct transmission fluid into the appropriate flow passages to change gears. They act as the switchboard between your gear lever and the gearsets inside the transmission.
Most modern automatic transmissions utilize multiple shift solenoids – up to six in some Jeep Grand Cherokee models. Each manages fluid flow for a specific gear change.
They are controlled by electrical signals from the transmission computer based on gear selector position, throttle input, and other sensor data.
For example, Solenoid A may trigger 1st to 2nd upshifts, while Solenoid B handles 2nd to 3rd shifts. If Solenoid A fails, you may have issues getting into 2nd gear, but 3rd works fine since that’s Solenoid B’s territory.
When energized, the solenoid valve opens a passage that channels fluid into clutch packs, bands, and other components to engage that particular gear ratio.
Issues arise when solenoids and related valves stick open or closed due to contamination, wear, or electrical faults.
Jeep Grand Cherokee Shift Solenoid Problems: 6 Causes and Fixes
Shift solenoid issues can stem from various sources ranging from worn-out valves and dirty fluid contamination to electrical faults or even sensor problems sending incorrect signals.
Pinpointing the root cause takes transmission diagnostic expertise and methodical troubleshooting.
The trained technicians leverage decades of hands-on experience specifically with Jeeps to efficiently diagnose transmission problems.
Let’s discuss a few common culprits that might lead to this issue, along with how to resolve them!
1. Physical Damage and Wear
Like any mechanical component, the precision internal parts in shift solenoids gradually wear over time and miles of use.
The constant hydraulic forces and pulsing electromagnetic fields inside the solenoid eventually erode valves, springs, seals, and electrical contacts.
Contaminant particles in the transmission fluid also sand away at the internal passages and components leading to sticking valves or poor sealing.
Physical damage like cracked housings or connectors further accelerates wear while allowing even more contamination inside.
These gradual processes ultimately change solenoid operating characteristics enough to cause delayed, rough, or missed shifts.
Troubleshooting
Road test to duplicate issues and feel for flares or slips during shifts. Check for any cracks or damage to solenoid electrical connectors.
Inspect the transmission pan for large amounts of friction material or metallic particles indicating advanced wear.
Utilize scan tool data to watch for erratic valve timing.
Solution
A complete solenoid overhaul or replacement renews all critical sealing surfaces, springs, valves, and electrical contacts to reliably restore shift performance.
Swapping in remanufactured or even upgraded solenoids further enhances longevity compared to just cleaning and reusing worn original parts.
A thorough fluid exchange helps remove any remaining contamination as well.
2. Contaminated Fluid
The lifeblood of your Jeep’s transmission is the automatic transmission fluid (ATF).
But over time, this hydraulic fluid becomes contaminated with microscopic metal shavings from internal wear, water, and fuel dilution from leaks, acidic byproducts, and carbon deposits.
Heavily contaminated ATF then spreads this abrasive gunk throughout the complex inner passageways of the solenoids.
Carbonized deposits restrict fluid flow, causing poor line pressure and engagement.
Tiny particulates in contaminated fluid grind away at the precision valve sealing surfaces and internal bores of solenoids.
This progressively deteriorates shift quality and eventually leads to sticking valves, leaks, or seizures.
Troubleshooting
Inspect the transmission dipstick for blackened fluid indicating excessive contamination.
Drain a small sample of ATF into a clear jar and check for metal particles or a foul, burnt odor.
Hook up external gauges during diagnosis to monitor erratic pressure readings.
Solution
A thorough ATF exchange helps remove contaminated fluid and particulates from the system.
Follow up with the installation of a premium synthetic transmission fluid combined with a magnetic drain plug to continually trap remaining debris over time.
Replacing worn solenoids and seals eliminates any sticking valves or leaks, allowing unrestricted flow.
3. Electrical Issues
Shift solenoids receive complex electrical signals from the transmission computer, telling them when to open or close.
Any problems with wiring, connectors, or solenoid windings can lead to activation issues and shifting delays or problems.
Inside the solenoid, the copper coil windings eventually degrade from heat and electromagnetic forces.
That reduces magnetic field strength so the valve doesn’t fully open or close as commanded. Contaminants fouling the valve bore exacerbate these issues.
Troubleshooting
Carefully inspect wiring harnesses, connectors, and pin contacts for corrosion or damage. Check for loose or poorly connected terminals.
Monitor solenoid resistance and voltage values with a digital multimeter during diagnosis to isolate faults.
Solution
Repairing any wiring or connector issues restores clean solenoid control signals. Swapping in remanufactured or new solenoids also provides fresh, high-tolerance windings for reliable valve activation.
Their extensive testing ensures consistent, OE specification performance.
4. Sensor Problems
Various transmission sensors monitor speed, position, pressure, temperature, and throttle inputs to help control shift timing and characteristics.
Issues with these sensors – or the computer itself – can confuse solenoids with inaccurate data.
These sensor issues end up overriding normal solenoid operation causing erratic shifting behavior, flare-ups between gears, and problems selecting certain ratios.
Troubleshooting sensor faults requires analyzing computer data streams during test drives to pinpoint the root cause.
Troubleshooting
Scan for diagnostic trouble codes pointing to specific sensors.
Graph sensor values like speed and throttle voltage during test drives to uncover erratic readings.
Check for loose connections, damaged sensors, or sensor wire ground faults.
Solution
Replacing faulty speed, pressure, temperature, or position sensors restores accurate data to the transmission computer allowing normal automated solenoid control.
The experienced technicians will have the specialized equipment to efficiently diagnose sensor issues leading to transmission problems.
5. Hydraulic Control Issues
Shift solenoids operate based on hydraulic force to engage gears – no fluid pressure means no shifting.
Pump failures, leaks, or clogs in control circuits prevent adequate pressure for solenoid activation.
Low line pressure then allows clutch plates and bands to slip, causing flare-ups between gears or trouble selecting certain ratios.
Troubleshooting
Scan for pressure-related diagnostic trouble codes. During road tests, connect external gauges to compare commanded line pressure versus actual values to isolate bleeds.
Inspect seals and gaskets for evidence of fluid loss. Check pump gears or control valves for wear, permitting internal leaks.
Solution
First of all, you need to methodically track down root causes for hydraulic issues leading to solenoid activation problems.
Replacing leaky seals, worn pumps, or faulty control valves restores proper line pressure.
A professional’s comprehensive overhaul services may also include installing upgraded parts to prevent repeat failures.
6. General Transmission Wear
How do I know if my shift solenoid is bad? When an aging transmission has significant internal wear issues, shift solenoids often end up as innocent bystanders taking the blame.
With excessive slack in bands, sticky valves, or worn clutch plates, even properly operating solenoids struggle to deliver smooth shifts.
The underlying deterioration prevents firm engagements regardless of solenoid performance.
Gradual wear debris contamination circulating in the fluid further restricts solenoids from doing their job.
Seals lose integrity over time as well, enabling pressure loss across shift valves no matter how accurately the solenoid activates.
Identifying these “hidden” root causes takes seasoned transmission expertise.
Troubleshooting
Scan for an array of different trouble codes pointing to multiple system faults. Alternatively, no codes may be set at all despite obvious symptoms.
Thorough road testing helps narrow down the specific shifts, giving trouble. Metallic debris on the transmission pan magnet indicates advanced hardware wear.
Solution
For transmissions with widespread wear woes, we recommend a comprehensive overhaul.
This renews pumps, clutches, bands, valves, and seals in addition to the shift solenoids for holistic performance restoration.
Partnering up with a professional with R&R expertise recaptures OE-grade precision at affordable pricing.
What Are the Symptoms of a Bad Shift Solenoid?
Erratic shifting, delayed or harsh shifting, transmission slippage, inability to shift gears, and illuminated check engine light.
What are the Common Symptoms of the P0751 Code?
The common symptoms of the P0751 code are harsh or delayed shifting, transmission stuck in a specific gear, and a decrease in fuel efficiency.
How Much Does It Cost to Replace a Solenoid on a Jeep Grand Cherokee?
The cost to replace a solenoid on a Jeep Grand Cherokee can vary depending on various factors such as the specific solenoid that needs replacement, the location where the repair is being done, and the labor rates of the mechanic or dealership.
It is best to consult with a qualified mechanic or dealership for an accurate cost estimate.
How Can I Test a Shift Solenoid?
You can test a shift solenoid by using a multimeter to measure its resistance.
Disconnect the solenoid’s electrical connector and then probe the terminals with the multimeter leads.
Compare the measured resistance value with the manufacturer’s specifications to determine if the solenoid is working properly.
Conclusion
Like any complex mechanical system, multiple faults can manifest with similar drivability consequences.
But whatever the root cause behind your Jeep Grand Cherokee shift solenoid problems, accurate diagnosis, and strategic rebuild procedures are key to resolving issues for the long haul.
Methodical troubleshooting accurately tracks down problems while road testing recreates your specific symptoms. This enables technicians to recommend the optimal combination of rebuilds, component replacements, and upgrades to match your Jeep’s needs.
From quick external solenoid refreshes to full transmission overhauls, professional services can reliably get shift performance back on track.
Don’t tolerate dangerous drivability problems or expensive repeated repairs related to solenoids or sensors.
Seeking out experienced transmission experts for inspection and repair quoting is advised.
