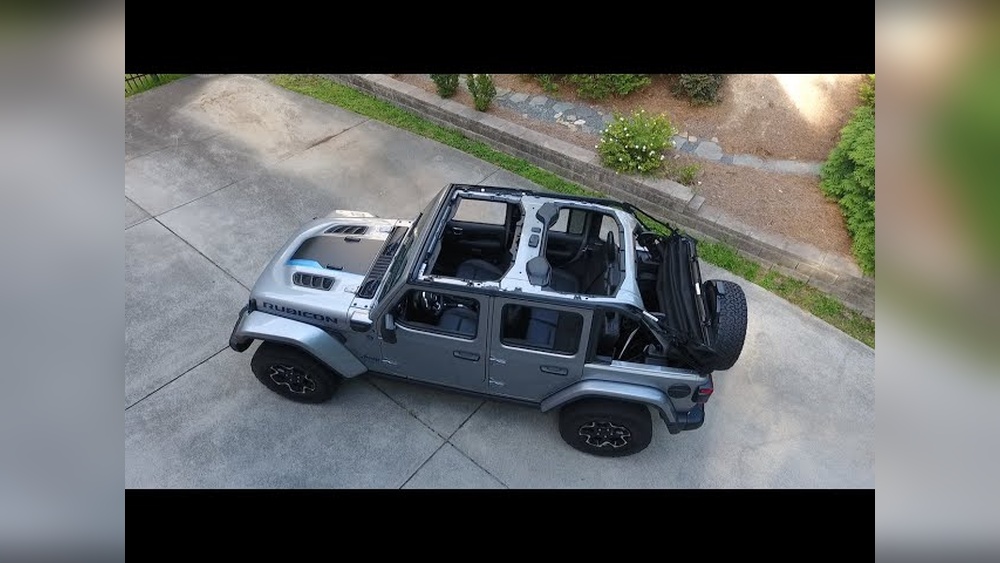

Taking off the top of your 2020 Jeep Wrangler is one of the most exciting parts of owning this iconic SUV. The Wrangler is designed for adventure, and going topless lets you feel the wind and sun as you drive. But if you’re new to Jeep ownership, the removal process can seem a bit tricky. This guide will help you remove the top safely and easily, so you can enjoy every moment on the road or trail.
Types Of Tops On The 2020 Jeep Wrangler
The 2020 Wrangler comes with two main types of tops:
- Hardtop (Freedom Top)
- Soft Top
Each has its own removal process. Most drivers choose the hardtop for winter and the soft top for summer, but you can switch as you like.
| Top Type | Material | Removal Difficulty | Weather Protection |
|---|---|---|---|
| Hardtop | Fiberglass | Moderate | Excellent |
| Soft Top | Fabric/Vinyl | Easy | Good |
Tools And Preparation
Before you start, gather these items:
- Torx screwdriver (size T40)
- Storage bags for panels
- A friend (for heavy lifting)
- Clean, flat parking area
Check your owner’s manual for exact tool sizes, as some models may differ. Removing the top alone can be risky; the panels are heavy and awkward.
How To Remove The Hardtop
Step 1: Remove The Freedom Panels
The front panels are called Freedom Panels and are simple to remove:
- Flip down sun visors.
- Unlock all latches (there are six).
- Remove two Torx bolts above each visor.
- Lift panels and store them safely.
Most beginners forget to unlatch every clip. Missing one can crack the panel.
Step 2: Disconnect The Electrical And Washer Connections
In the rear cargo area, find the wiring harness and washer hose:
- Unplug the wiring harness by pressing the tab.
- Detach the washer hose (a gentle pull is enough).
- Place the plugs in the holders provided.
If you skip this step, you could damage the wires when lifting the top.
Step 3: Remove The Remaining Bolts
There are 8 Torx bolts along the interior edge:
- Use the T40 Torx driver to remove each bolt.
- Keep bolts in a safe container.
Losing a bolt is a common mistake—Jeep bolts are unique and hard to replace.
| Location | Number of Bolts | Tip |
|---|---|---|
| Front (Freedom Panels) | 4 | Use gentle force |
| Rear Section | 8 | Store bolts together |
Step 4: Lift Off The Hardtop
With all bolts removed, grab a friend for this step:
- Carefully lift the hardtop at each corner.
- Move it slowly to avoid scratches.
- Set it on a soft surface.
Some owners use a hoist in their garage, which makes this step much easier. If you don’t have a hoist, two people can handle it.
How To Remove The Soft Top
Step 1: Unclip The Side Windows
Start with the rear side windows:
- Undo the Velcro strips.
- Slide out the windows.
- Store them in protective bags.
Step 2: Remove The Rear Window
- Lift the tailgate.
- Unzip the rear window from both sides.
- Slide it out and store.
Step 3: Fold Back The Soft Top
- Release the top clamps at the front.
- Push the top backward until it folds flat.
- Secure with provided straps.
The soft top is much lighter, and you can do this alone. Still, always check for pinched fabric before folding.
Comparison: Hardtop Vs Soft Top Removal
| Feature | Hardtop | Soft Top |
|---|---|---|
| Time Required | 20-30 minutes | 10-15 minutes |
| Tools Needed | Torx driver | No tools |
| Help Needed | 2 people | 1 person |
| Risk of Damage | Medium | Low |
Tips For Safe Removal
- Always store panels in bags or on a soft blanket.
- Avoid rushing—take your time to prevent scratches.
- Check weather before removing; sudden rain can damage interior.
- If you plan to switch tops often, consider a garage hoist for the hardtop.
- Keep all hardware together in a labeled bag.
Two insights many beginners miss:
- Seal check: After reinstalling, check all seals for leaks. Water can get in if panels are not seated properly.
- Panel weight: Hardtop panels are heavier than expected. Dropping one can cause expensive damage.
Common Mistakes
- Forgetting to disconnect electrical connections
- Losing bolts or hardware
- Scratching panels during removal
- Not checking weather forecast
- Trying to remove the hardtop alone
Frequently Asked Questions
How Long Does It Take To Remove The Top?
Removing the hardtop usually takes 20-30 minutes. The soft top is faster, about 10-15 minutes.
Can I Remove The Top By Myself?
You can remove the soft top alone. For the hardtop, always ask a friend to help. The panels are heavy and awkward.
Do I Need Special Tools?
For the hardtop, a T40 Torx driver is necessary. The soft top does not require any tools.
Will Removing The Top Void My Warranty?
No, the Jeep is designed for top removal. Just follow the instructions in your manual.
Where Can I Store The Panels?
Use storage bags or soft blankets. Many owners keep panels in the garage or trunk. Some buy special racks or hoists.
Taking off the top of your 2020 Jeep Wrangler is easy once you know the steps. Whether you use a hardtop or soft top, careful handling will keep your Jeep looking great. Enjoy the freedom and adventure that comes with driving topless! For more guidance and official instructions, visit the Jeep Wrangler official site.
