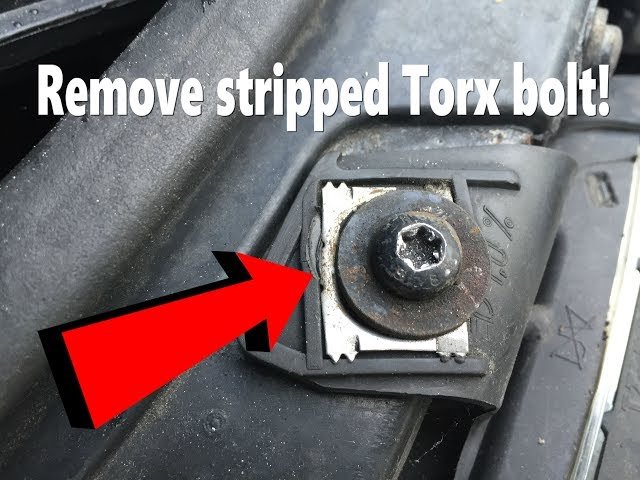

Getting a stripped Torx bolt out of your Jeep can turn a simple repair into a frustrating job. Torx bolts are strong and resist slipping, but when they strip, they become hard to remove. This often happens during brake jobs, seat replacements, or when working on Jeep doors and roofs. Still, with the right tools and approach, you can solve this problem without damaging other parts.
This guide will show you proven ways to remove a stripped Torx bolt from your Jeep. You’ll learn which tools work best, step-by-step methods, and mistakes to avoid. Even if you’re new to DIY repairs, this article will help you get the job done safely and efficiently.
What Causes Torx Bolts To Strip
A Torx bolt becomes stripped when the star-shaped pattern inside the bolt head gets rounded off. This usually happens because of:
- Using the wrong size Torx bit
- Applying too much force with power tools
- Rust or corrosion locking the bolt in place
- Low-quality tools that slip and damage the bolt
Once stripped, the Torx bit can’t grip the bolt head, so you need special techniques to remove it.
Tools And Materials You’ll Need
Before starting, gather these tools:
- Quality Torx bit set (metric and SAE)
- Penetrating oil (like PB Blaster or WD-40)
- Vise grips or locking pliers
- Hammer and punch
- Bolt extractor set
- Left-handed drill bits
- Small chisel or flathead screwdriver
- Protective eyewear and gloves
Some jobs may need extra tools, like a Dremel or rotary tool for tough bolts.
Here’s a quick comparison of common tools:
| Tool | Main Use | Best For |
|---|---|---|
| Vise Grips | Grip on bolt head | Exposed bolts |
| Bolt Extractor | Remove rounded bolts | Severely stripped bolts |
| Left-Handed Drill Bit | Drill and loosen bolt | Broken or seized bolts |
Step-by-step Methods To Remove A Stripped Torx Bolt
1. Apply Penetrating Oil
Spray penetrating oil around the bolt and let it soak for 10–30 minutes. This helps break up rust and makes removal easier.
2. Try A Larger Torx Or Allen Bit
Sometimes a slightly larger bit can grip the stripped bolt. Gently tap the bit into the bolt with a hammer to seat it firmly. Apply steady pressure while turning. If it slips, stop—don’t make it worse.
3. Use Vise Grips
If the bolt head is above the surface, lock vise grips tightly around it. Squeeze hard to prevent slipping. Turn slowly to back out the bolt. If it doesn’t move, try rocking it back and forth.
4. Hammer And Chisel Method
Place a small chisel or flathead screwdriver at the edge of the bolt head. Tap the chisel to create a notch. Then, angle the chisel and tap in the direction to loosen the bolt. This works best when other methods have failed.
5. Bolt Extractor Set
A bolt extractor is designed for stripped bolts. Tap the extractor into the bolt head with a hammer. Use a wrench to turn the extractor counterclockwise. The harder you turn, the tighter it grips. This is one of the most effective ways.
| Extractor Type | How It Works | Success Rate |
|---|---|---|
| Spiral Fluted | Grips inside bolt | High |
| Cam-Out | Fits over bolt head | Medium |
6. Drill And Extract
If the head is completely destroyed, drill a small hole in the center using a left-handed drill bit. Sometimes, the bit will catch and turn the bolt out. Otherwise, insert a screw extractor and twist it out.
7. Cut A Slot
As a last resort, use a Dremel to cut a straight slot across the bolt head. Use a flathead screwdriver to turn the bolt. Be careful not to damage the surrounding surface.
Key Tips And Common Mistakes
- Use high-quality bits. Cheap tools round off bolt heads quickly.
- Don’t force it. If the bolt won’t move, try more penetrating oil or a different method.
- Protect the area. Cover paint and plastic parts to avoid damage.
- Heat can help. For very stuck bolts, gently heat the area with a torch to expand the metal, but avoid this near sensitive Jeep parts.
A common mistake is using an impact driver on a stripped bolt. This usually makes the problem worse. Also, don’t keep trying the same tool if it doesn’t work—switch methods before more damage happens.
When To Seek Professional Help
Sometimes, a stripped Torx bolt will not come out, no matter what you try. If you:
- See the bolt head breaking or crumbling
- Are working near sensitive parts (like electronics or airbags)
- Feel unsure or frustrated
It’s smart to visit a mechanic. Professional shops have specialized extractors and welding tools that can remove the bolt without damaging your Jeep.
Preventing Stripped Torx Bolts In The Future
To avoid this headache next time:
- Use the correct size Torx bit, and check it fits snugly.
- Clean out dirt or rust from the bolt head before starting.
- Apply a small amount of anti-seize compound on threads.
- Tighten bolts to the manufacturer’s torque specs.
- Invest in quality tools.
Here’s a quick look at the most common Jeep areas where Torx bolts strip:
| Jeep Part | Torx Size | Risk of Stripping |
|---|---|---|

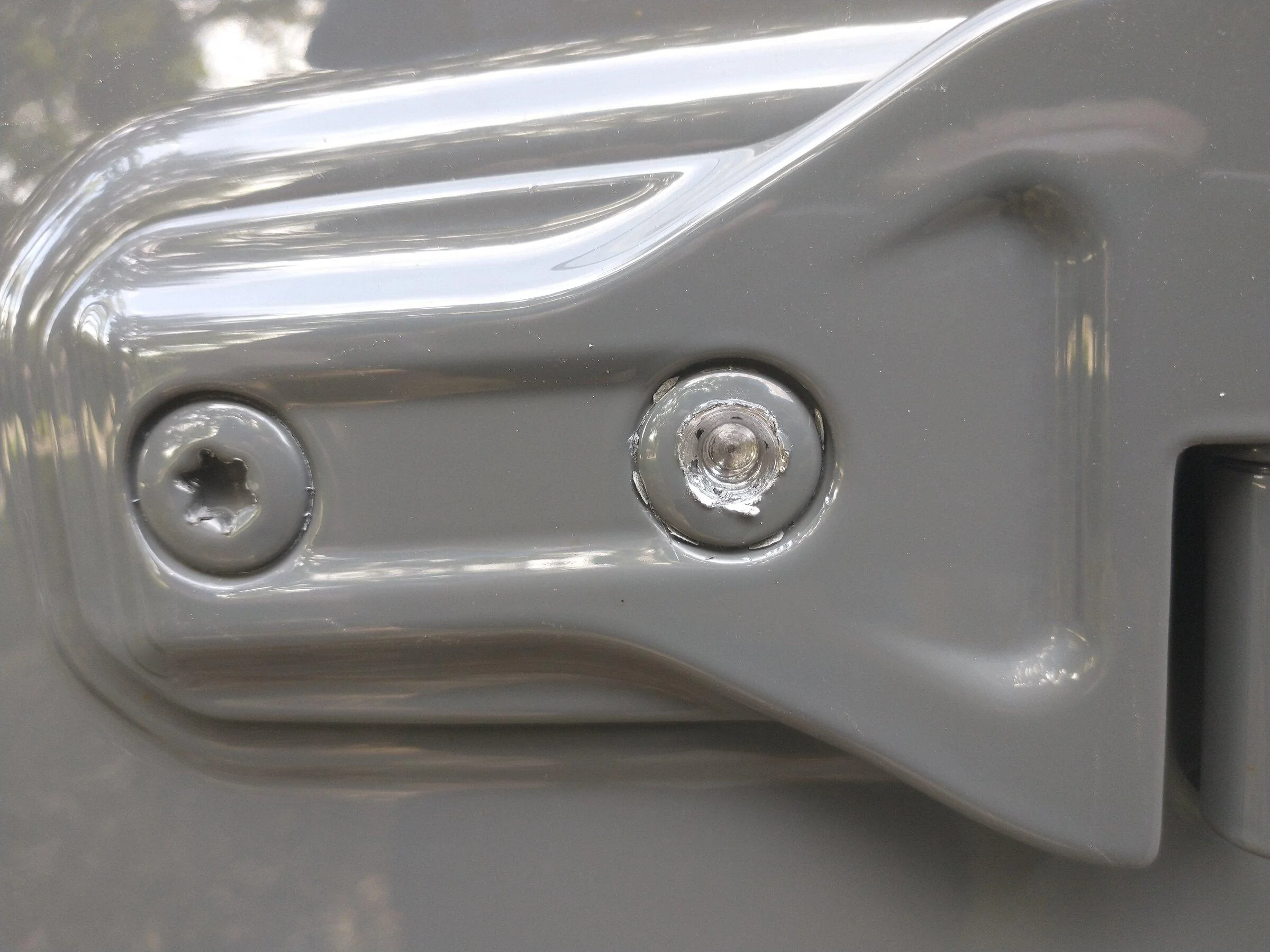

| Door Hinges | T40–T50 | High |
| Hardtop Bolts | T40 | Medium |
| Seat Mounts | T50 | High |
Frequently Asked Questions
What Is The Best Tool To Remove A Stripped Torx Bolt?
A bolt extractor is usually the most effective. It’s designed to grip and turn bolts that other tools can’t handle. If the head is still intact, vise grips or a larger Torx bit may work.
Will Wd-40 Help Loosen A Stripped Torx Bolt?
Yes, penetrating oil like WD-40 helps by breaking rust and corrosion. Let it soak for at least 10 minutes before trying to remove the bolt.
Can Heat Damage My Jeep When Removing Bolts?
Heat can help loosen stuck bolts, but use it with care. Too much heat can damage nearby paint, wiring, or plastic. Only use heat if you are sure it’s safe for that area.
What If The Bolt Breaks Off Inside The Hole?
If the bolt shank breaks, you may need a screw extractor or to drill it out. For deep or stubborn bolts, a professional mechanic may be the safest option.
Are Torx Bolts Better Than Regular Bolts For Jeeps?
Torx bolts provide better grip and are less likely to strip than Phillips or flathead bolts. But when they do strip, removal is more difficult. Always use the correct tools to avoid problems.
Removing a stripped Torx bolt from your Jeep can be a tough job, but the right methods and patience will usually get it done. Always use quality tools and don’t rush—taking care now can save you headaches later. For more on bolt removal techniques, see this helpful guide from Popular Mechanics.
