Thinking about swapping your Jeep wheels onto a Ram 1500? Many truck and SUV owners love the idea of customizing their ride by mixing and matching parts. Wheels are one of the most noticeable upgrades, but fitment isn’t always simple. At first glance, Jeep and Ram wheels may seem similar—they’re both from the larger FCA (now Stellantis) family. But does that mean Jeep wheels will bolt right onto a Ram 1500 without issues? Let’s dig into the technical details, common pitfalls, and what you need to know before making the swap.
Key Factors In Wheel Fitment
Swapping wheels isn’t just about bolt holes lining up. The wheel fitment depends on several specifications. Here are the main things you must check:
- Bolt pattern
- Center bore
- Offset
- Wheel size
- Load rating
- Brake clearance
If any of these don’t match, the wheels may not fit, or worse, could be unsafe to use.
Comparing Jeep And Ram 1500 Wheel Specs
To understand if Jeep wheels fit on a Ram 1500, compare the most common models. Here’s a quick look at the specs for popular Jeep and Ram vehicles:
| Vehicle | Bolt Pattern | Center Bore | Offset | Common Sizes |
|---|---|---|---|---|
| Jeep Wrangler JK (2007-2018) | 5x127mm (5×5″) | 71.5mm | +44mm | 17-18″ |
| Jeep Gladiator JT (2019+) | 5x127mm | 71.5mm | +44mm | 17-18″ |
| Ram 1500 (2002-2018) | 5×139.7mm (5×5.5″) | 77.8mm | +19mm | 17-20″ |
| Ram 1500 (2019+) | 6×139.7mm (6×5.5″) | 77.8mm | +19mm | 18-22″ |
Notice the differences: Bolt patterns and center bores are not the same.
Bolt Pattern: The Dealbreaker
The bolt pattern is the circle formed by the lug holes. If the bolt pattern doesn’t match, the wheels simply won’t fit. Most Jeep Wranglers and Gladiators use 5x127mm (5×5″), while Ram 1500s use 5×139.7mm (older models) or 6×139.7mm (newer models). This means:
- Jeep wheels will not bolt directly onto a Ram 1500 without adapters.
- Trying to force a different bolt pattern is unsafe and will damage the wheels or hubs.
Some Jeep Grand Cherokee models (2011+) use a 5x127mm pattern, but again, this does not match the Ram 1500’s pattern.
Center Bore And Hub Size
The center bore is the hole in the middle of the wheel that fits over the vehicle’s hub. Ram 1500s have a larger center bore (77.8mm) than Jeeps (71.5mm). If you try to fit a Jeep wheel on a Ram 1500:
- The wheel may not center properly (causing vibration).
- Hub-centric rings can help, but only if the bolt pattern fits first.
Wheel Offset And Backspacing
Offset is the distance from the wheel’s mounting surface to the centerline. Ram 1500 wheels usually have a lower (less positive) offset than Jeep wheels. Here’s a quick offset comparison:
| Vehicle | Typical Offset |
|---|---|
| Jeep Wrangler/Gladiator | +44mm |
| Ram 1500 | +19mm |
A higher offset (like on Jeep wheels) may cause the tires to sit further inside the wheel well, which can lead to rubbing on the suspension or frame.
Wheel Size And Load Rating
Jeep wheels are often 17-18 inches, while newer Ram 1500s use 18-22 inches. Even if the diameter matches, the load rating is critical. Ram 1500s are heavier and carry more payload, so the wheels need to be strong enough.
- Installing wheels with a lower load rating can lead to cracks or failure.
- Always check the load specs stamped on the wheel.

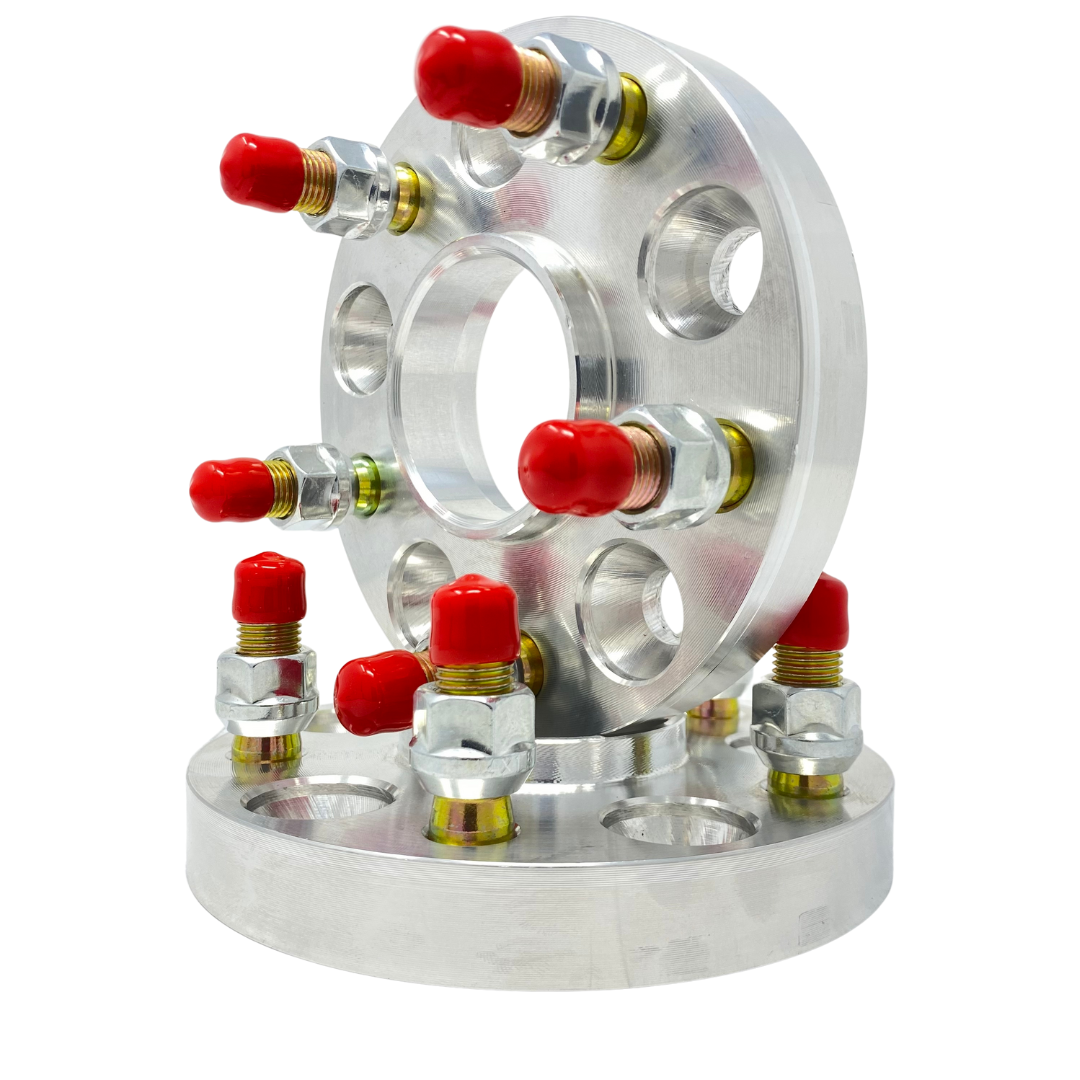

Using Wheel Adapters
Some drivers use wheel adapters to change the bolt pattern. For example, a 5x127mm to 5×139.7mm adapter may let you fit Jeep wheels onto an older Ram 1500. But:
- Adapters add extra width (usually 1-2 inches).
- They place more stress on wheel bearings.
- Not all adapters are created equal—cheap ones can fail.
If you go this route, buy high-quality, hub-centric adapters and check local laws (some places restrict adapter use).
Real-world Example
Suppose you own a 2018 Jeep Wrangler JK and want to put its wheels on a 2017 Ram 1500. The bolt patterns are different (5x127mm vs 5×139.
7mm), and the center bores don’t match. You would need adapters, and the offset difference might cause rubbing.
In most cases, it’s easier and safer to buy wheels designed for your Ram 1500.
Common Mistakes When Swapping Wheels
Many DIY truck owners make these errors:
- Ignoring bolt pattern differences – Always check before buying.
- Not considering offset – Wrong offset can lead to rubbing or poor handling.
- Forgetting about load rating – Jeep wheels may not be strong enough for a loaded Ram.
- Assuming all Jeep wheels are the same – Specs vary by model and year.
- Skipping test fits – Always test-fit wheels before mounting tires.
What If You Really Want That Jeep Look?
If you love the design of Jeep wheels, look for aftermarket wheels that fit Ram 1500 specs but mimic Jeep styles. Many wheel brands offer “Jeep-inspired” designs with the right bolt pattern, center bore, and offset for Ram trucks.
For more details on wheel fitment and specifications, the Wheel-Size Database is an excellent resource.
Frequently Asked Questions
Can I Use Jeep Wrangler Wheels On A Ram 1500 Directly?
No, you cannot use Jeep Wrangler wheels on a Ram 1500 without adapters. The bolt patterns and center bores are different, making direct installation impossible.
Are Wheel Adapters Safe For Daily Driving?
High-quality, hub-centric wheel adapters can be safe if installed correctly and checked regularly. However, they add stress to the suspension and should only be used if absolutely necessary.
Do Jeep Gladiator Wheels Fit The New Ram 1500?
No, Jeep Gladiator wheels use a 5-lug pattern, while newer Ram 1500s (2019+) use a 6-lug pattern. Adapters would be required, but it’s not a direct fit.
Will Installing Jeep Wheels Affect My Ram 1500’s Warranty?
Using wheels not designed for your truck, or using adapters, can affect your warranty if they cause related problems. Always check with your dealer before making modifications.
What’s The Safest Way To Get A Jeep Wheel Look On My Ram 1500?
The safest way is to buy aftermarket wheels designed for the Ram 1500 but styled like Jeep wheels. This avoids all the fitment and safety issues.
If you’re considering a wheel swap, take careful measurements and always put safety first. While it’s tempting to mix and match, in most cases, it’s smarter to choose wheels made for your vehicle’s exact specs.
That way, you get the look you want without risking safety or performance.
