Replace the driver side blend door actuator in a 2014 Jeep Grand Cherokee and restore your comfort. If your Jeep’s air doesn’t change from hot to cold, or you hear clicking behind the dash, this guide helps you diagnose and fix the problem. Learn what to expect, how to do it, and when to seek expert help.
Meta Description:
Learn how to replace the 2014 Jeep Grand Cherokee driver side blend door actuator. Includes symptoms, steps, costs, and DIY tips for Jeep owners.
Understanding The Blend Door Actuator
The blend door actuator is a small electric motor inside your dash. It controls airflow temperature by moving flaps that mix hot and cold air. If it fails, you can’t control cabin temperature on the driver’s side. The 2014 Grand Cherokee (WK2 platform) uses electronic actuators, not cables, for smooth temperature adjustment.
Common Symptoms
- Temperature stuck on hot or cold, regardless of dial
- Clicking or tapping noise when starting the car or adjusting temperature
- Uneven air temperature between driver and passenger sides
- No response when changing climate settings
Diagnosing The Problem
Before replacing the actuator, check for these issues:
- Listen for clicking sounds under the dash.
- Test the controls: Does only the driver side fail?
- Scan for codes: Some OBD-II readers show HVAC actuator faults.
- Check fuses: A blown fuse can cause HVAC problems.
If only the driver side is affected, and you hear clicking or see no movement, it’s likely the actuator.
Compatibility And Platform Differences
The 2014 Grand Cherokee uses the WK2 platform. This is different from JK, JL, TJ, XJ, and WL Jeeps, which have other actuator designs and placements. Only use parts listed for 2011–2021 Grand Cherokee WK2 models. Do not buy actuators for JK Wranglers or older XJ Cherokees—they will not fit.
Trim compatibility:
All 2014 trims (Laredo, Limited, Overland, Summit, SRT) use the same actuator.
Engine and transmission:
Actuator is not affected by engine (V6, V8, diesel) or transmission choice.
Replacement: Step-by-step Guide
Tools And Materials
- ¼-inch drive ratchet and extension
- 7mm socket
- Small flathead screwdriver
- Replacement blend door actuator (part number: 68249442AA or equivalent)
- Flashlight
Removal Steps
- Disconnect the battery: Always disconnect the negative cable before working on electronics.
- Move the driver seat fully back for space.
- Remove the lower dash trim under the steering column (usually 2–3 screws).

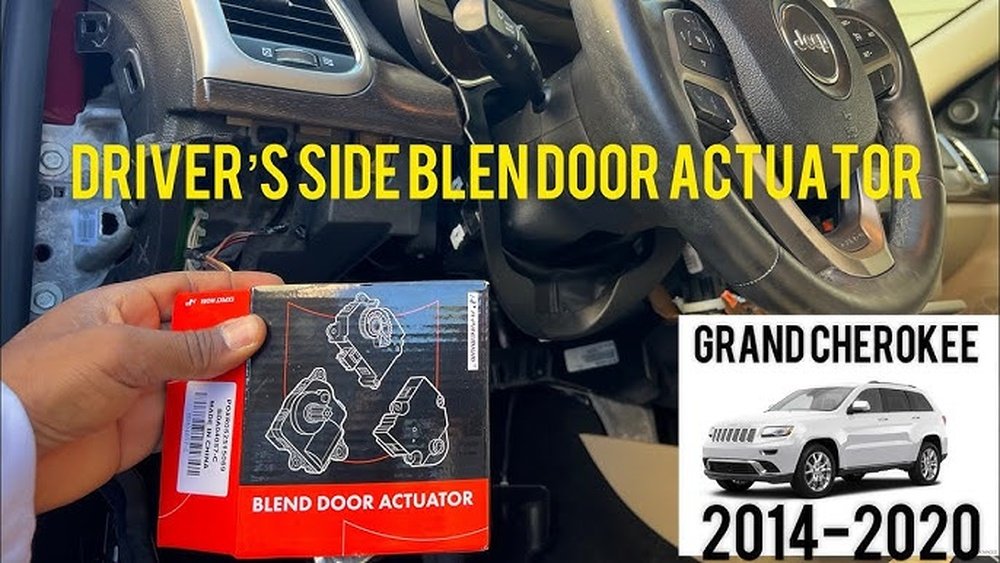

- Locate the actuator: It sits above the accelerator pedal, on the HVAC box.
- Unplug the connector from the actuator.
- Remove two 7mm screws holding the actuator.
- Gently pull out the old actuator.
Installation Steps
- Align the new actuator with the blend door shaft.
- Install and tighten the screws by hand to avoid stripping threads.
- Reconnect the wiring harness securely.
- Reinstall the dash trim panel.
- Reconnect the battery.
- Test the HVAC system. Switch between hot and cold to ensure full range.
This repair takes about 45–75 minutes for most DIYers.
Estimated Costs
Here’s a quick look at typical costs:
| Item | DIY Cost | Shop Cost |
|---|---|---|
| Actuator part | $35–$60 | $35–$60 |
| Labor | Free | $120–$180 |
| Total | $35–$60 | $155–$240 |
DIY saves money, but a shop can be worth it if you’re not comfortable with dash work.
When To Visit A Mechanic
Consider a professional if:
- The blend door does not move even with a new actuator.
- You see wiring damage or melted connectors.
- Multiple HVAC functions fail.
- You do not have the right tools or space.
Jeep dealerships and experienced shops can diagnose complex HVAC issues with special scan tools.
Buying Tips And Compatibility Checks
- Always match the part number (e.g., 68249442AA) for perfect fit.
- Check seller reviews for quality and warranty.
- Avoid used actuators—motors wear out over time.
- The same actuator fits all 2011–2021 Grand Cherokee WK2, but not other Jeep models.
- If your Jeep is under factory warranty, repairs may be covered.
Practical Tips And Insights
- Calibrate the system: After replacing, start the car and let the HVAC run through all settings.
- Keep screws organized: Dash screws are easy to lose; use a tray.
- Don’t force the actuator: If it doesn’t fit, the blend door may be stuck. Forcing can break expensive parts.
- Some owners mistake a blown fuse for actuator failure. Always check fuses first.
Specification Comparison
To help you understand differences, here’s a comparison between the 2014 Grand Cherokee WK2 blend door actuator and the JK Wrangler actuator:
| Feature | Grand Cherokee WK2 (2014) | Wrangler JK (2007–2018) |
|---|---|---|
| Actuator Type | Electronic motor | Electronic motor |
| Mount Location | Above accelerator pedal | Passenger side under dash |
| Connector Pins | 5 | 3 |
| Compatibility | WK2 only | JK only |
Always check your Jeep’s VIN and part diagram before ordering.
Towing, Safety, And Hvac Comfort
The blend door actuator does not affect towing, engine, or transmission, but good cabin comfort is important when towing long distances. A stuck blend door can fog windows in cold weather, reducing safety. That’s why timely repair matters.
Additional Resources
For more detail, see the official Jeep owner’s manual or trusted Jeep forums.
Frequently Asked Questions
How Do I Know My Blend Door Actuator Is Bad?
If the driver’s side air is stuck hot or cold, or you hear a clicking noise under the dash, the actuator is likely faulty. No response to climate controls is another sign.
Can I Drive With A Bad Blend Door Actuator?
Yes, but you’ll lose temperature control for the affected zone. It won’t damage your engine, but comfort and defrosting may suffer.
Is The Replacement The Same For All 2014 Grand Cherokee Trims?
Yes, all 2014 trims (Laredo, Limited, Overland, Summit, SRT) use the same actuator on the WK2 platform.
How Long Does Diy Replacement Take?
Most owners finish in 45–75 minutes. It may take longer the first time or if dash panels are hard to remove.
Are Cheap Aftermarket Actuators Reliable?
Quality varies. Some work fine, but others fail quickly or fit poorly. Choose reputable brands and check for a warranty.
—
