Maintain your 2001 Jeep Cherokee well, and it will serve you for years. One of the most important—but often overlooked—tasks is checking and changing the transmission fluid. The right fluid level keeps your Cherokee shifting smoothly, prevents damage, and saves you from costly repairs. This guide covers everything you need to know about the transmission fluid capacity for the 2001 Cherokee, including fluid types, maintenance tips, and troubleshooting.
Meta description:
Find the correct 2001 Jeep Cherokee transmission fluid capacity, fluid type, and maintenance tips. Learn about symptoms, costs, and compatibility in this practical guide.
Understanding Your 2001 Jeep Cherokee Transmission
The 2001 Jeep Cherokee, known as the XJ platform, was the last model year for this classic SUV. It came with a 4.0L inline-six engine and offered both automatic and manual transmission options.
- Automatic Transmission (AW4): Most common in 2001 Cherokees.
- Manual Transmission (AX15 or NV3550): Less common, mainly in base models or custom orders.
Knowing your transmission type is essential because fluid capacity and type differ.
Transmission Fluid Capacity By Transmission Type
The most important detail is the fluid volume your transmission needs. Here’s a breakdown:
| Transmission Type | Fluid Capacity (pan drop/change) | Total Fill (dry) | Fluid Type |
|---|---|---|---|
| AW4 Automatic | ~3.0 quarts | 8.0-8.5 quarts | Dexron III / Mercon ATF |
| AX15 Manual | ~3.1 quarts | 3.1 quarts | 75W-90 GL-3 Gear Oil |
| NV3550 Manual | ~2.35 quarts | 2.35 quarts | 75W-90 GL-3 Gear Oil |
Tip:
Most 2001 Cherokees use the AW4 automatic. Check your shifter—if there’s a “PRND21” pattern, it’s automatic.
How To Check Transmission Fluid Level
Checking transmission fluid is easy, but you need to follow the correct steps:
- Park your Cherokee on a level surface.
- Start the engine and let it reach normal temperature.
- Shift through all gears, ending in Park (automatic).
- With the engine running, pull out the transmission dipstick.
- Wipe clean, reinsert fully, then check level again.
Fluid should be between “Add” and “Full” marks on the dipstick.
If your Cherokee has a manual transmission, there’s no dipstick. You must check the fill plug on the side of the transmission case.
Signs Of Low Or Old Transmission Fluid
Ignoring fluid changes can cause serious issues. Watch for these warning signs:
- Rough or delayed shifting
- Slipping gears
- Transmission overheating
- Fluid leaks under your Jeep
- Unusual noises (whining, clunking)
If you notice any of these, check your fluid level and color. Fresh fluid is bright red (automatic) or clear (manual). Dark or burnt-smelling fluid needs changing.
Changing Transmission Fluid: What You Need
For an AW4 automatic pan drop, you’ll need:
- 3-4 quarts Dexron III/Mercon ATF
- New transmission pan gasket
- Socket set and drain pan
For a manual transmission:
- 2.5–3.1 quarts 75W-90 GL-3 gear oil
- Hand pump for refilling
- Drain pan
Note:
A full flush (dry fill) is rarely needed unless the transmission is rebuilt. Most fluid changes only need a pan drop.

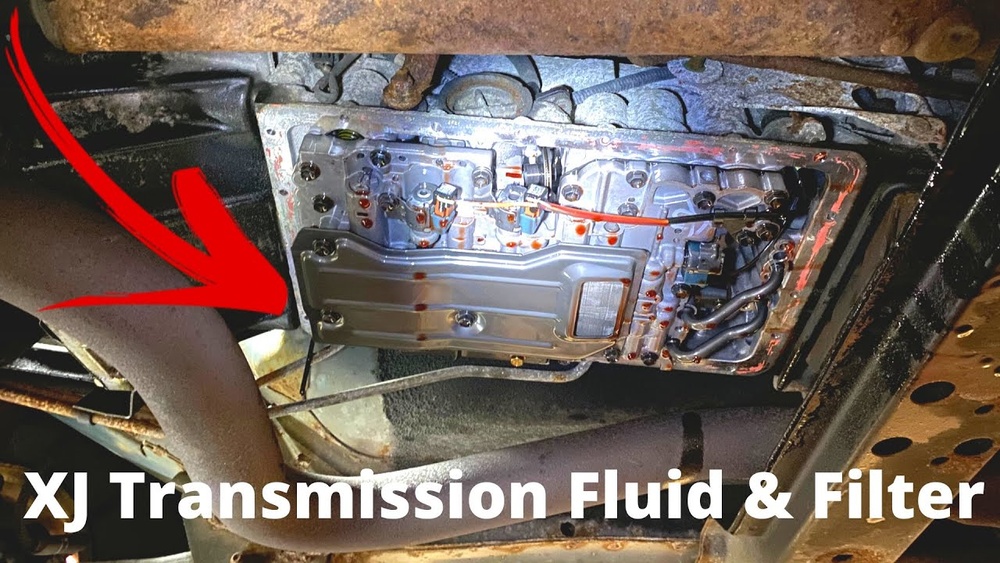

Step-by-step: Automatic Transmission Fluid Change
- Place drain pan under transmission.
- Remove transmission pan bolts, drain old fluid.
- Clean pan and magnet.
- Replace gasket and reinstall pan.
- Add new fluid through dipstick tube.
- Start engine, check fluid level, top off if needed.
Tip:
Don’t overfill. Too much fluid causes foaming and shifting problems.
Fluid Compatibility And Platform Differences
The 2001 Cherokee XJ is not the same as later Jeep models:
- JK, JL, TJ, WK, WL: Use different transmissions and fluids. Never mix fluid types between platforms.
- Automatic XJ: Uses Dexron III/Mercon—do not use ATF+4 (for Grand Cherokee and later models).
- Manual XJ: Only use GL-3 gear oil, not GL-5, as GL-5 can damage synchros.
When buying fluid, always check the label for the correct specification. Bringing your VIN to the auto parts store helps avoid mistakes.
Towing, Driving Conditions, And Fluid Changes
If you tow, drive in extreme heat, or off-road often, you should change fluid more frequently. Severe service can break down transmission fluid faster.
- Normal use: Change every 30,000–50,000 miles
- Severe use: Every 20,000–30,000 miles
Tip:
Install a transmission cooler if you tow heavy loads. It helps keep fluid temperature safe and extends transmission life.
Repair Costs And When To See A Mechanic
Simple fluid changes cost $40–$100 if you do it yourself. A shop may charge $120–$250.
If you have slipping, noisy operation, or fluid leaks even after changing fluid, see a mechanic. Catching problems early saves money.
Common Mistakes To Avoid
- Using the wrong fluid type
- Overfilling or underfilling
- Forgetting to replace the pan gasket
- Not cleaning the magnet (it traps metal shavings)
- Ignoring leaks
Extra Insight:
Don’t trust universal “multi-vehicle” fluids unless they clearly say Dexron III/Mercon. Some brands cut costs with poor additives.
Specification Comparison: Xj Vs Grand Cherokee (wj)
Here’s a quick look at how the 2001 Cherokee (XJ) compares to the Grand Cherokee (WJ):
| Model | Transmission | Fluid Capacity (pan drop) | Fluid Type |
|---|---|---|---|
| Cherokee XJ | AW4 Auto | ~3.0 quarts | Dexron III/Mercon |
| Grand Cherokee WJ | 42RE Auto | ~4.0 quarts | ATF+4 |
Lesson:
Fluid type is not universal—always match your Jeep’s year and model.
Frequently Asked Questions
What Is The 2001 Jeep Cherokee Transmission Fluid Capacity?
For the AW4 automatic, a pan drop needs about 3.0 quarts. A dry fill can take up to 8.5 quarts. Manual transmissions need between 2.35 and 3.1 quarts, depending on the model.
How Often Should I Change The Transmission Fluid?
For normal driving, change the fluid every 30,000–50,000 miles. If you tow, off-road, or drive in hot weather, change it every 20,000–30,000 miles.
Can I Use Atf+4 In My 2001 Cherokee?
No. The 2001 Cherokee XJ with AW4 automatic requires Dexron III/Mercon fluid. ATF+4 is for newer Grand Cherokees and will cause shifting problems.
What If I Overfill The Transmission?
Overfilling can cause foaming, slipping, and overheating. If you’ve added too much, drain the excess fluid immediately.
Is The 2001 Cherokee Xj The Same As The Tj Or Grand Cherokee?
No. The XJ is a different platform from the TJ (Wrangler) or Grand Cherokee (WJ, WK, WL). Each uses different transmissions and fluid types.
For more technical details, visit the Jeep Cherokee XJ Wikipedia page.
Internal Link Suggestions
- Jeep XJ maintenance schedule
- How to change differential fluid in a Jeep
- Signs of a failing Jeep transmission
Caring for your 2001 Jeep Cherokee’s transmission is easier than you think. The right fluid and regular maintenance keep your SUV running strong for years. Stay informed, double-check your specs, and your Cherokee will reward you with reliable performance.
